111B7939

Part Number: 111B7939
111B7939
Manufacturer
Danfoss
Part number
111B7939
Category

Product Information

Extended Description

111B7939 Danfoss: Max. Working Pressure [bar]: 49.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Gross weight
8.13 Kilogram
Net weight
7.98 Kilogram
Volume
0.078 Hectoliter
EAN
5715162969465
Application
Chiller
Approval
AS,CE,CRN,EAC,UA,UL
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
With distributor
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
711 psi
Max. Working Pressure [bar]
49 bar
Model no.
62
Number of plates
40
Packing format
Single pack
PED category
II
Plate material no.
AISI 316L
Plate pattern
Z-J
Product group
Heat exchangers
Product Name Description

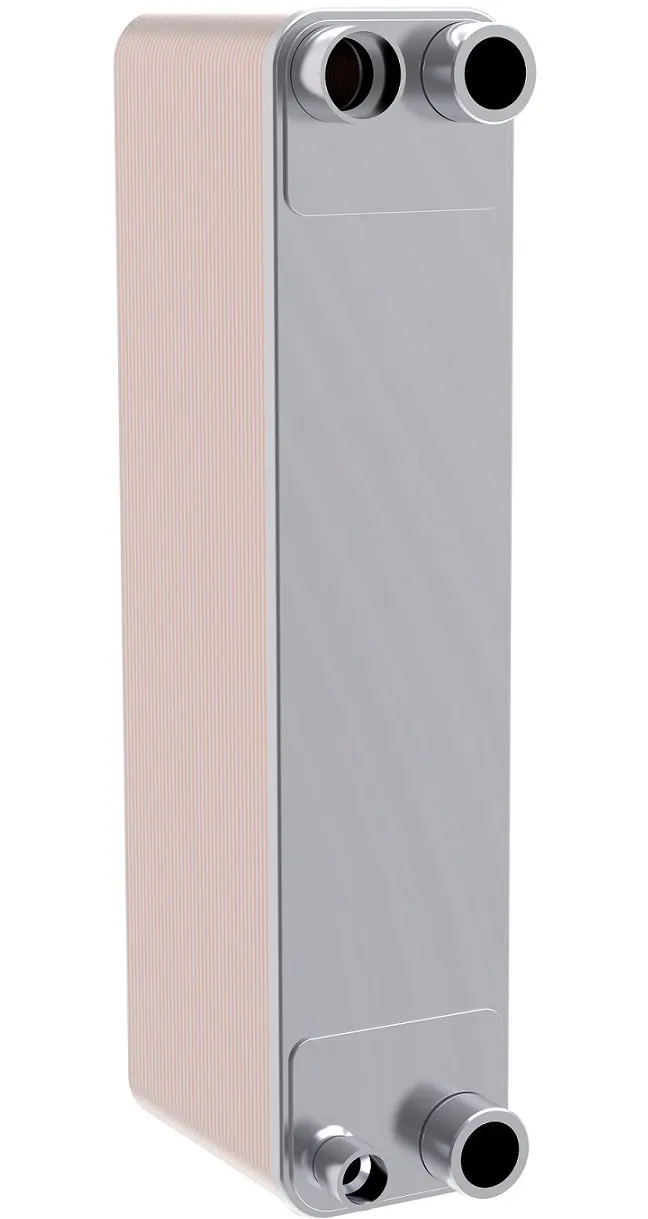

Micro Plate heat exchanger
Q1 conn. size range
R1 1/2"
Q1 conn. type
R External thread connection
Q2 conn. size range
R1 1/2"
Q2 conn. type
R External thread connection
Q3 conn. size range
H1/2D
Q3 conn. type
Solder connection
Q4 conn. size range
H3/4H
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze,R134a,R22,R245fa,R404A,R407C,R444B,R448A
Type
MPHE C62L-EZ-J
Type designation
C62L-EZ-J
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, Type C62L-EZ-J/K GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 BV CE-0062-PED-H-DAF 001-24-DNK BV CE-0062-PED-H-DMC 001-23-CHN-Rev.A Micro Plate heat exchanger_MPHE_PIC. P45
