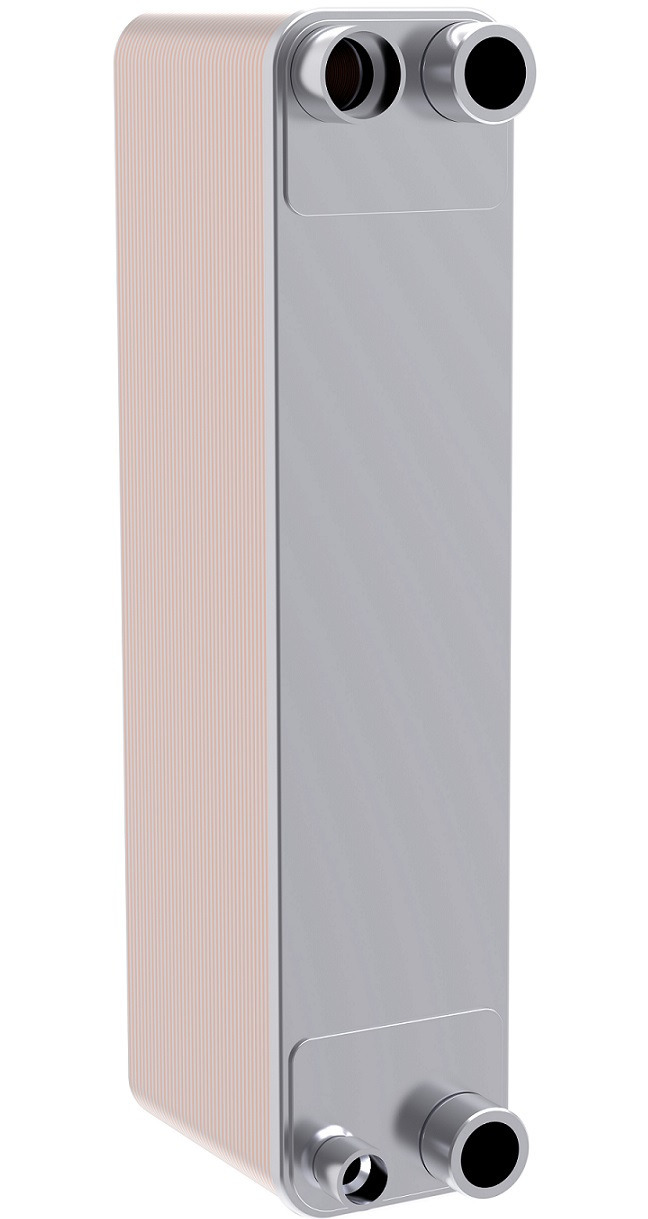

111B8372

Part Number: 111B8372
111B8372
Manufacturer
Danfoss
Part number
111B8372
Category

Product Information

Extended Description

111B8372 Danfoss: Max. Working Pressure [bar]: 49.0, Heat pump, Function: Condenser, Brazing material: Copper brazing
Gross weight
14.65 Kilogram
Net weight
14.5 Kilogram
Volume
10.376 Cubic decimeter
EAN
5715162897157
Application
Heat pump
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Condenser
Function note
Null
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
711 psi
Max. Working Pressure [bar]
49 bar
Model no.
62
Number of plates
90
Packing format
Single pack
PED category
II
Plate material no.
AISI 316L
Plate pattern
Z
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Q1 conn. size range
G1 1/4"-1 1/8"
Q1 conn. type
G External thread connection
Q2 conn. size range
G1 1/4"-1 1/8"
Q2 conn. type
G External thread connection
Q3 conn. size range
H1/2R
Q3 conn. type
Solder connection
Q4 conn. size range
H1"1/8J
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze,R134a,R22,R245fa,R290,R32,R404A,R407C,R410A,R444B,R448A,R449A,R450A,R452B,R454A,R454B,R454C,R455A,R507A,R513A,R515B
Type
MPHE H62L-CZ
Type designation
H62L-CZ
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Z-design MPHEs for chillers Economic and environmental savings in cooling Danfoss EU BF202407en-0001.01 BV CE-0062-PED-H-DAF 001-24-DNK BV CE-0062-PED-H-DMC 001-23-CHN-Rev.A Micro Plate heat exchanger_MPHE_PIC. P45
