111B8877

Part Number: 111B8877
111B8877
Manufacturer
Danfoss
Part number
111B8877
Category

Product Information

Extended Description

111B8877 Danfoss: Max. Working Pressure [bar]: 49.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Gross weight
1.36 Kilogram
Net weight
1.21 Kilogram
Volume
1.313 Cubic decimeter
EAN
5715162921944
Application
Chiller
Approval
AS,CRN,EAC,UA,UL
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Null
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
Null
H1 conn. size
Rc3/8
H1 conn. type
R Internal thread connection
H2 conn. size
Rc3/8
H2 conn. type
R Internal thread connection
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
711 psi
Max. Working Pressure [bar]
49 bar
Model no.
17
Number of plates
24
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
AISI 316L
Plate pattern
Z
Product group
Heat exchangers

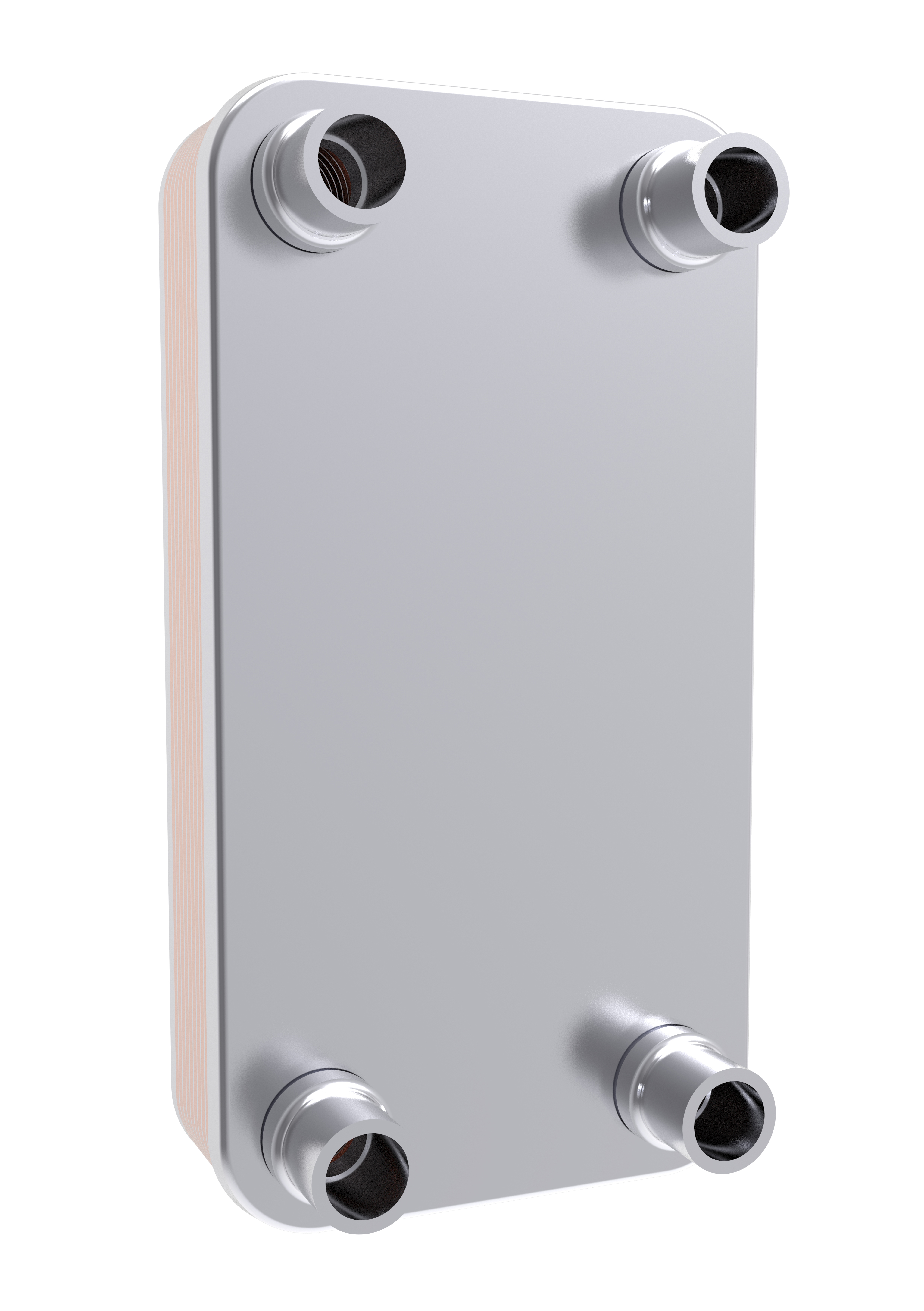

Product Name Description
Micro Plate heat exchanger
Q1 conn. size range
Null
Q1 conn. type
Null
Q2 conn. size range
Null
Q2 conn. type
Null
Q3 conn. size range
H1/4B
Q3 conn. type
Solder connection
Q4 conn. size range
H1/4B
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze,R134a,R22,R245fa,R404A,R407C,R444B,R448A
Type
MPHE C17L-EZ
Type designation
C17L-EZ
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger Type C17L-EZ and H17L-CZ GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 UL SA13363 NSW PDPRE7001747-24 MPHE C17L-EZ_111B6147_111B6148
