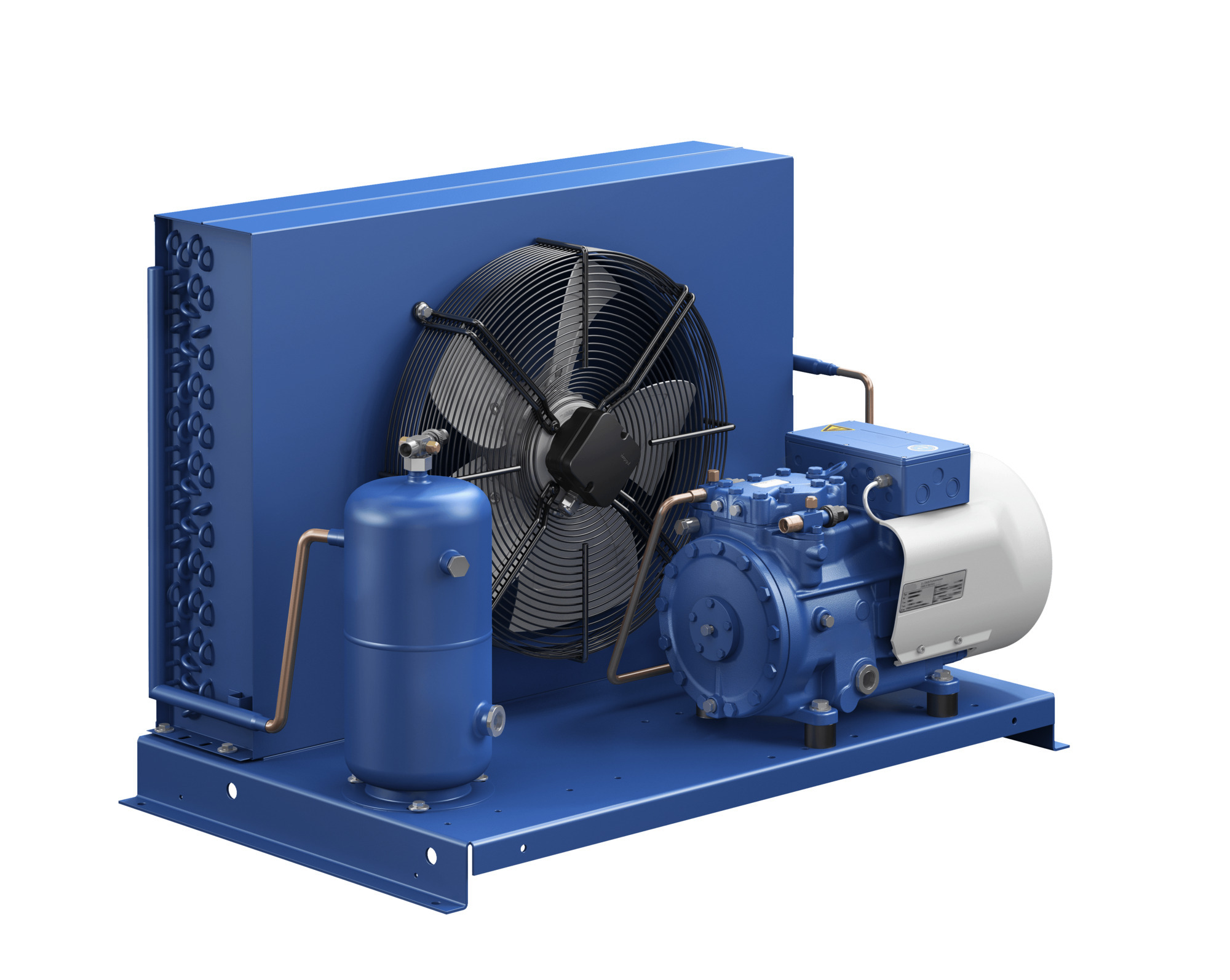

114D16049
Part Number: 114D16049
Product Information
Extended Description
114D16049 Danfoss: Refrigerants: R404A; R407A; R407F; R448A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Legacy BOCK ID: 16049
Gross weight
189.8 Kilogram
Net weight
155.1 Kilogram
Volume
1102.29 Liter
Air flow @ 50Hz [mÂł/h]
5900 mÂł/h
Air flow @ 60Hz [mÂł/h]
7000 mÂł/h
Anti-vibration pads
Yes
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Description
SHAX22e/190-4 L
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Dual HP/LP pressure switch
Yes
Family
SHA L
Fan power consumption @ 50Hz [W]
550 W
Fan power consumption @ 60Hz [W]
800 W
Frequency [Hz]
50 Hz
Hot gas temperature sensor
No
IP class
IP 44
Legacy BOCK ID
16049
Length [mm]
773 mm
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
SHAX22e/190-4 L
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Number of fans
1
Oil differential pressure sensor
No
Oil pressure safety switch
MP55 230V - 1 - 50/60 Hz, IP20
Oil separator
No
Oil sump heater
110-240 V - 1 – 50/60 Hz, 50 to 120 W, PTC self-regulating
Oil type
BOCKlub E55
Phase
3
Product group
Bock Semi-Hermetic Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A,R407A,R407F,R448A,R449A
Safety valve for receiver
No
Speed controller
No
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Bock Semi-Hermetic Condensing Unit
Total height [mm]
746 mm
Type
SHAX22
Width [mm]
1076 mm
