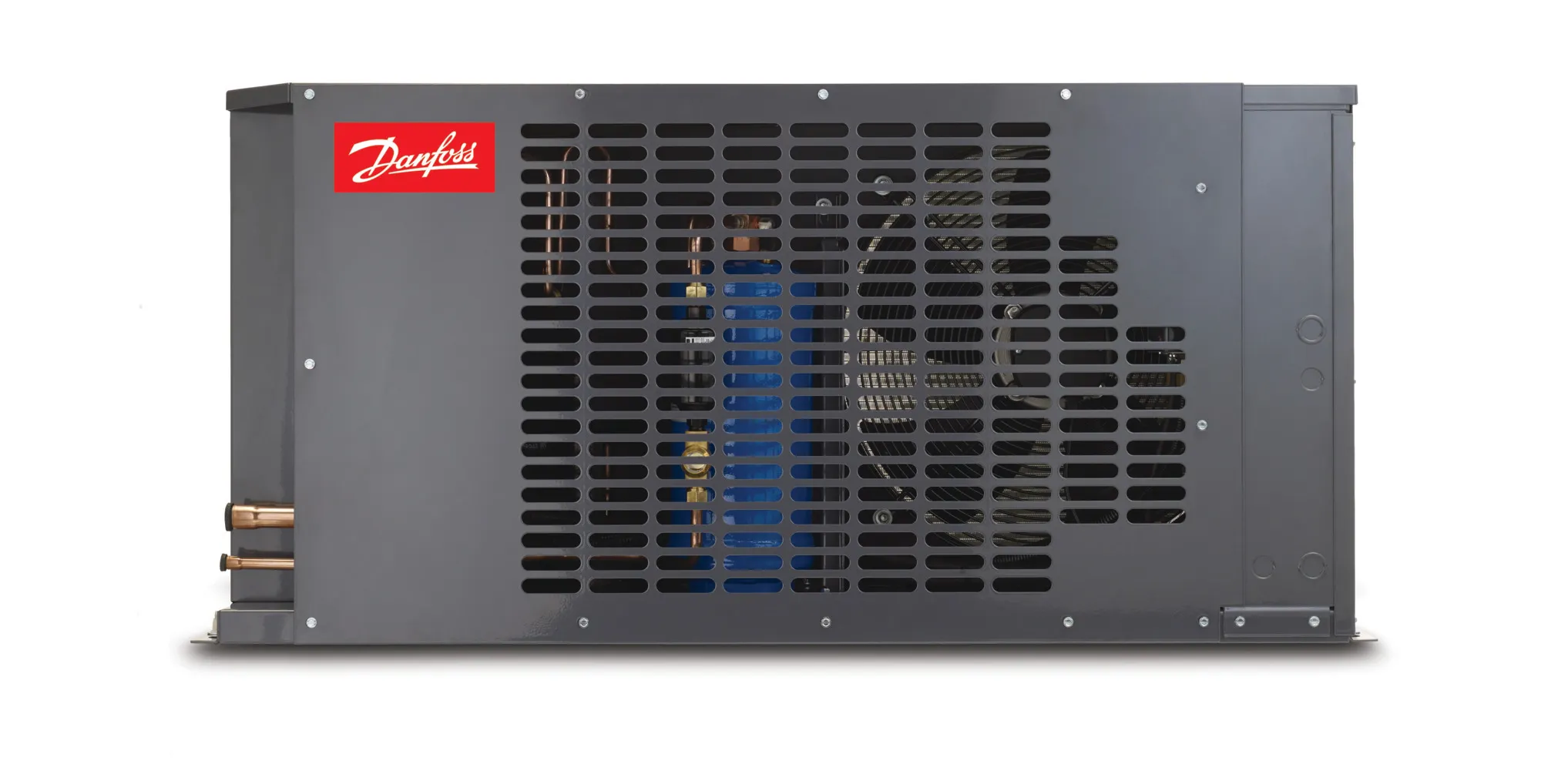

114N3485
Part Number: 114N3485
Product Information
Extended Description
114N3485 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R448A; R449A, Compressor power supply [V]: 230/1/60
Gross weight
64 Kilogram
Net weight
55 Kilogram
Volume
192.955 Liter
EAN
5702428509053
Air flow @ 60Hz [mÂł/h]
2400 mÂł/h
Applications
MBP
Approval
UL listed
AWEF application
Outdoor
AWEF displayed
Yes
China RoHS compliance
Out of scope
Compressor model
MTZ018-1VM
Compressor power supply [V]
230/1/60
Condenser type
D8
Contain batteries
No
Description
OP-HJXM0150UWG000N
Electrical code
N
EU RoHS compliance
Out of scope
Family
Optyma™ Slim
Fan blade size [mm]
350 mm
Fan current @ 60Hz [A]
1 A
Fan diameter [mm]
350 mm
Fan power consumption @ 60Hz [W]
240 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan voltage @ 60Hz (max) [V] [Max]
230 V
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
HJZM0150UWG000N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Phases of Compressor
1
Phases of Fan
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim WG
UK RoHS compliance
Out of scope
UL evaluated
Yes
Version
WG
Voltage 60Hz [V]
208 V
Voltage 60Hz [V] [Max]
252 V
119-4529
Electrical component, Capacitor
119-4551
Connector, Service valve
119-5640
Electrical component, Contactor
MTZ18-1VI
Reciprocating compressor, MTZ18JA1AVE
119-5617
Electrical component, Capacitor
119-4531
Tank, Receiver
119-4536
Condenser, D8
119-4544
Connector, Service valve
119-4654
Electrical component, Capacitor
120Z0638
Lubricant, 175PZ
120Z0575
Acoustic hood, Reciprocating
