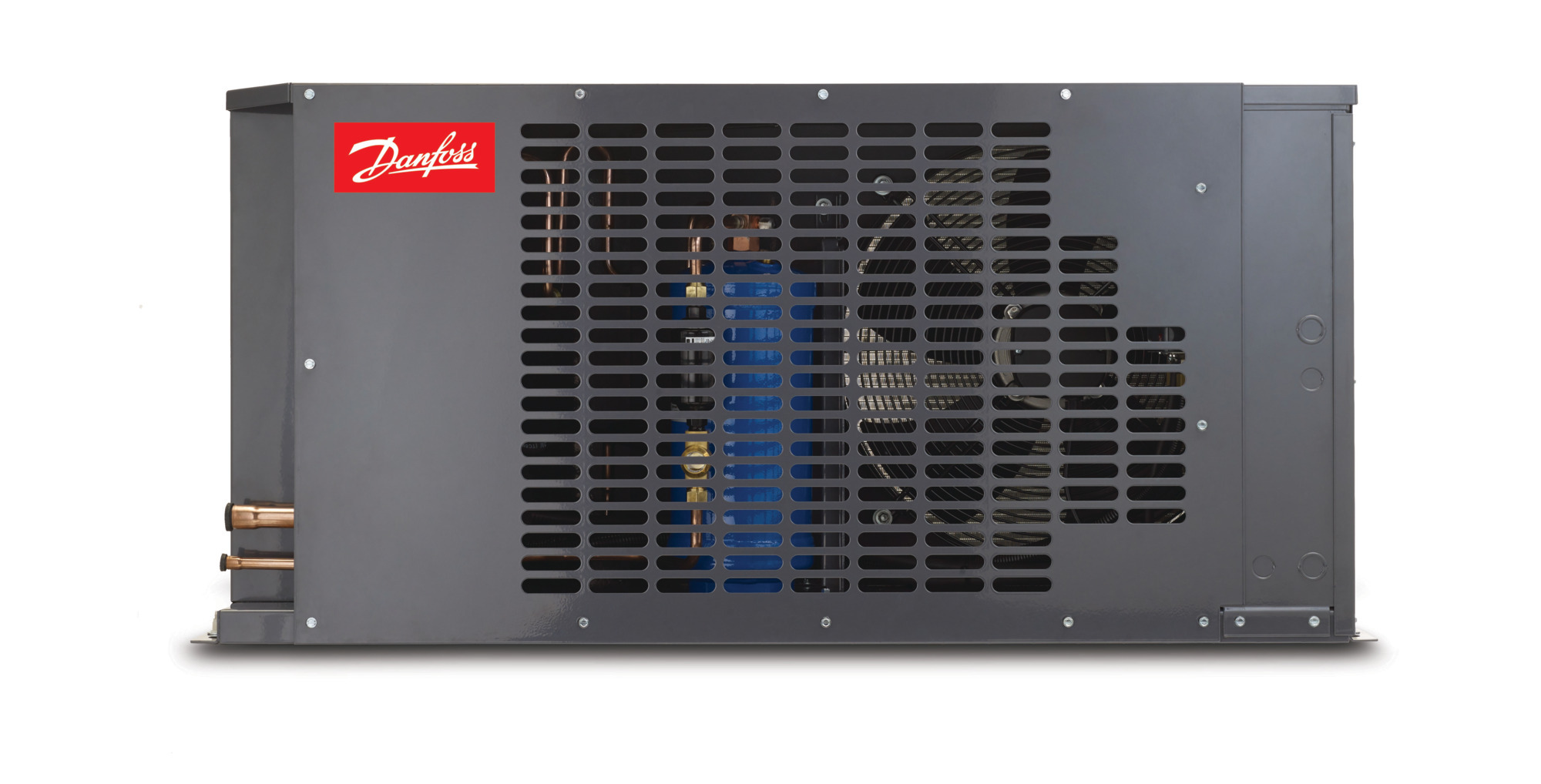

114N3487
Part Number: 114N3487
Product Information
Extended Description
114N3487 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R448A; R449A, Compressor power supply [V]: 230/1/60
Gross weight
115 Kilogram
Net weight
103 Kilogram
Volume
295.432 Liter
EAN
5702428509039
Air flow @ 60Hz [mÂł/h]
4600 mÂł/h
Applications
MBP
Approval
UL listed
AWEF application
Outdoor
AWEF displayed
Yes
China RoHS compliance
Out of scope
Compressor model
MLZ015T1
Compressor power supply [V]
230/1/60
Condenser type
G8
Contain batteries
No
Description
OP-HNXM0200UWG000N
Electrical code
N
EU RoHS compliance
Out of scope
Family
Optyma™ Slim
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
1.97 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan voltage @ 60Hz (max) [V] [Max]
230 V
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
HNXM0200UWG000N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Phases of Compressor
1
Phases of Fan
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Scroll
Type
Optyma™ Slim WG
UK RoHS compliance
Out of scope
UL evaluated
Yes
Version
WG
Voltage 60Hz [V]
208 V
Voltage 60Hz [V] [Max]
252 V
119-8775
Electrical component, Capacitor
119-8780
Electrical component, Starting relay
119-4545
Connector, Service valve
119-5640
Electrical component, Contactor
119-4548
Connector, Service valve
121L8709
Scroll compressor, MLZ015T1LT9A
119-5618
Electrical component, Capacitor
119-4537
Condenser, G8
119-4530
Electrical component, Capacitor
119-4567
Electrical component, Starting relay
120Z5083
Acoustic hood, Scroll
Convenience Store_CU Brochure
Danfoss Optyma Slim Cut Sheet
2024 Quick Select Guide - Refrigeration and Air Conditioning Components
Optyma™ condensing units
Installation and maintenance condensing unit manual
UL SA8426
Optyma™ Slim Front Closed Shadow
OP-HNXM0200UWG000N/Q - OP-HNXM0250UWG000N/Q - OP-HNXM0300UWG000N/Q
