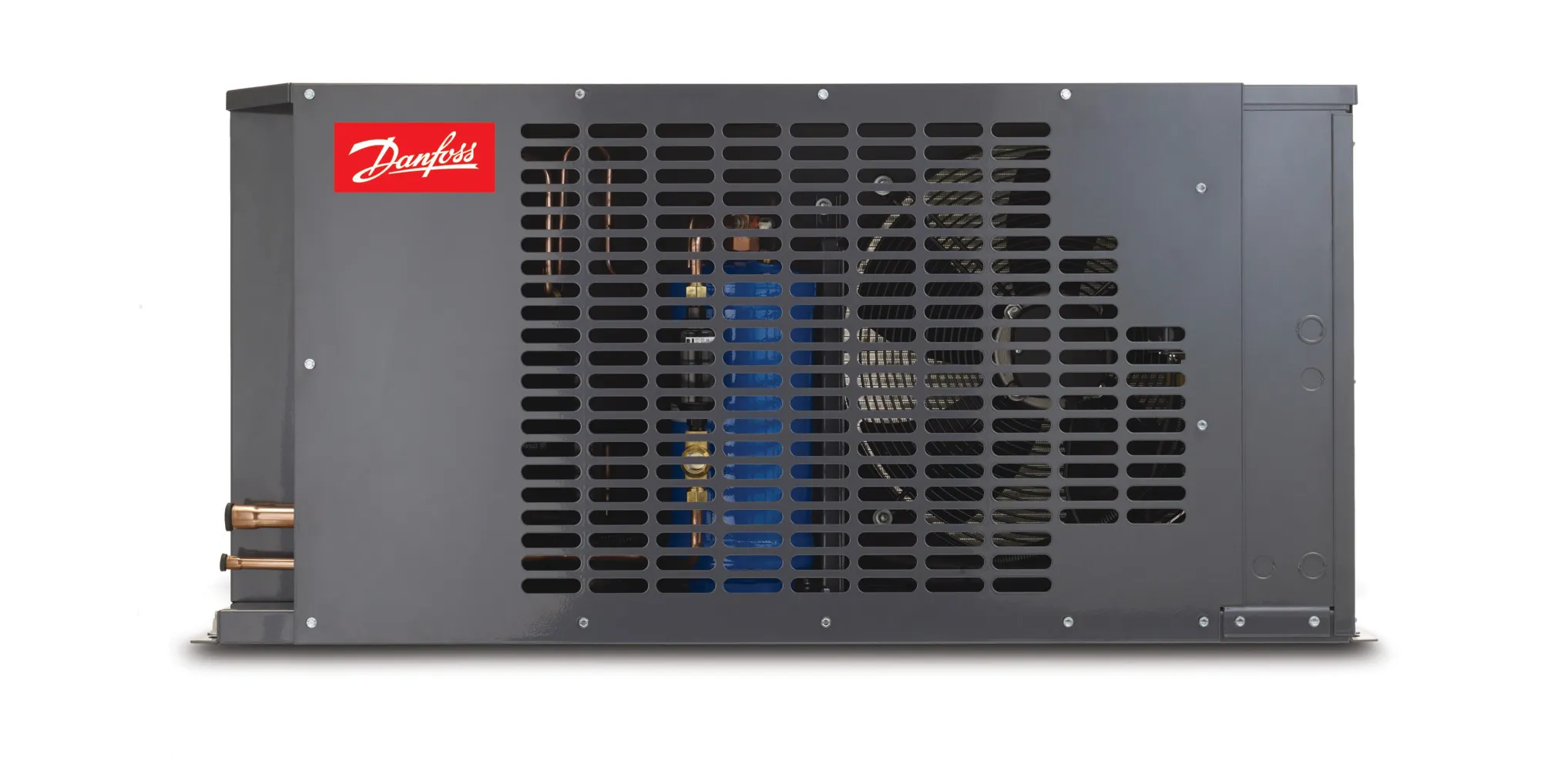

114N3496
Part Number: 114N3496
Product Information
Extended Description
114N3496 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R448A; R449A, Compressor power supply [V]: 230/3/60
Gross weight
136 Kilogram
Net weight
123 Kilogram
Volume
372.931 Liter
EAN
5702428508940
Air flow @ 60Hz [mÂł/h]
5000 mÂł/h
Applications
MBP
Approval
UL listed
AWEF application
Outdoor
AWEF displayed
Yes
China RoHS compliance
Out of scope
Compressor model
MLZ030T2
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-HNXM0400UWG000Q
Electrical code
Q
EU RoHS compliance
Out of scope
Family
Optyma™ Slim
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
1.97 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan voltage @ 60Hz (max) [V] [Max]
230 V
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
HNXM0400UWG000Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Phases of Compressor
3
Phases of Fan
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Scroll
Type
Optyma™ Slim WG
UK RoHS compliance
Out of scope
UL evaluated
Yes
Version
WG
Voltage 60Hz [V]
208 V
Voltage 60Hz [V] [Max]
252 V
121L8765
Scroll compressor, MLZ030T2LQ9A
119-4551
Connector, Service valve
119-4545
Connector, Service valve
119-4538
Condenser, J8
119-5640
Electrical component, Contactor
120Z0648
Lubricant, 215PZ
119-4567
Electrical component, Starting relay
119-4533
Tank, Receiver
119-4530
Electrical component, Capacitor
119-4548
Connector, Service valve
120Z5084
Acoustic hood, Scroll
