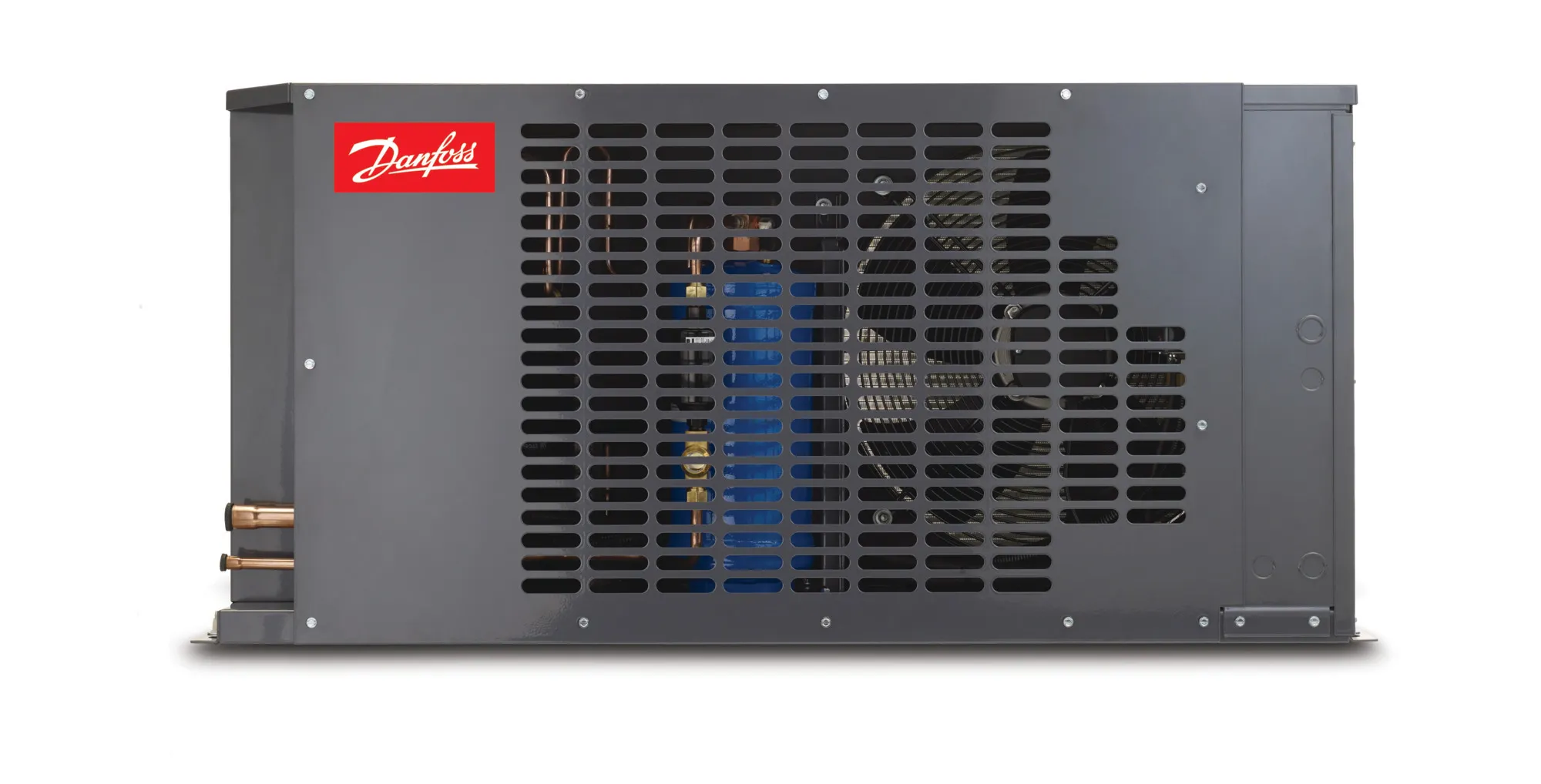

114N3508
Part Number: 114N3508
Product Information
Extended Description
114N3508 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A, Compressor power supply [V]: 230/1/60
Gross weight
85 Kilogram
Net weight
76 Kilogram
Volume
197.426 Liter
EAN
5702428657594
Air flow @ 60Hz [mÂł/h]
2400 mÂł/h
Applications
LBP
Approval
UL listed
AWEF application
Outdoor
AWEF displayed
Yes
China RoHS compliance
Out of scope
Compressor model
NTZ048-1
Compressor power supply [V]
230/1/60
Condenser type
D8
Contain batteries
No
Description
OP-LJHM0150UWH000N
Electrical code
N
EU RoHS compliance
Out of scope
Family
Optyma™ Slim
Fan blade size [mm]
350 mm
Fan current @ 60Hz [A]
1 A
Fan diameter [mm]
350 mm
Fan power consumption @ 60Hz [W]
240 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan voltage @ 60Hz (max) [V] [Max]
230 V
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
LJHM0150UWH000N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
Refrigerants
R404A,R452A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim WH
UK RoHS compliance
Out of scope
UL evaluated
Yes
Version
WH
Voltage 60Hz [V]
208 V
Voltage 60Hz [V] [Max]
252 V
119-5616
Electrical component, Starting relay
120F0293
Reciprocating compressor, NTZ048A1LR1B
119-4544
Connector, Service valve
119-4529
Electrical component, Capacitor
119-4531
Tank, Receiver
119-4536
Condenser, D8
119-4545
Connector, Service valve
120Z0638
Lubricant, 175PZ
120Z0459
Crankcase heater, PTC heater
119-5640
Electrical component, Contactor
120Z0575
Acoustic hood, Reciprocating
