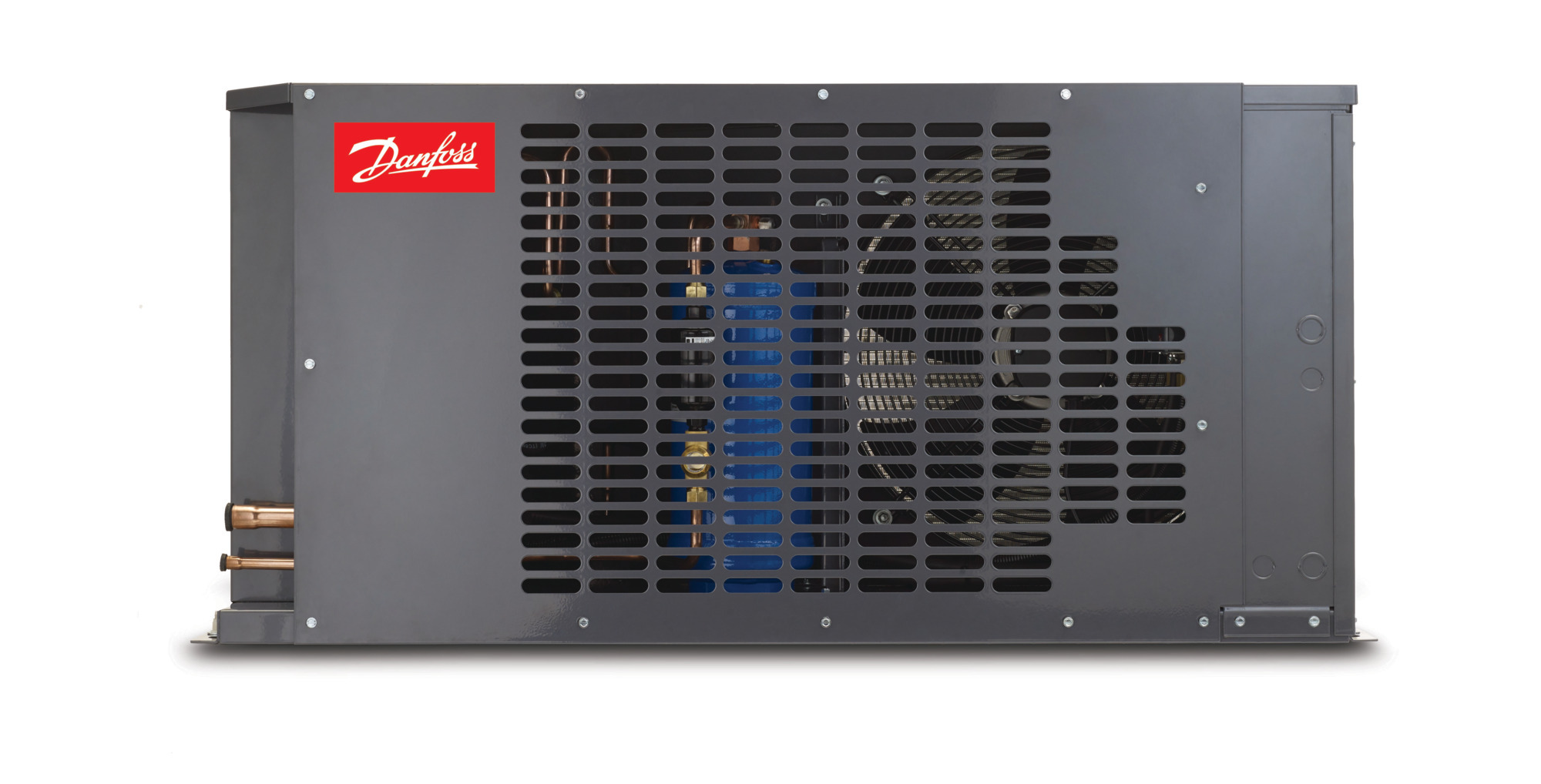

114N3521
Part Number: 114N3521
Product Information
Extended Description
114N3521 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R448A; R449A, Compressor power supply [V]: 460/3/60
Gross weight
287 Kilogram
Net weight
269 Kilogram
Volume
1240.962 Liter
EAN
5702424056285
Air flow @ 60Hz [mÂł/h]
14000 mÂł/h
Applications
MBP
Approval
UL listed
AWEF application
Outdoor
AWEF displayed
Yes
Capacity control
Fixed speed
China RoHS compliance
Out of scope
Compressor model
MLZ058T4A
Compressor power supply [V]
460/3/60
Condenser type
Q8
Contain batteries
No
Description
OP-HRXM0750UWG000R
Electrical code
R
EU RoHS compliance
Out of scope
Family
Optyma™ Slim
Fan blade size [mm]
559 mm
Fan current @ 60Hz [A]
2 A
Fan diameter [mm]
145 mm
Fan power consumption @ 60Hz [W]
688 W
Fan power output @ 60Hz [W]
559 W
Fan power supply [V/Ph/Hz]
460/1/60
Fan voltage @ 60Hz (max) [V] [Max]
480 V
Fan voltage @ 60Hz (max) [V] [Min]
440 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 60Hz [V]
440 V
MCC
20 A
Model number
OP-HRXM0750UWG000R
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
Receiver approval
UL
Receiver volume [L]
14 L
Refrigerants
R134a,R404A,R448A,R449A,R452A
RLA
12.8 A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ Slim WG
UK RoHS compliance
Out of scope
UL evaluated
Yes
Version
WG
Voltage 60Hz [V]
440 V
119-8687
Electrical component, Transformer
119-4567
Electrical component, Starting relay
119-4548
Connector, Service valve
119-4535
Tank, Receiver
119-8688
Condenser, Q8
119-4550
Connector, Service valve
119-5639
Electrical component, Contactor
121L8819
Scroll compressor, MLZ058T4LQ9A
120Z0648
Lubricant, 215PZ
119-4551
Connector, Service valve
120Z5085
Acoustic hood, Scroll
