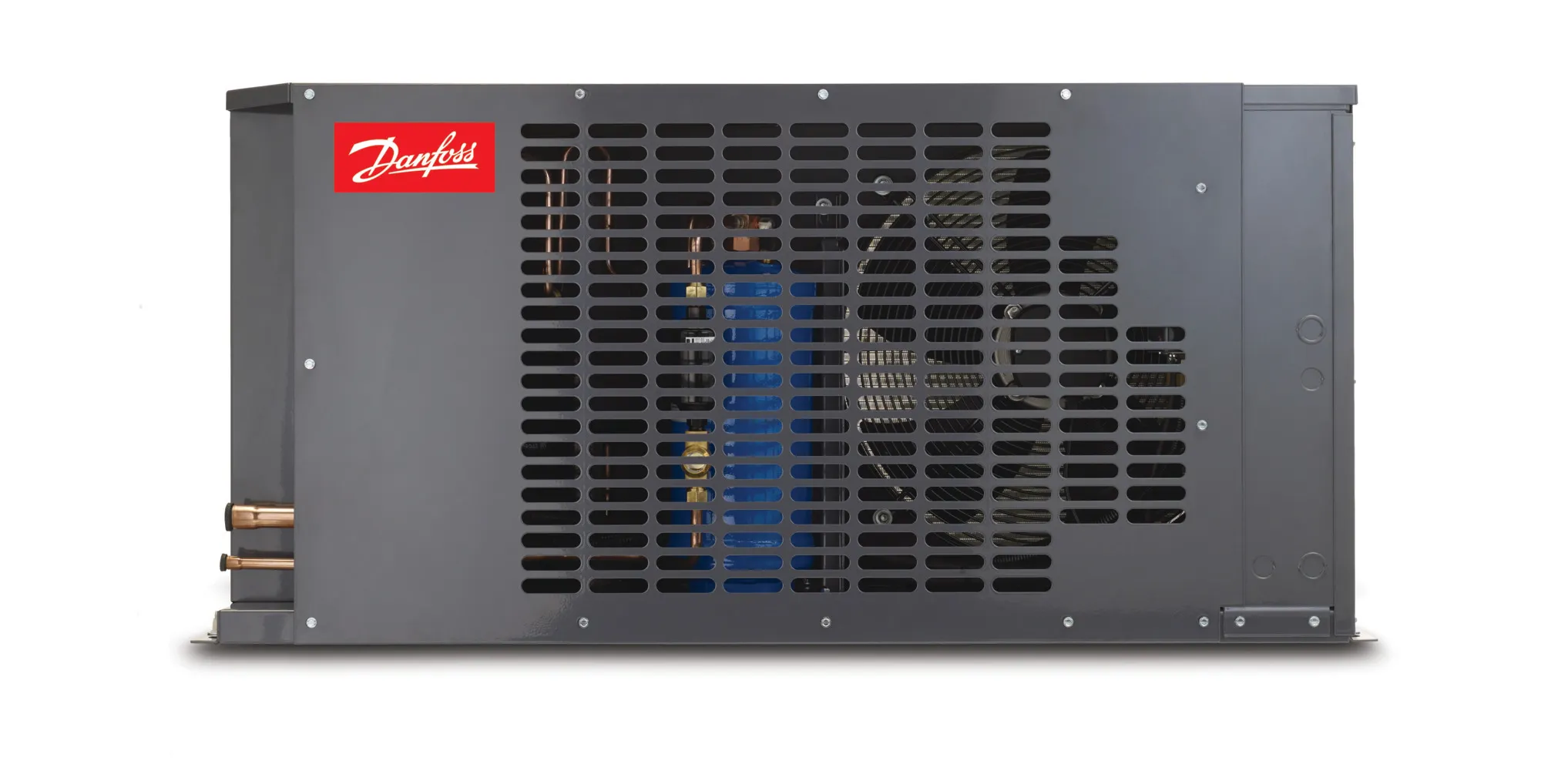

114N3523
Part Number: 114N3523
Product Information
Extended Description
114N3523 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A; R448A; R449A, Compressor power supply [V]: 460/3/60
Gross weight
110 Kilogram
Net weight
101 Kilogram
Volume
743.521 Liter
EAN
5702424056247
Air flow @ 60Hz [mÂł/h]
9200 mÂł/h
Applications
LBP
Approval
UL listed
AWEF application
Outdoor
AWEF displayed
Yes
Capacity control
Fixed speed
China RoHS compliance
Out of scope
Compressor model
LLZ018T4A
Compressor power supply [V]
460/3/60
Condenser type
N8
Contain batteries
No
Description
OP-LRYM0600UWH000R
Electrical code
R
EU RoHS compliance
Out of scope
Family
Optyma™ Slim
Fan blade size [mm]
457 mm
Fan current @ 60Hz [A]
1.5 A
Fan diameter [mm]
145 mm
Fan power consumption @ 60Hz [W]
311 W
Fan power output @ 60Hz [W]
373 W
Fan power supply [V/Ph/Hz]
460/1/60
Fan voltage @ 60Hz (max) [V] [Max]
480 V
Fan voltage @ 60Hz (max) [V] [Min]
440 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 60Hz [V]
440 V
MCC
16 A
Model number
OP-LRYM0600UWH000R
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
Receiver approval
UL
Receiver volume [L]
14 L
Refrigerants
R404A,R452A,R448A,R449A
RLA
10
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ Slim WH
UK RoHS compliance
Out of scope
UL evaluated
Yes
Version
WH
Voltage 60Hz [V]
440 V
119-4535
Tank, Receiver
119-4539
Condenser, N8
119-4548
Connector, Service valve
119-4551
Connector, Service valve
119-4567
Electrical component, Starting relay
119-5640
Electrical component, Contactor
119-8687
Electrical component, Transformer
120Z0648
Lubricant, 215PZ
121L9539
Scroll compressor, LLZ018T4LQ9A
191U137850
Fan system, Fan motor
120Z5052
Acoustic hood, Scroll
