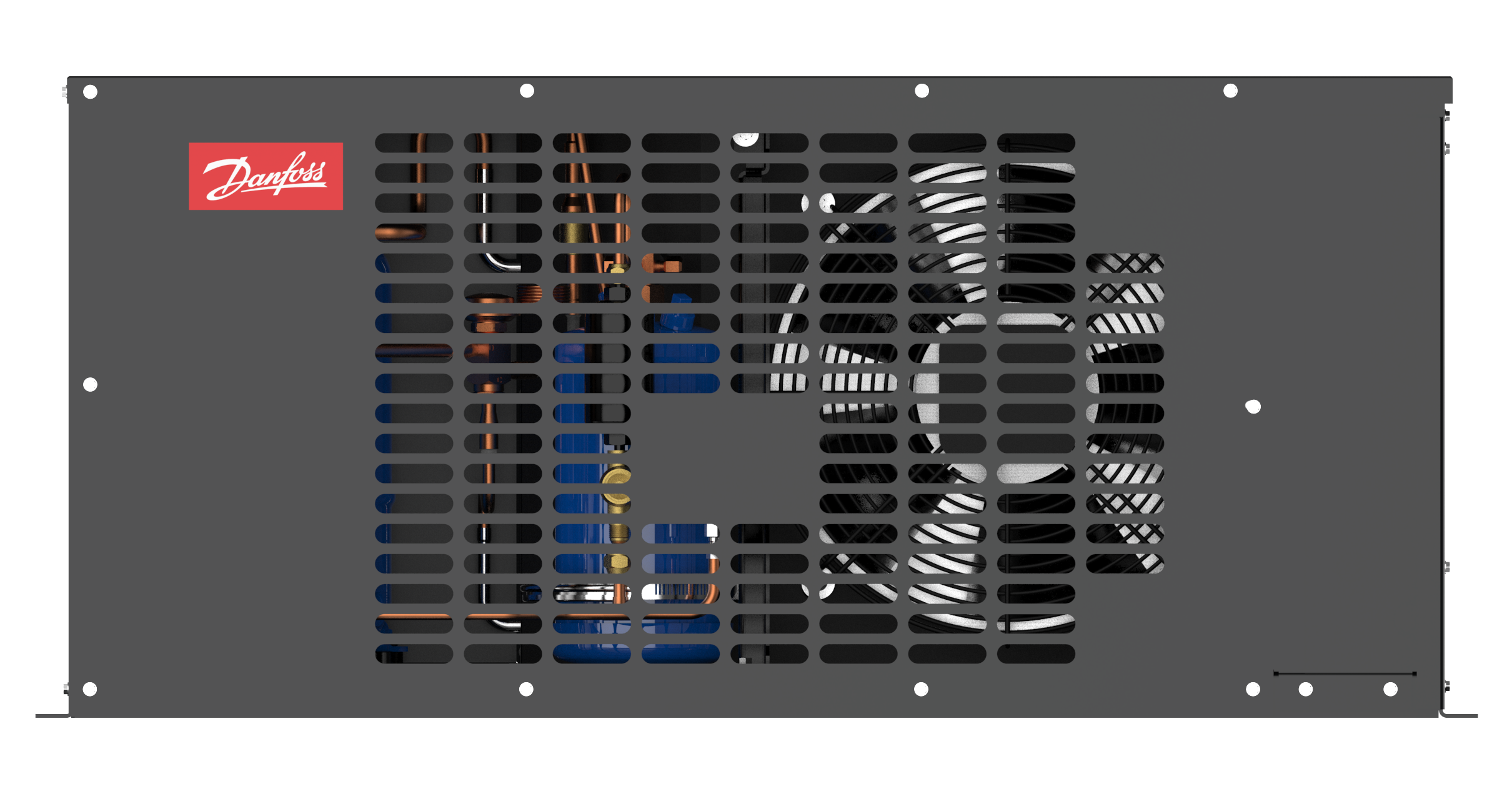

114N3576
Part Number: 114N3576
Product Information
Extended Description
114N3576 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R448A; R449A, Compressor power supply [V]: 230/3/60
Gross weight
84 Kilogram
Net weight
78 Kilogram
Volume
197.426 Liter
Air flow @ 60Hz [mÂł/h]
2400 mÂł/h
Applications
MBP
Approval
UL listed
Compressor model
MTZ18-3VI
Compressor power supply [V]
230/3/60
Condenser type
D8
Contain batteries
No
Description
OP-HJZM0150UWK000Q
Electrical code
Q
Family
Optyma™ Slim
Fan blade size [mm]
350 mm
Fan current @ 60Hz [A]
1 A
Fan diameter [mm]
350 mm
Fan power consumption @ 60Hz [W]
240 W
Fan power output @ 60Hz [W]
240 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HJZM0150UWK000Q
Number of fans
1
Phase
3
Phases of Compressor
3
Phases of Fan
1
Product group
Condensing Units
Product Name Description
Package unit
Refrigerants
R448A,R449A,R134a,R404A,R452A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ Slim WK
UL evaluated
Yes
Version
WK
119-4529
Electrical component, Capacitor
119-4531
Tank, Receiver
119-4536
Condenser, D8
119-4544
Connector, Service valve
119-4545
Connector, Service valve
119-4551
Connector, Service valve
119-5640
Electrical component, Contactor
119-9436
Temperature sensor, Thermal switch
119-9437
Electrical component, Overload relay
119-9438
Electrical component, Defrost timer
