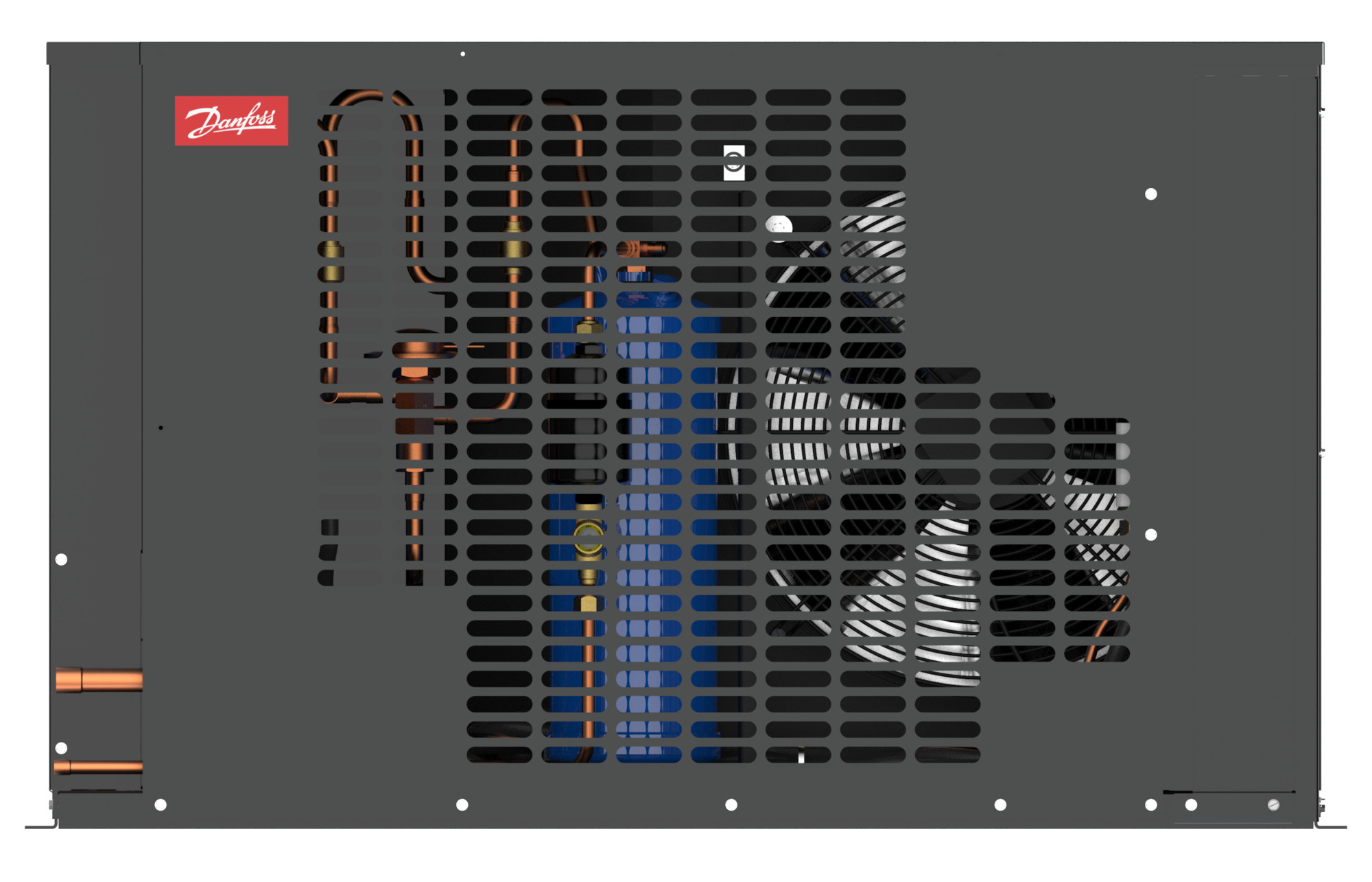

114N3584

Part Number: 114N3584
114N3584
Manufacturer
Danfoss
Part number
114N3584
Category

Product Information

Extended Description

114N3584 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R448A; R449A, Compressor power supply [V]: 230/3/60
Gross weight
115 Kilogram
Net weight
103 Kilogram
Volume
366.888 Liter
Air flow @ 60Hz [mÂł/h]
5000 mÂł/h
Applications
MBP
Approval
UL listed
Compressor model
MLZ026T2A
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-HNXM0350UWK000Q
Electrical code
Q
Family
Optyma™ Slim
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
1.97 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power output @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HNXM0350UWK000Q
Number of fans
1
Phase
3
Phases of Compressor
3
Phases of Fan
1
Product group
Condensing Units
Product Name Description
Package unit
Refrigerants
R448A,R449A,R134a,R404A,R452A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ Slim WK
UL evaluated
Yes
Version
WK
119-4530
Electrical component, Capacitor
119-4533
Tank, Receiver
119-4538
Condenser, J8
119-4545
Connector, Service valve
119-4548
Connector, Service valve
119-4551
Connector, Service valve
119-4567
Electrical component, Starting relay
119-5639
Electrical component, Contactor
119-8254E
Fan system, Fan motor
119-9436
Temperature sensor, Thermal switch
Convenience Store_CU Brochure Optyma™ condensing units Installation and maintenance condensing unit manual UL SA8426 OP-HNXM0350UWK000N - OP-HNXM0350UWK000Q - OP-HNXM0400UWK000N - OP-HNXM0400UWK000Q OP-HNXM0350UWK000N - OP-HNXM0350UWK000Q - OP-HNXM0400UWK000N - OP-HNXM0400UWK000Q OP-HNXM0350UWK000N - OP-HNXM0350UWK000Q - OP-HNXM0400UWK000N - OP-HNXM0400UWK000Q Slim - Low Ambient Family J8 OP-HNXM0350UWK000N - OP-HNXM0350UWK000Q - OP-HNXM0400UWK000N - OP-HNXM0400UWK000Q OP-HNXM0350UWK000N - OP-HNXM0350UWK000Q - OP-HNXM0400UWK000N - OP-HNXM0400UWK000Q
