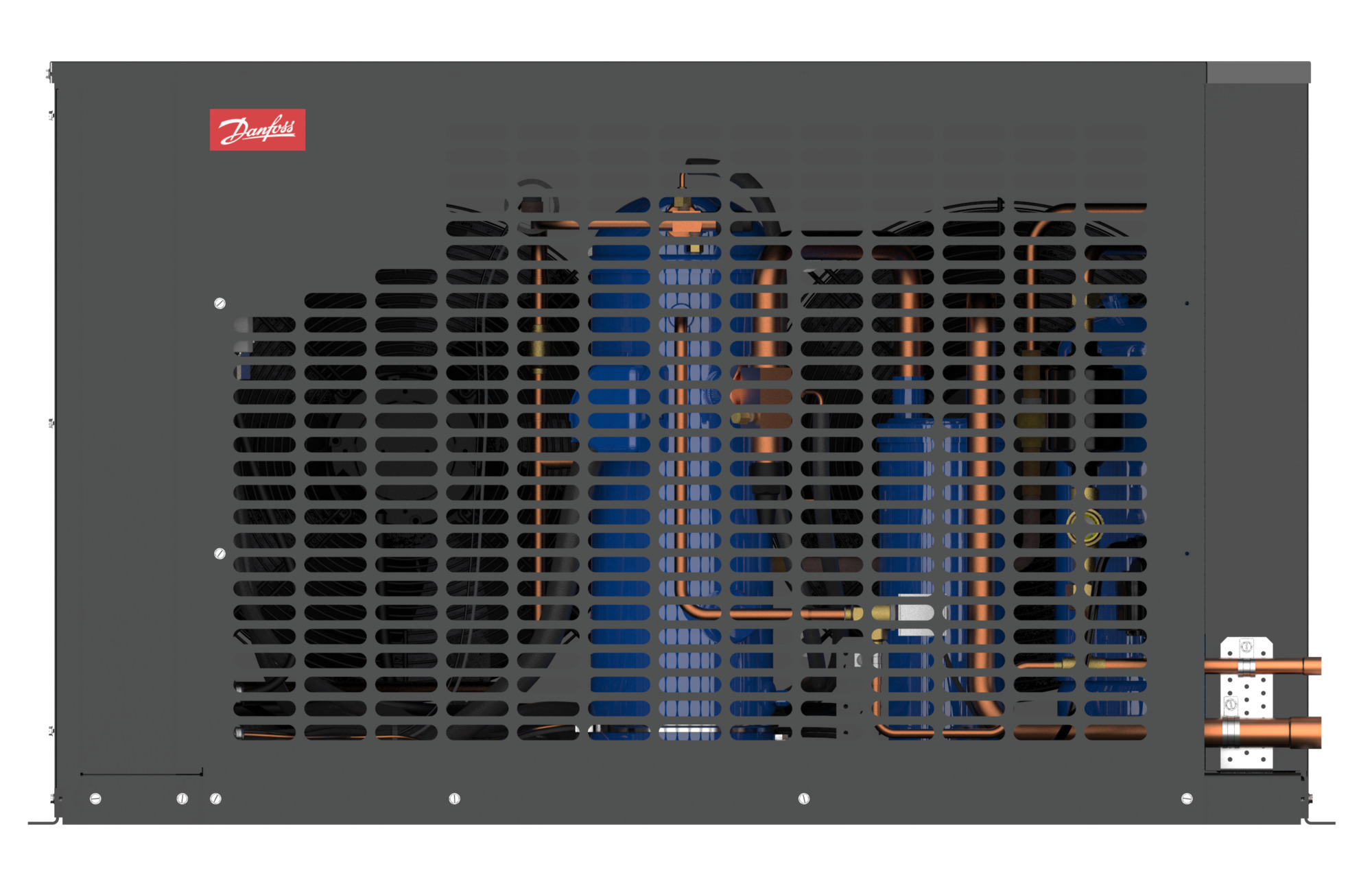

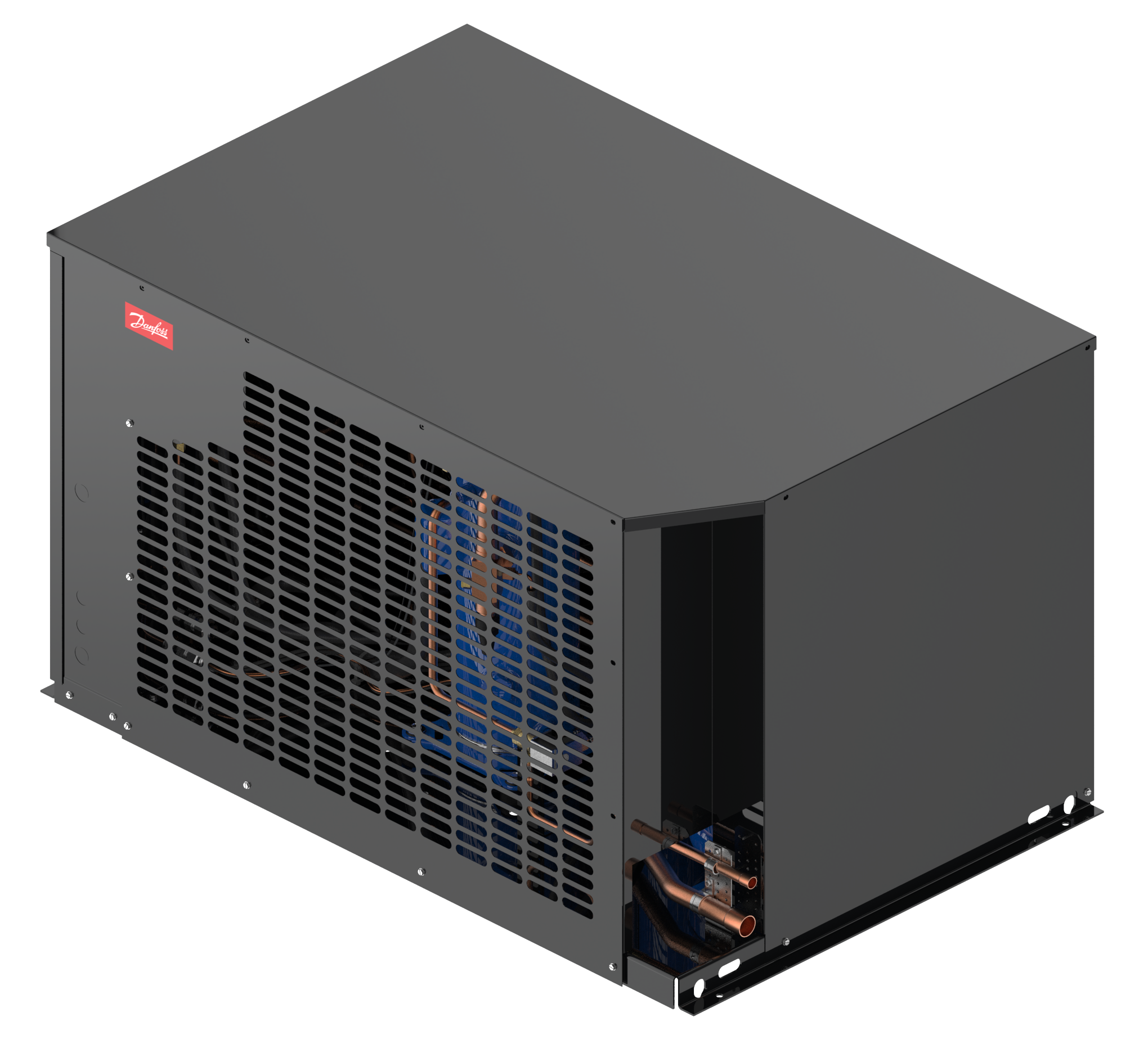

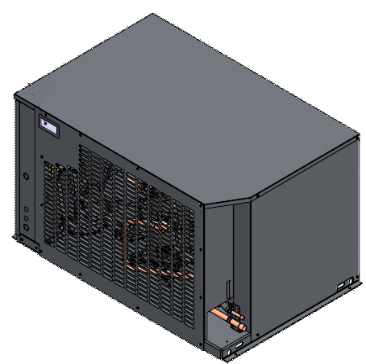

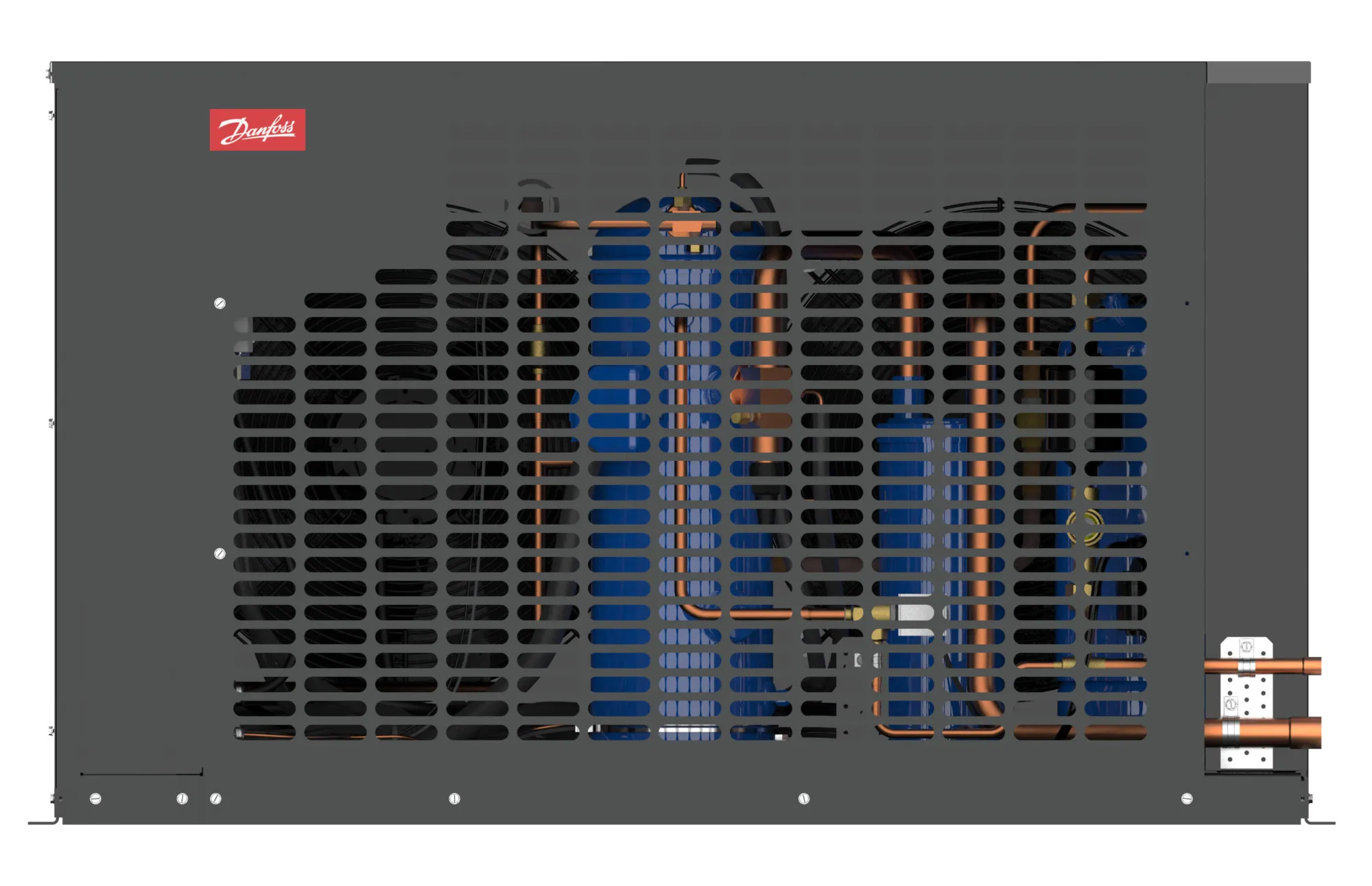

114N3597
Part Number: 114N3597
Product Information
Extended Description
114N3597 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A; R448A; R449A, Compressor power supply [V]: 230/3/60
Gross weight
182 Kilogram
Net weight
167 Kilogram
Volume
743.521 Liter
Air flow @ 60Hz [mÂł/h]
8540 mÂł/h
Applications
LBP
Approval
UL listed
Compressor model
LLZ024T2A
Compressor power supply [V]
230/3/60
Condenser type
N8
Contain batteries
No
Description
OP-LRYM0800UWL000Q
Electrical code
Q
Family
Optyma™ Slim
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
2.1 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
430 W
Fan power output @ 60Hz [W]
430 W
Fan power supply [V/Ph/Hz]
220/1/60
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-LRYM0800UWL000Q
Number of fans
2
Phase
3
Phases of Compressor
3
Phases of Fan
1
Product group
Condensing Units
Product Name Description
Package unit
Refrigerants
R448A,R449A,R404A,R452A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ Slim WL
UL evaluated
Yes
Version
WL
119-4535
Tank, Receiver
119-4546
Connector, Service valve
119-4550
Connector, Service valve
119-4551
Connector, Service valve
119-4567
Electrical component, Starting relay
119-5639
Electrical component, Contactor
119-8773E
Fan system, Fan motor
119-9147
Condenser, N8
120Z0138
Crankcase heater, Crankcase heater
120Z0648
Lubricant, 215PZ
