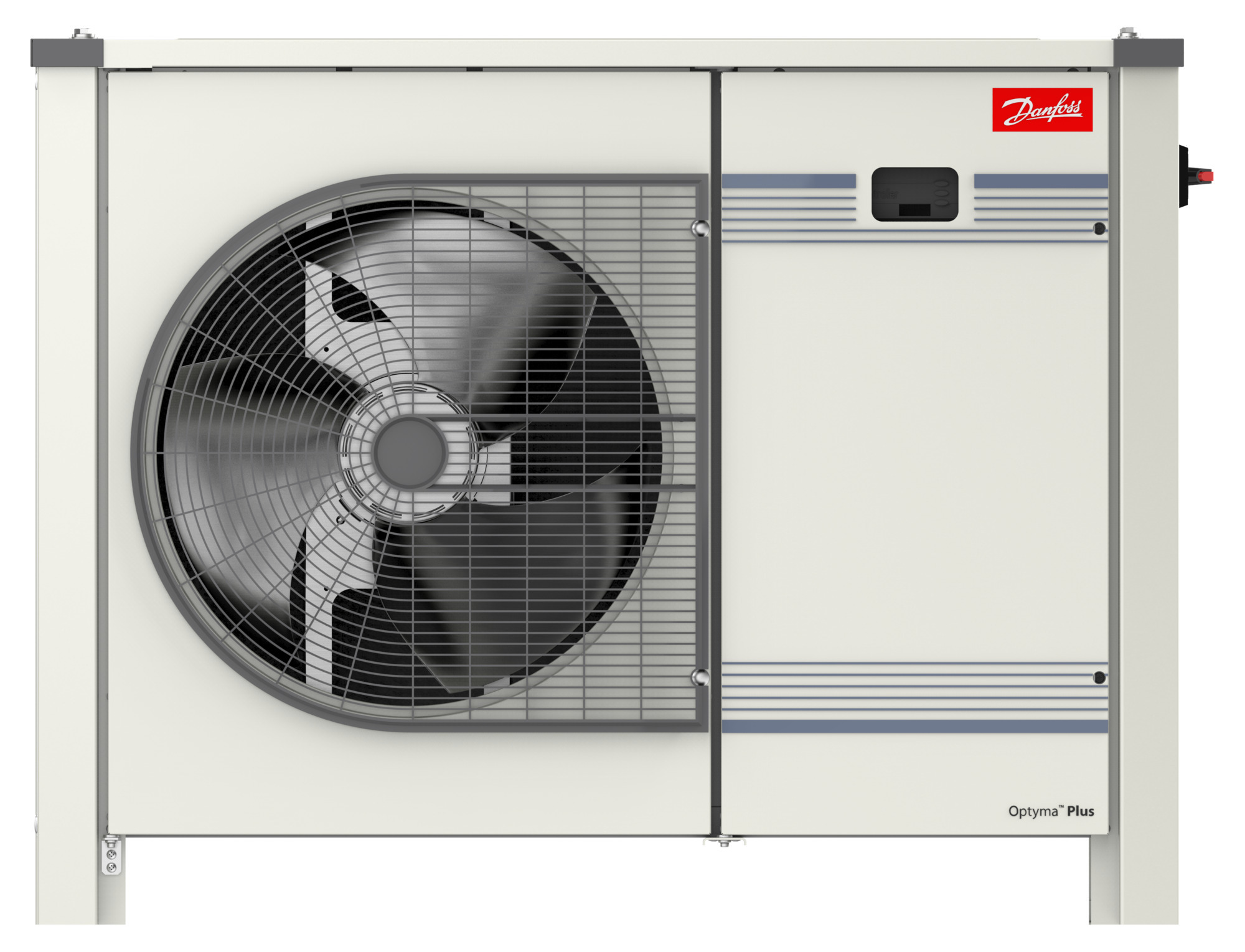

114X3233
Part Number: 114X3233
Product Information
Extended Description
114X3233 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
Gross weight
102 Kilogram
Net weight
80 Kilogram
Volume
628.992 Liter
EAN
5702428565066
Air flow @ 50Hz [mÂł/h]
3300 mÂł/h
Applications
LBP
China RoHS compliance
Out of scope
Compressor model
NTZ048-4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
0.58 L
Condenser type
D7
Connection type
Solder
Contain batteries
No
Description
OP-LPQM048NTP00E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
450 mm
Fan cowl/grill type
H2
Fan current @ 50Hz [A]
0.47 A
Fan diameter [mm]
450 mm
Fan power consumption @ 50Hz [W]
110 W
Fan power output @ 50Hz [W]
68 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
In scope of WEEE
Yes
LBP Cooling capacity [kW] (R452A)
1.1 kW
LBP Cooling capacity range [kW] (R452A)
0.4 to 1.6 kW
Length [mm]
480 mm
Liquid line connection [in]
3/8 in
Low value of nominal voltage at 50Hz [V]
380 V
LRA
16 A
MBP Cooling capacity range [kW] (R449A)
Not available for this condition / refrigerant
MCC
4.8 A
Min fuse rating [A]
6 A
Model number
OP-LPQM048NTP00E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
3.4 L
Refrigerants
R404A,R452A,R507A
RLA
3.4 A
SCIP dossier no.
1f4f6787-26f3-4d07-9441-e571b9dc25ef
SCIP dossier product name
OPTYMA P00 A7 D7
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
70 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
59 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
39 dBA
Suction connection size [in]
5/8 in
Technology
Reciprocating
Total height [mm]
813 mm
Type
Optyma™ Plus P00
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1090 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3297
Electrical component, Capacitor
118U3465
Electrical component, Controller
118U3481
Fan system, Fan blade
118U3484
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
Optyma™ Packaged condensing units
Convenience Store_CU Brochure
Optyma multi-refrigerant A2L-ready ranges_eBrochure
Optyma™ condensing units for Asia
Optyma™ Packaged condensing units - Europe (EMA)
Sound spectrum for Optyma Plus OP-LPQM048NT
Optyma™ Plus Control Unit quick starting procedure
OPTYMA™ Plus OP-LPQM, OP-MPYM, OP-MPXM, OP-MPGM, OP-LPOM
Controller for condensing unit Optyma™ Plus (SW Ver. 3.7x)
Optyma™ Plus Controller installation V3.7
Danfoss DOI EU-UK 118A2398.AE
Danfoss EU-UK 118A5048.AF
Condensers
Danfoss MD 118A4193.AE
TĂśV 0045 202 9070 Z 00506 21 D 001(04)
OP-LPQM026AJP00G - OP-LPQM048NTP00E - OP-LPQM048NTP00G - OP-LPQM068FHP00E - OP-LPQM068FHP00G - OP-LPQM068NTP00E - OP-LPQM068NTP00G
Morroco_Logo
Drawing Optyma Optyma Plus H2 - 118A1777
UA_Logo
Piping Information Diagram Optyma Plus
OP-LPQM048NTP00E

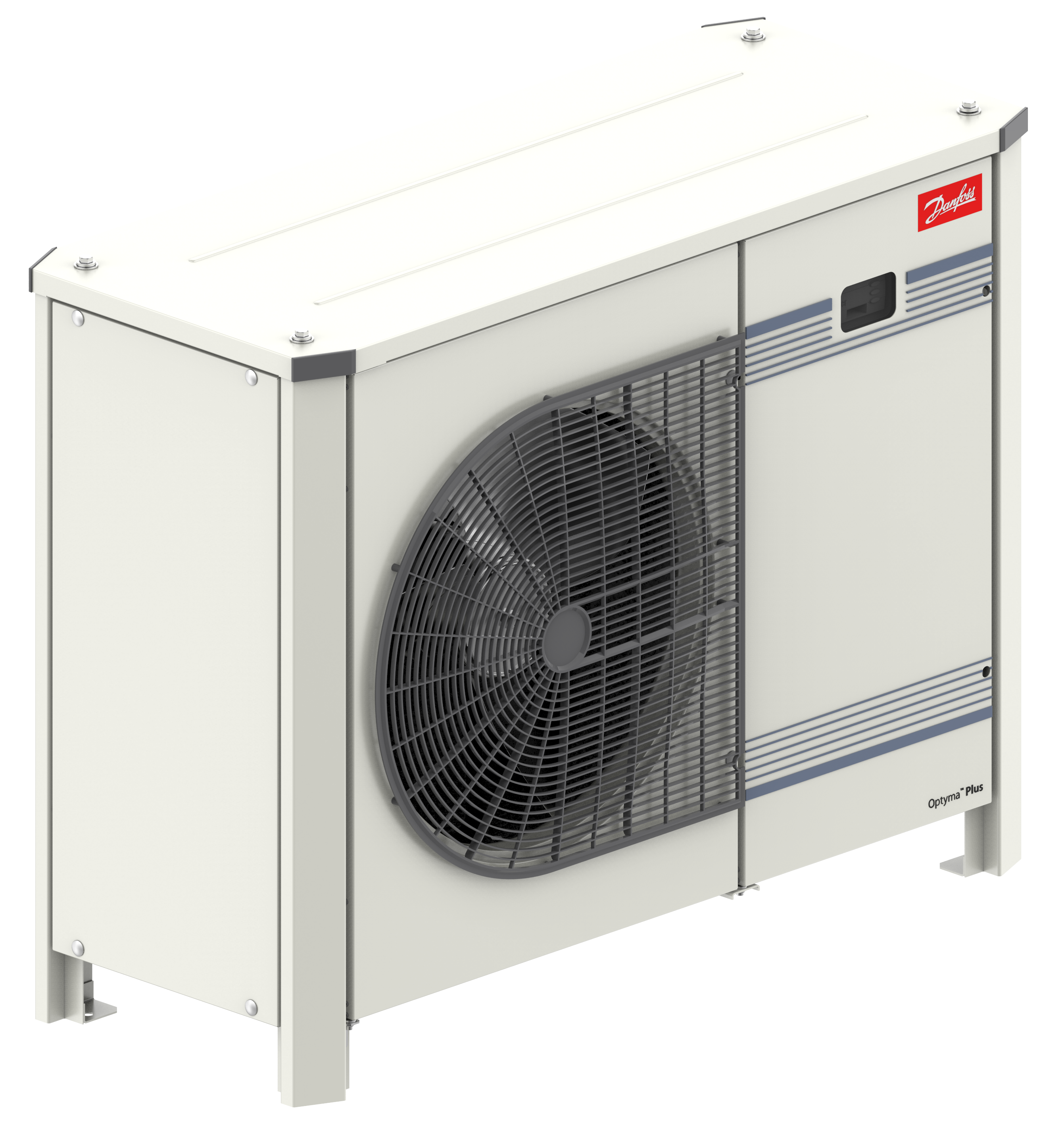

Optyma Plus New Generation, exterior
