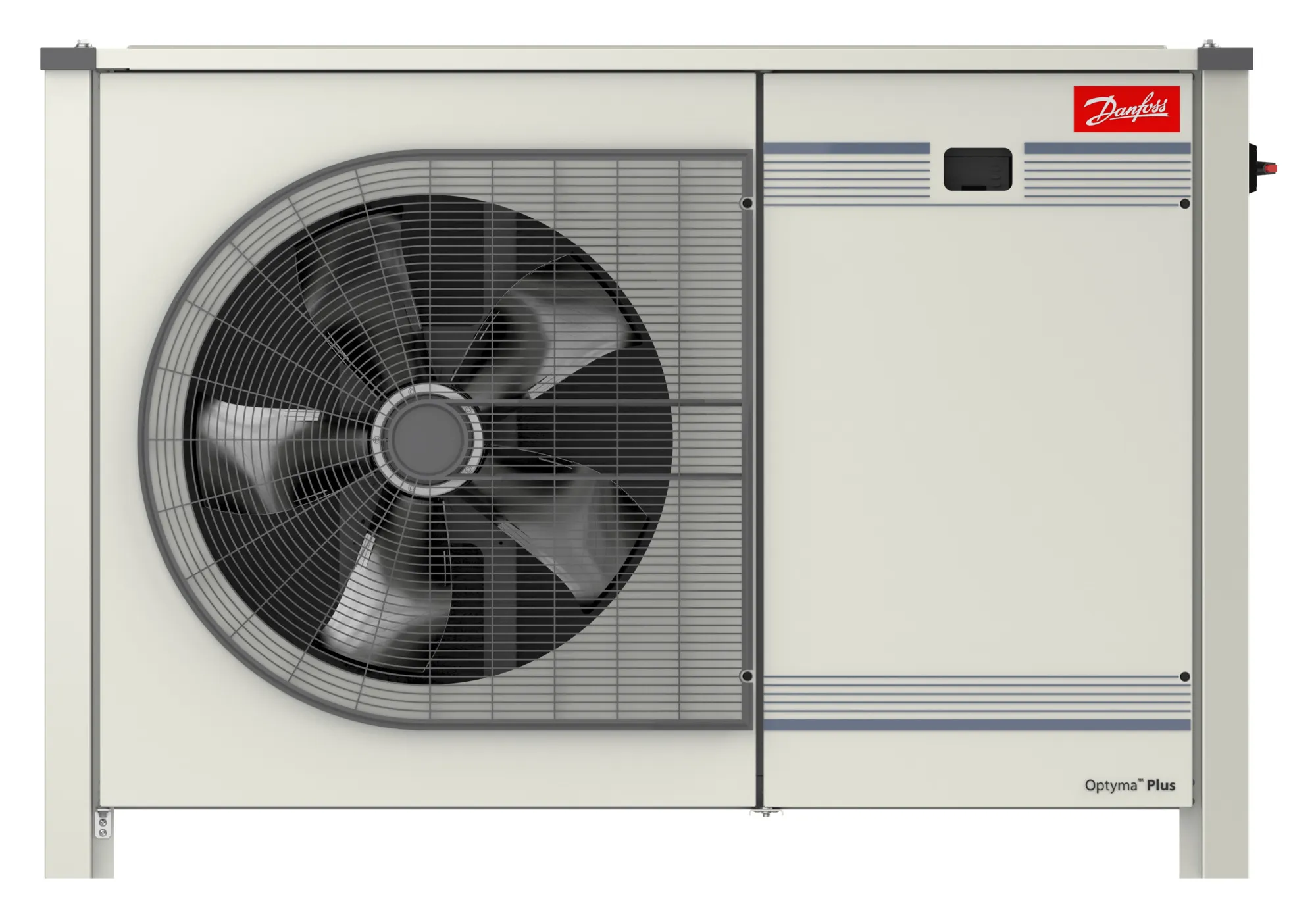

114X3305

Part Number: 114X3305
114X3305
Manufacturer
Danfoss
Part number
114X3305
Category

Product Information

Extended Description

114X3305 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A; R454C; R448A; R455A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
164 Kilogram
Net weight
138 Kilogram
Volume
73.83 Liter
EAN
5702424595357
Air flow @ 50Hz [mÂł/h]
5200 mÂł/h
Applications
LBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor High pressure volume (L)
0.5
Compressor Low pressure volume (L)
4.74 L
Compressor model
LLZ015T4LQ9B
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Condenser volume (L)
1.62
Connection type
Solder
Contain batteries
No
Description
OP-LPKM084LLP02E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
560 mm
Fan cowl/grill type
H3
Fan current @ 50Hz [A]
1.6 A
Fan diameter [mm]
560 mm
Fan power consumption @ 50Hz [W]
140 W
Fan power output @ 50Hz [W]
72 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.35
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
LBP Cooling capacity [kW] (R452A)
3.29 kW
LBP Cooling capacity range [kW] (R452A)
1.6 to 3.6 kW
Length [mm]
531 mm
Liquid injection
Yes
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
380 V
LRA
88.5 A
MBP Cooling capacity range [kW] (R449A)
Not available for this condition / refrigerant
MCC
16.9 A
Min fuse rating [A]
20 A
Model number
OP-LPKM084LLP02E
Night operation noise pressure at 10m dB(A)
39 dBA
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),Bisphenol A (BPA, CAS no. 80-05-7)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
6.2 L
Refrigerants
R404A,R448A,R449A,R452A,R454C,R455A
RLA
10.9 A
SCIP dossier no.
8715baa0-315c-4422-97d8-0a8b45f1b46d
SCIP dossier product name
OPTYMA P02 G7 J7
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
74 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
63 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
43 dBA
Suction connection size [in]
3/4 in
Technology
Scroll
Total height [mm]
965 mm
Type
Optyma™ Plus P02
UK RoHS compliance
Out of scope
Version
P02
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Volume (L)
0.112 L
Width [mm]
1441 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3847
Electrical component, Contactor
