114X3357
Part Number: 114X3357
Product Information
Extended Description
114X3357 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
Gross weight
143 Kilogram
Net weight
107 Kilogram
Volume
1102.608 Liter
EAN
5702428564984
Air flow @ 50Hz [mÂł/h]
5200 mÂł/h
Applications
LBP
Approval
CE,EAC
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
NTZ096-4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Connection type
Solder
Contain batteries
No
Description
OP-LPQM096NTP00E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
500 mm
Fan cowl/grill type
H3
Fan current @ 50Hz [A]
0.96 A
Fan diameter [mm]
500 mm
Fan power consumption @ 50Hz [W]
220 W
Fan power output @ 50Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
In scope of WEEE
Yes
LBP Cooling capacity [kW] (R452A)
1.99 kW
LBP Cooling capacity range [kW] (R452A)
1.6 to 3.6 kW
Length [mm]
531 mm
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
380 V
LRA
32 A
MBP Cooling capacity range [kW] (R449A)
Not available for this condition / refrigerant
MCC
10.1 A
Min fuse rating [A]
12 A
Model number
OP-LPQM096NTP00E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
6.2 L
Refrigerants
R404A,R452A,R507A
RLA
7.2 A
SCIP dossier no.
79e44f1b-ab3b-44c1-b280-ba3435673604
SCIP dossier product name
OPTYMA P00 G7 J7
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
72 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
61 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
41 dBA
Suction connection size [in]
7/8 in
Technology
Reciprocating
Total height [mm]
965 mm
Type
Optyma™ Plus P00
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1441 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3829
Fan system, Fan assembly
Optyma™ Packaged condensing units
Convenience Store_CU Brochure
Optyma multi-refrigerant A2L-ready ranges_eBrochure
Optyma™ condensing units for Asia
Optyma™ Packaged condensing units - Europe (EMA)
Sound spectrum for Optyma Plus OP-LPQM096NT
Optyma™ Plus Control Unit quick starting procedure
OPTYMA™ Plus OP-LPQM, OP-MPYM, OP-MPXM, OP-MPGM, OP-LPOM
Controller for condensing unit Optyma™ Plus (SW Ver. 3.7x)
Optyma™ Plus Controller installation V3.7
Danfoss DOI EU-UK 118A2398.AE
Danfoss EU-UK 118A5048.AF
Condensers
Danfoss MD 118A4193.AE
TĂśV 0045 202 9070 Z 00506 21 D 001(04)

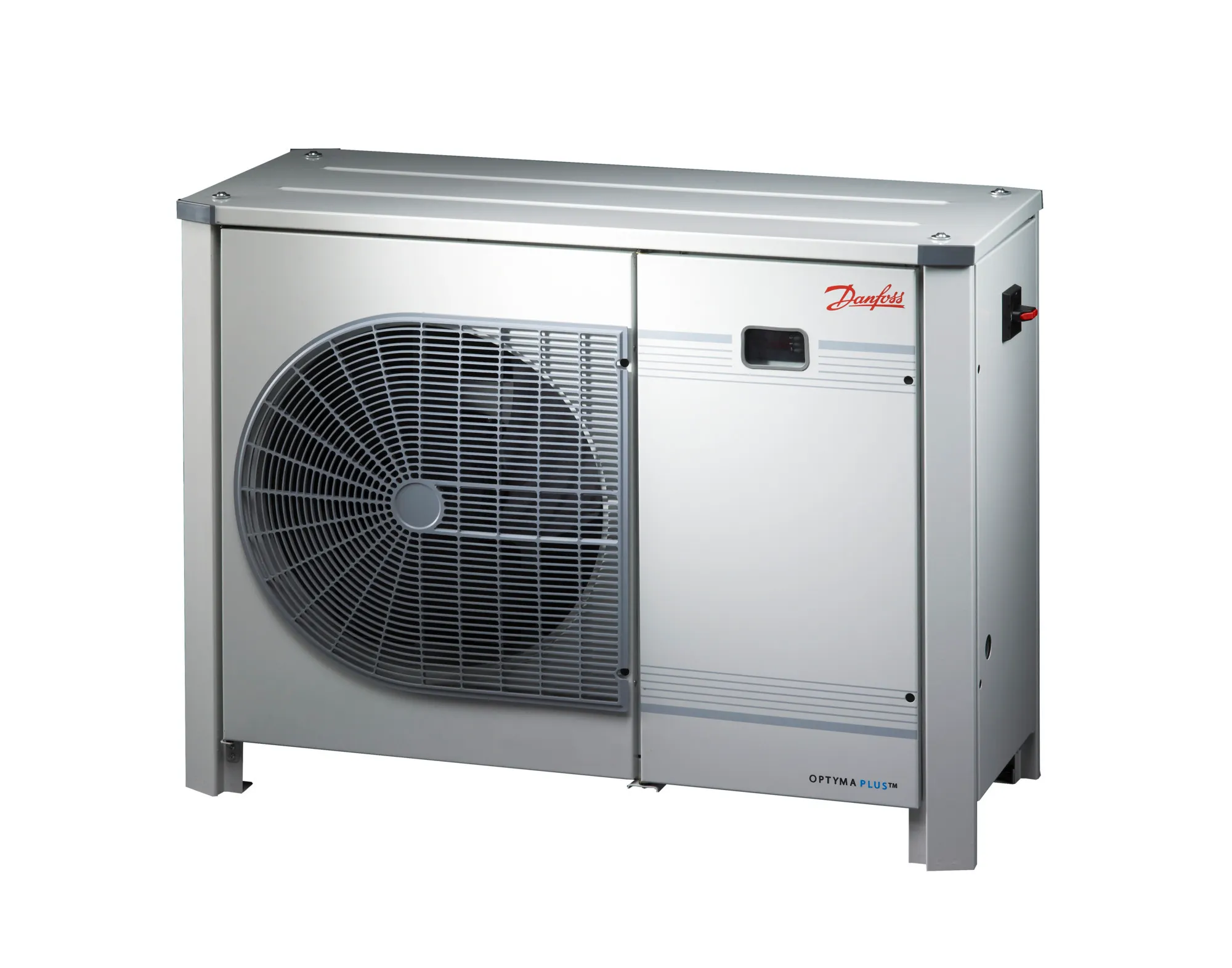

Optyma Plus New Generation, exterior
Piping Information Diagram Optyma Plus
Drawing Optyma Optyma Plus H3 - 118A1779
