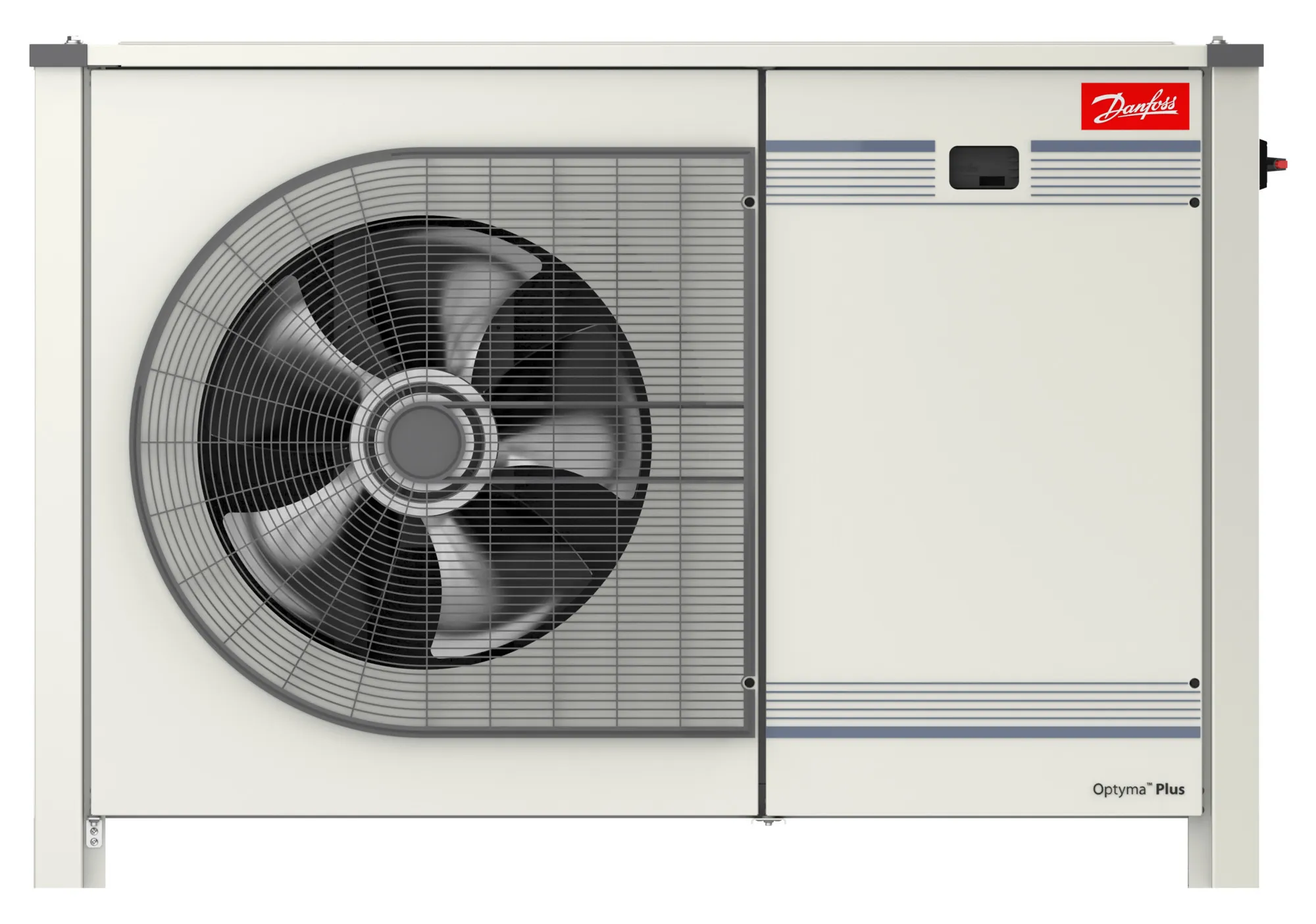

114X3371

Part Number: 114X3371
114X3371
Manufacturer
Danfoss
Part number
114X3371
Category

Product Information

Extended Description

114X3371 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A; R448A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
167 Kilogram
Net weight
135 Kilogram
Volume
1032.3 Liter
EAN
5702428666343
Air flow @ 50Hz [mÂł/h]
4300 mÂł/h
Applications
LBP
Capacity control
Fixed speed
China RoHS compliance
Out of scope
Compressor model
LLZ013T4A
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Connection type
Solder
Contain batteries
No
Description
OP-LPOM067LLP02E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
500 mm
Fan cowl/grill type
Grill
Fan current @ 50Hz [A]
0.96 A
Fan diameter [mm]
500 mm
Fan power consumption @ 50Hz [W]
190 W
Fan power output @ 50Hz [W]
220 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
253 V
Fan voltage @ 50Hz (max) [V] [Min]
207 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
440 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
In scope of WEEE
Yes
LBP Cooling capacity [kW] (R452A)
2.72 kW
LBP Cooling capacity range [kW] (R452A)
1.6 to 3.6 kW
Length [mm]
531 mm
Liquid injection
Yes
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
360 V
LRA
62 A
MBP Cooling capacity range [kW] (R449A)
Not available for this condition / refrigerant
MCC
13.0 A
Min fuse rating [A]
16 A
Model number
OP-LPOM067LLP02E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),Bisphenol A (BPA, CAS no. 80-05-7)
Receiver approval
PED,RoHS,EAC
Receiver volume [L]
6.2 L
Refrigerants
R404A,R448A,R449A,R452A
RLA
8.3 A
SCIP dossier no.
8715baa0-315c-4422-97d8-0a8b45f1b46d
SCIP dossier product name
OPTYMA P02 G7 J7
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
74 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
63 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
43 dBA
Suction connection size [in]
3/4 in
Total height [mm]
965 mm
Type
Optyma™ Plus P02
UK RoHS compliance
Out of scope
Version
P02
Voltage 50Hz [V]
360 V
Voltage 50Hz [V] [Max]
440 V
Width [mm]
1441 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3829
Fan system, Fan assembly
