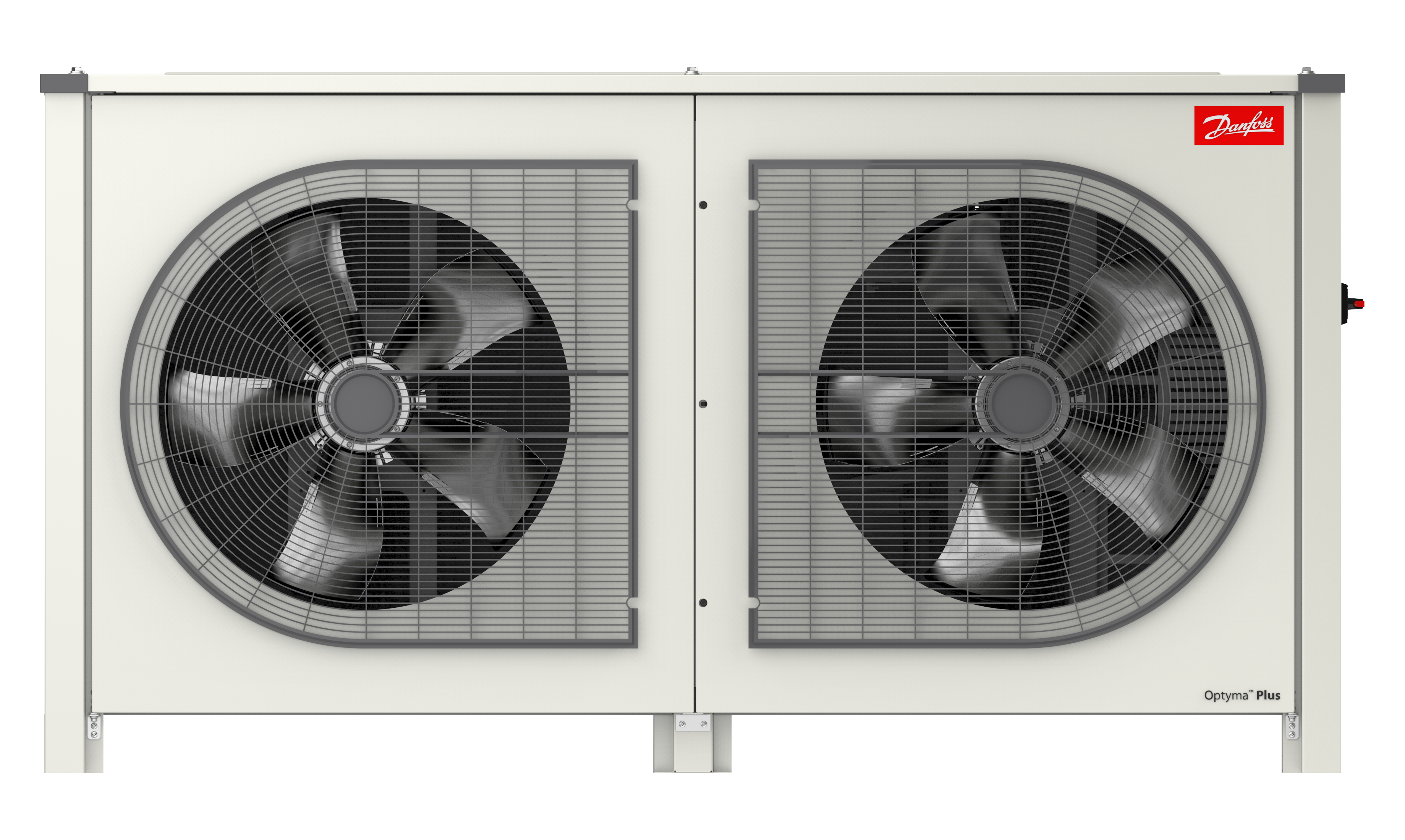

114X3405
Part Number: 114X3405
Product Information
Extended Description
114X3405 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A; R454C; R448A; R455A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
230 Kilogram
Net weight
180 Kilogram
Volume
115.2 Liter
EAN
5702424596569
Air flow @ 50Hz [mÂł/h]
9200 mÂł/h
Applications
LBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor High pressure volume (L)
0.5
Compressor Low pressure volume (L)
5.95 L
Compressor model
LLZ024T4B
Compressor power supply [V]
400/3/50
Condenser type
J7
Condenser volume (L)
1.97
Connection type
Solder
Contain batteries
No
Description
OP-LPKM120LLP02E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
560 mm
Fan cowl/grill type
H4
Fan current @ 50Hz [A]
1.6 A
Fan diameter [mm]
560 mm
Fan power consumption @ 50Hz [W]
140 W
Fan power output @ 50Hz [W]
72 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.35
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
LBP Cooling capacity [kW] (R452A)
5.01 kW
LBP Cooling capacity range [kW] (R452A)
3.6 to 7.2 kW
Length [mm]
650 mm
Liquid injection
Yes
Liquid line connection [in]
3/4 in
Low value of nominal voltage at 50Hz [V]
380 V
LRA
95 A
MBP Cooling capacity range [kW] (R449A)
Not available for this condition / refrigerant
MCC
22.7 A
Min fuse rating [A]
25 A
Model number
OP-LPKM120LLP02E
Night operation noise pressure at 10m dB(A)
46 dBA
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Number of receivers
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),Bisphenol A (BPA, CAS no. 80-05-7)
Receiver approval
CE,Morocco,UKCA
Receiver type
Vertical
Receiver volume [L]
10 L
Refrigerants
R404A,R448A,R449A,R452A,R454C,R455A
RLA
14.5 A
SCIP dossier no.
8715baa0-315c-4422-97d8-0a8b45f1b46d
SCIP dossier product name
OPTYMA P02 G7 J7
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
78 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
67 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
47 dBA
Suction connection size [in]
1 1/8 in
Technology
Scroll
Total height [mm]
966 mm
Type
Optyma™ Plus P02 (A2L)
UK RoHS compliance
Out of scope
Version
P02
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Volume (L)
0.5 L
Width [mm]
1835 mm
121L8461
Scroll compressor, LLZ024T4LQ9B
120Z0895
Crankcase heater, Belt heater
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
Convenience Store_CU Brochure
Optyma™ Packaged condensing units - Europe (EMA)
Optyma™ Plus Control Unit quick starting procedure
Optyma™ Plus OP-MPS, OP-MPT, OP-LPV and OP-MPI
Optyma™ Plus Controller installation V3.7
Danfoss DOI EU-UK 118A2398.AE
Danfoss EU-UK 118A5048.AF
Condensers
Danfoss MD 118A4193.AE
TĂśV 0045 202 9070 Z 00506 21 D 001(04)
OP-LPKM120LLP02E - OP-LPKM168LLP02E
Drawing Optyma Optyma Plus H4 - 118A1780
OP-LPKM120LLP02E
