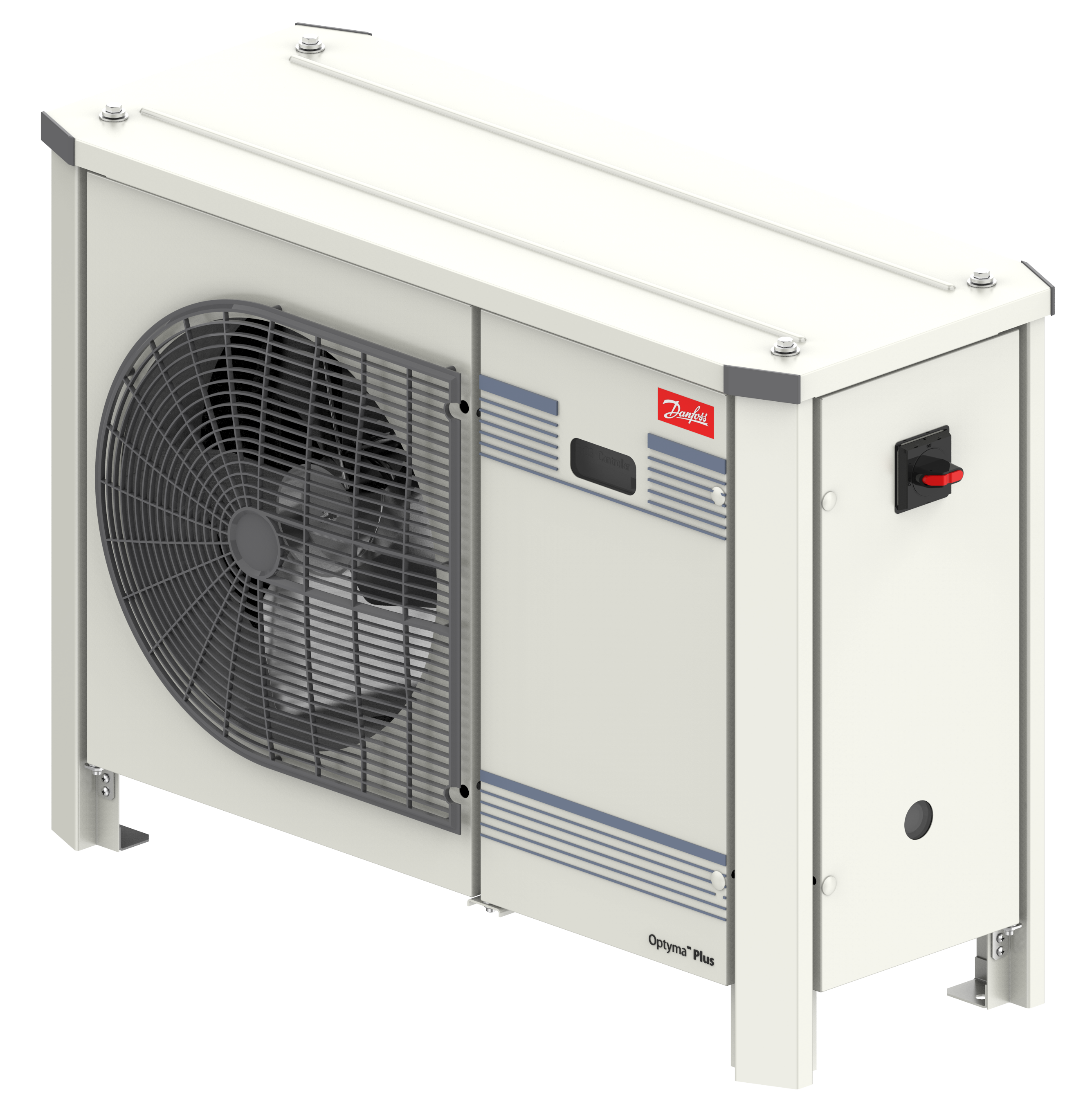

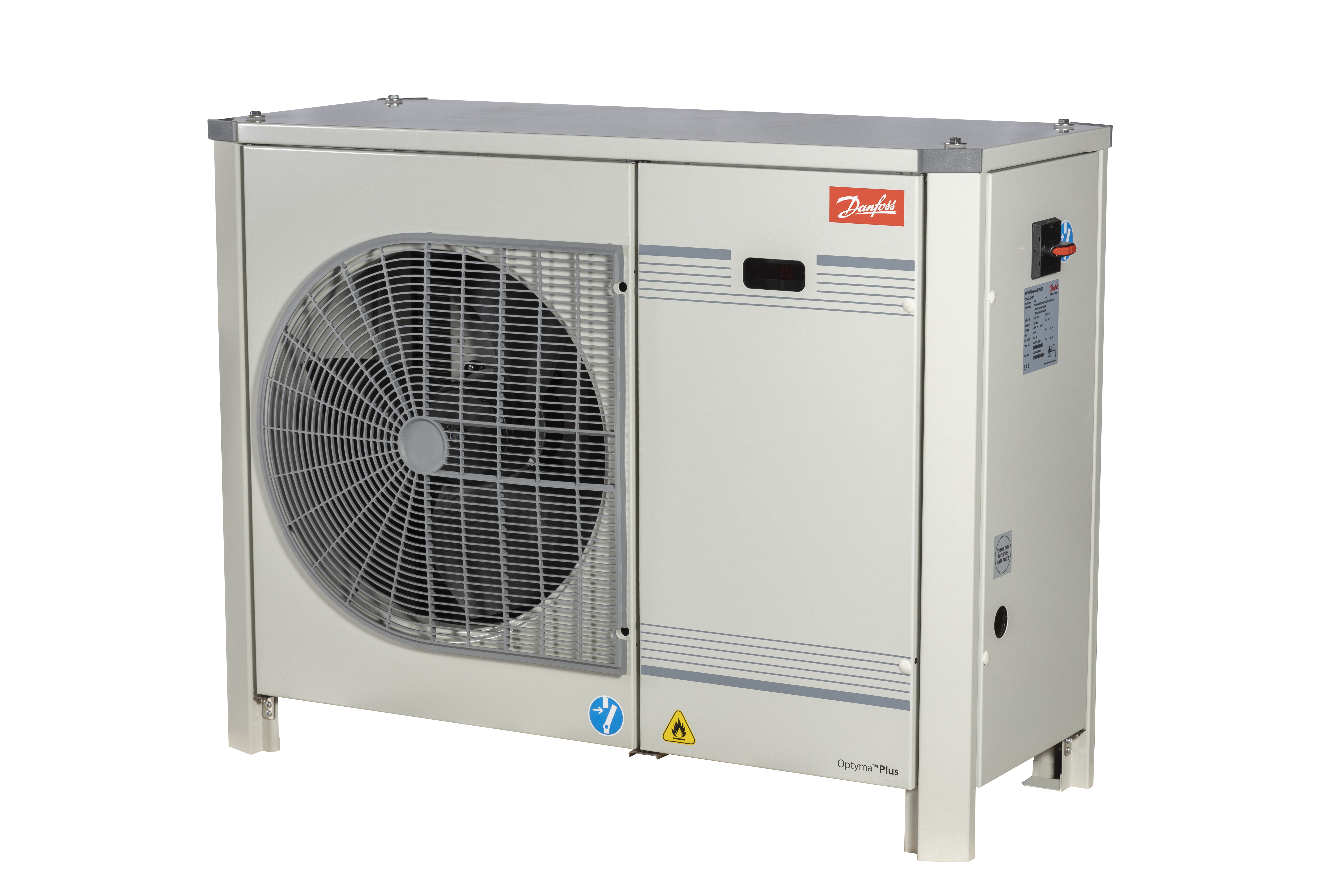

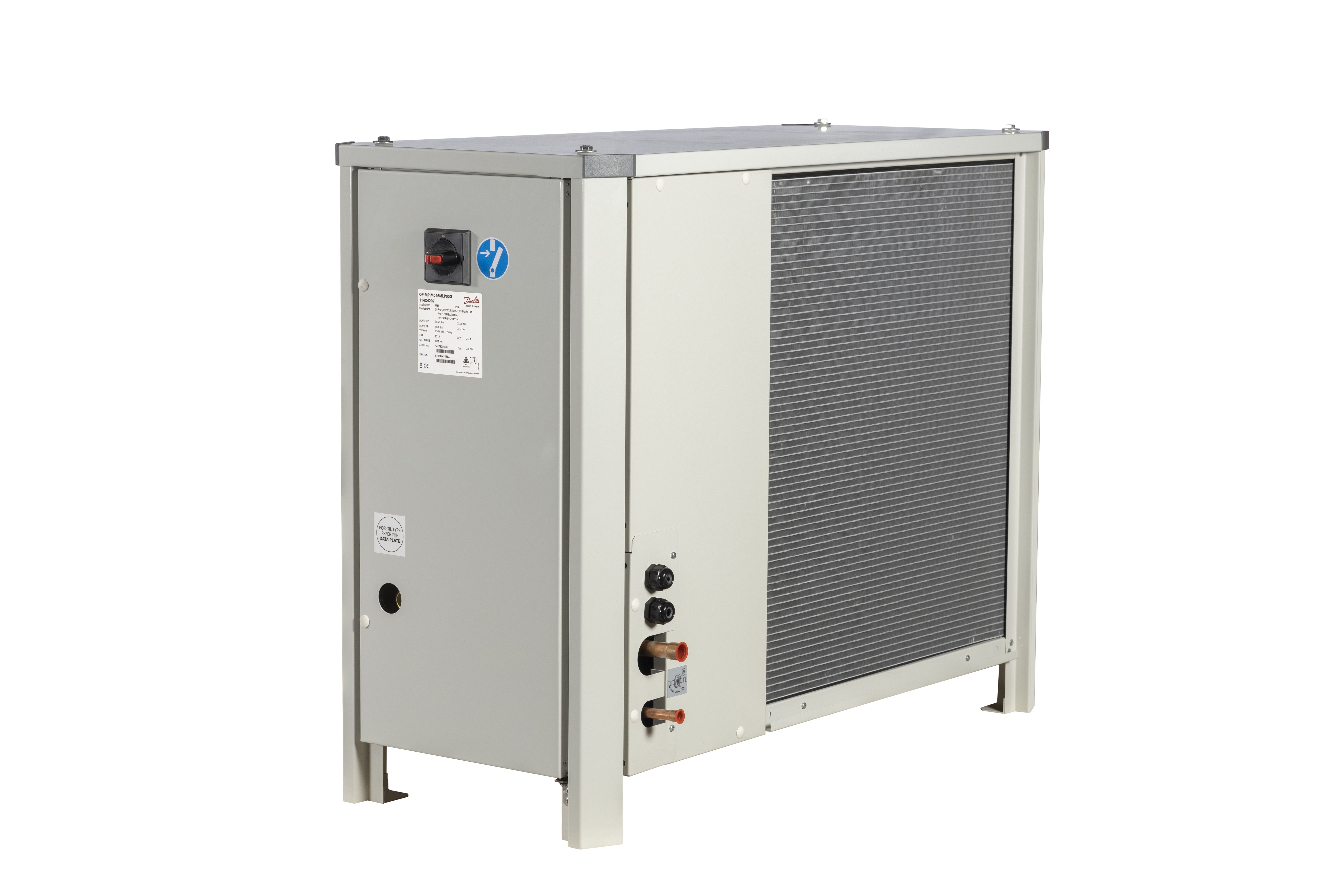

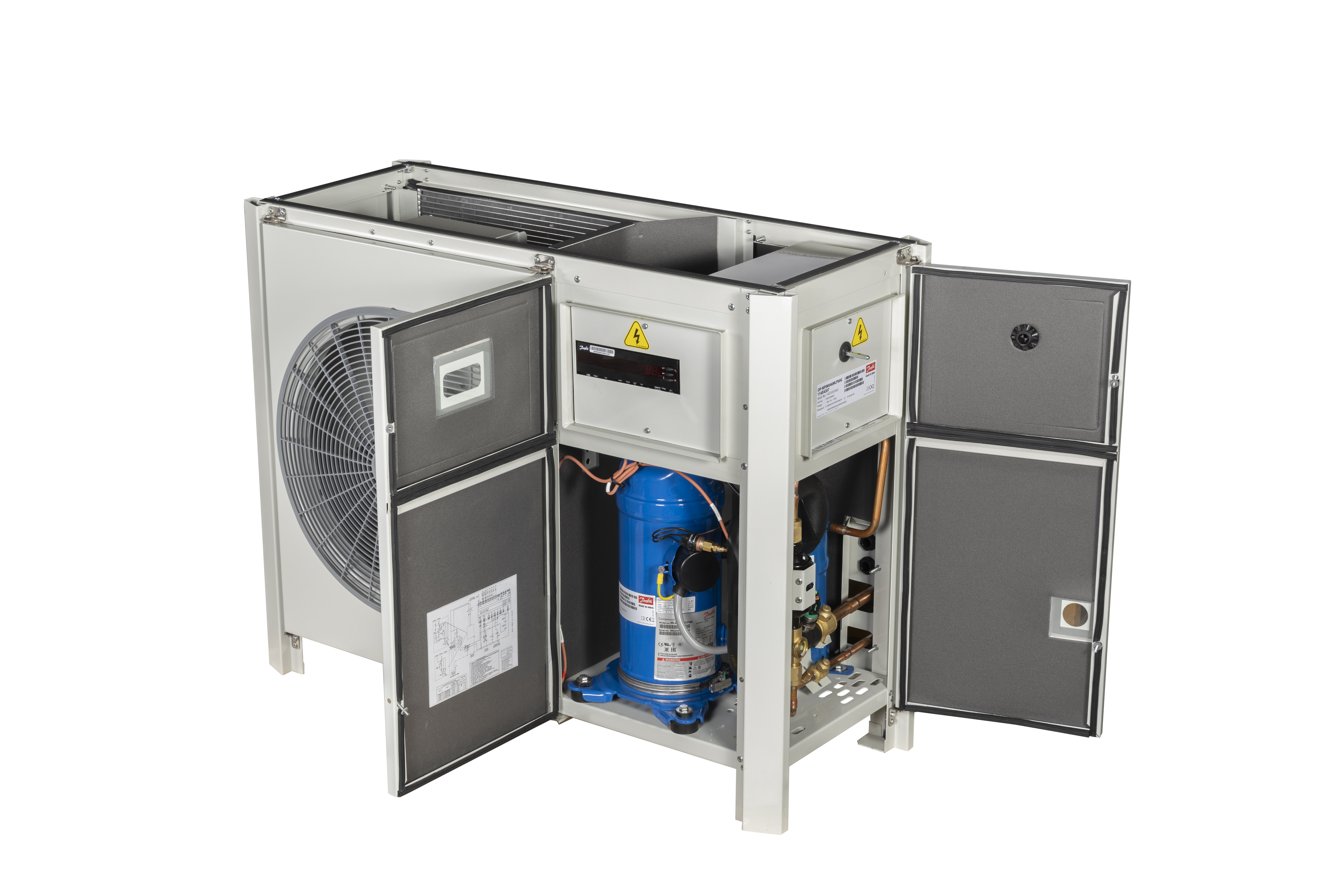

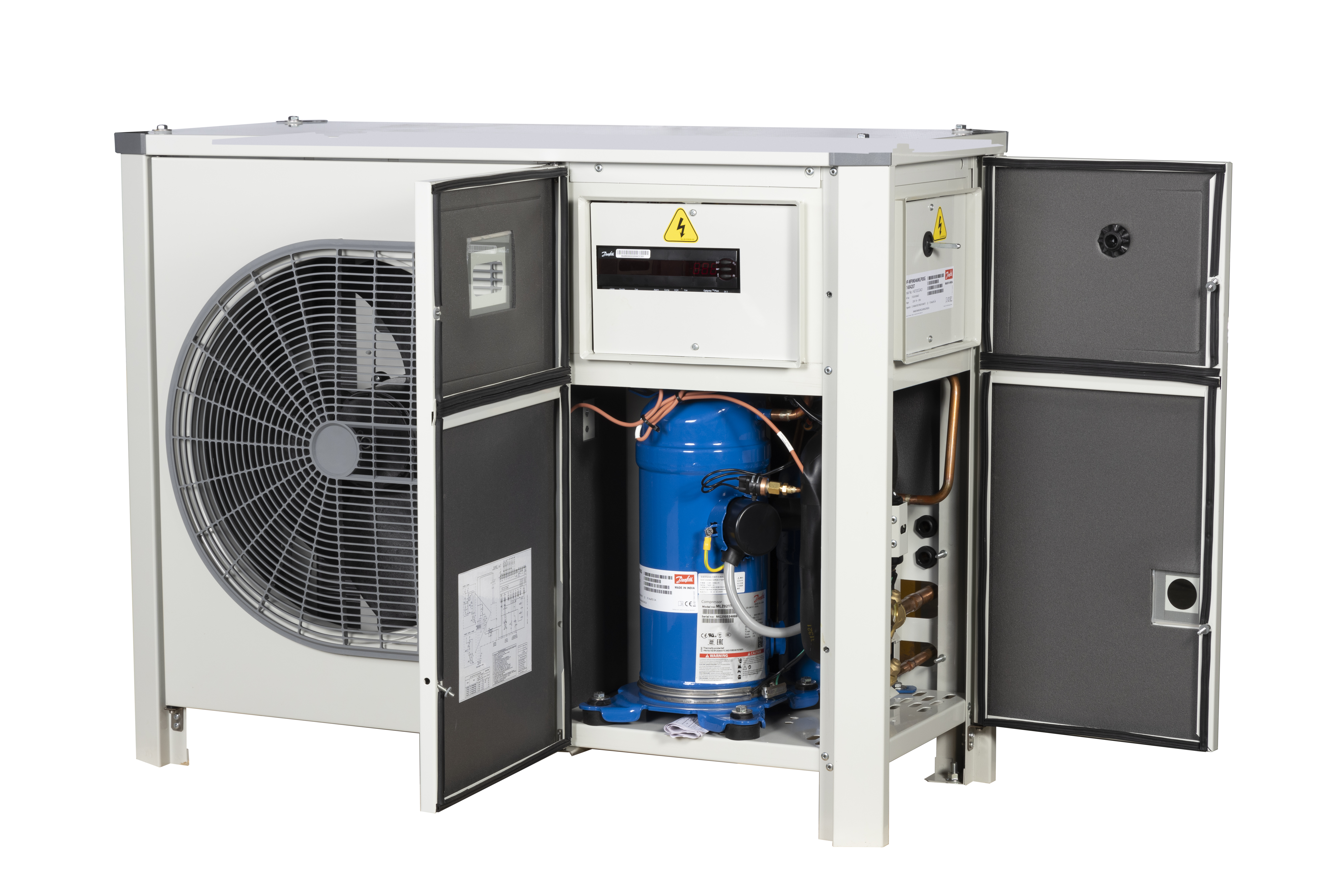

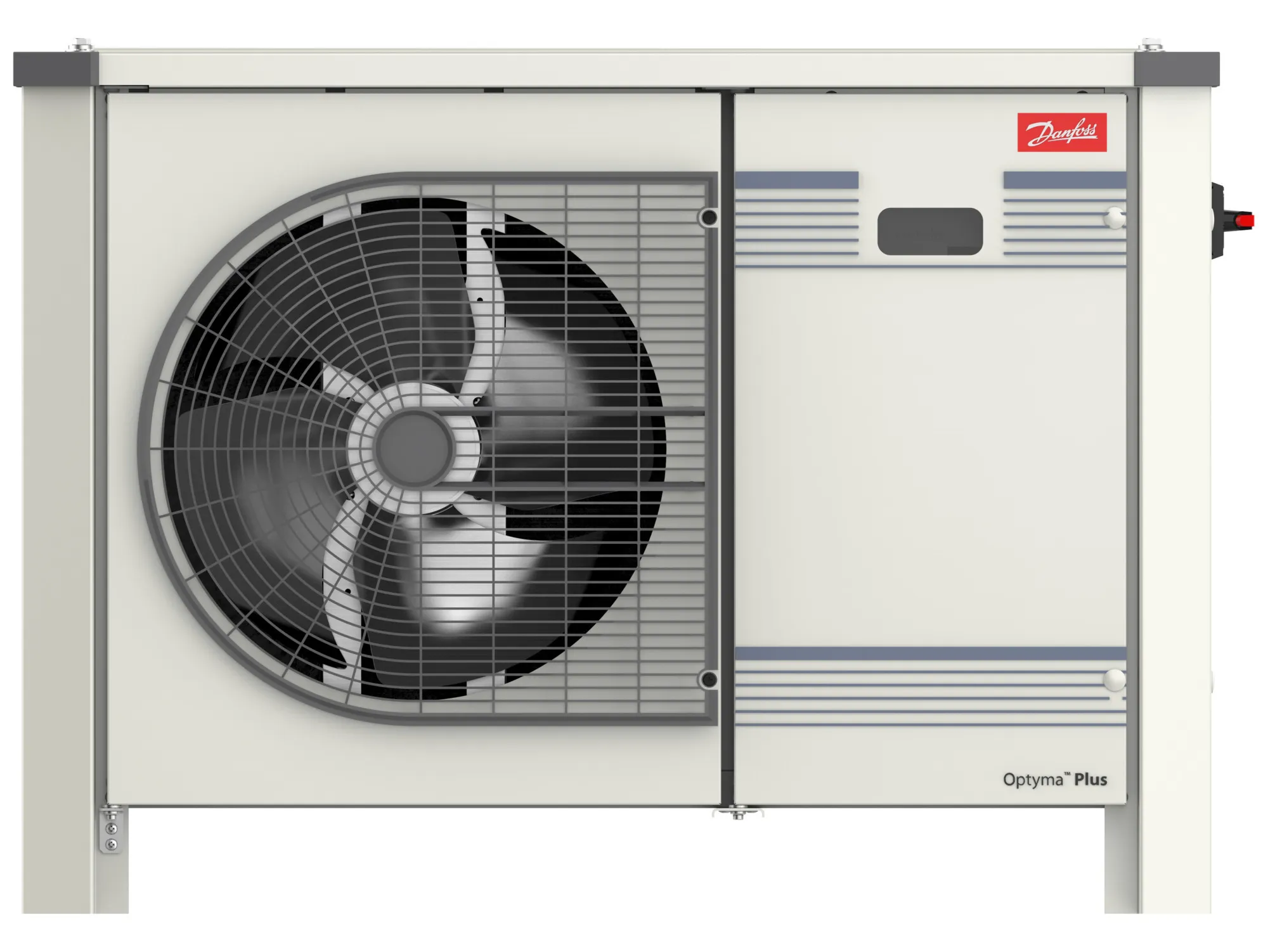

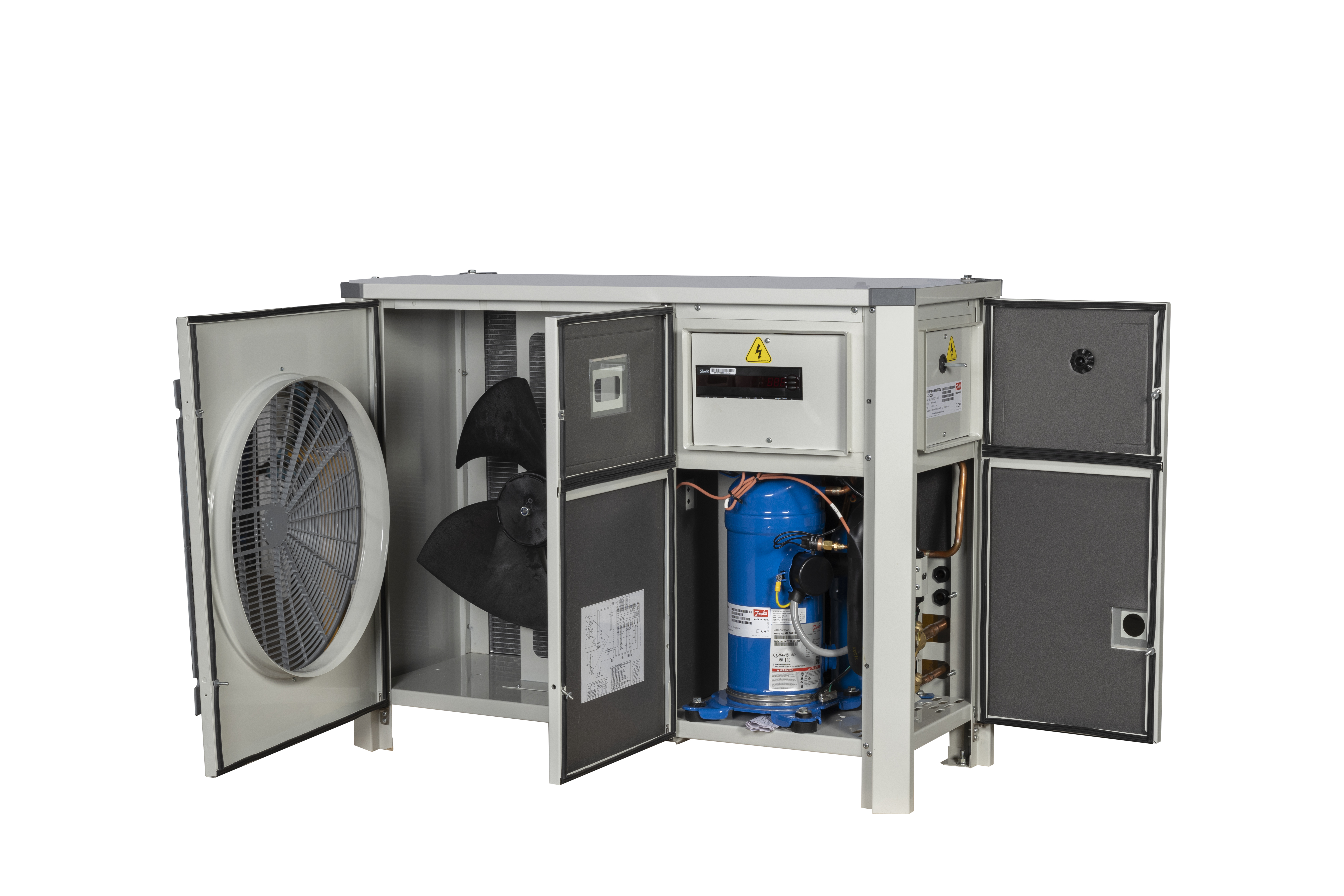

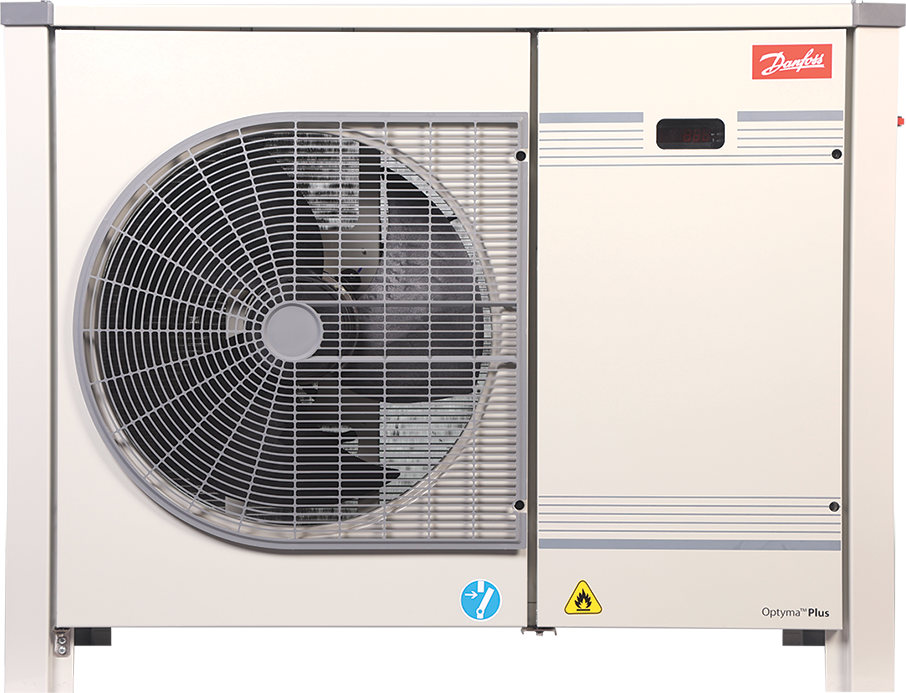

114X4111

Part Number: 114X4111
114X4111
Manufacturer
Danfoss
Part number
114X4111
Category

Product Information

Extended Description

114X4111 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R454C; R448A; R455A; R449A, Compressor power supply [V]: 230/1/50
Gross weight
74 Kilogram
Net weight
55 Kilogram
Volume
416 Liter
EAN
5702424287740
Air flow @ 50Hz [mÂł/h]
2200 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
DLY90RAb
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
0.39 L
Condenser type
A7
Condenser volume (L)
0.39
Connection type
Solder
Contain batteries
No
Description
OP-MPTM009DYP00G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
365 mm
Fan cowl/grill type
H1
Fan current @ 50Hz [A]
0.32 A
Fan diameter [mm]
365 mm
Fan power consumption @ 50Hz [W]
60 W
Fan power output @ 50Hz [W]
25 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.17
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
255 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
LBP Cooling capacity range [kW] (R452A)
Not available for this condition / refrigerant
Length [mm]
406 mm
Liquid line connection [in]
3/8 in
Low value of voltage range at 60Hz [V]
187 V
LRA
17 A
MBP Cooling capacity [kW] (R449A)
0.98 kW
MBP Cooling capacity range [kW] (R449A)
0.8 to 1.5 kW
MCC
4.9 A
Min fuse rating [A]
8 A
Model number
OP-MPTM009DYP00G
Night operation noise pressure at 10m dB(A)
25 dBA
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
1.3 L
Refrigerants
R404A,R448A,R449A,R452A,R454C,R455A
RLA
3.4 A
SCIP dossier no.
1f4f6787-26f3-4d07-9441-e571b9dc25ef
SCIP dossier product name
OPTYMA P00 A7 D7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
62 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
51 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
31 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
3/8 in
Total height [mm]
650 mm
Type
Optyma™ Plus P00 (A2L)
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
187 V
Voltage 50Hz [V] [Max]
255 V
Volume (L)
0.016 L
Width [mm]
941 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3296
Electrical component, Capacitor
118U3465
Electrical component, Controller
118U3474
Tank, Receiver
118U3477
Fan system, Fan motor
118U3480
Fan system, Fan blade
