114X4220

Part Number: 114X4220
114X4220
Manufacturer
Danfoss
Part number
114X4220
Category

Product Information

Extended Description

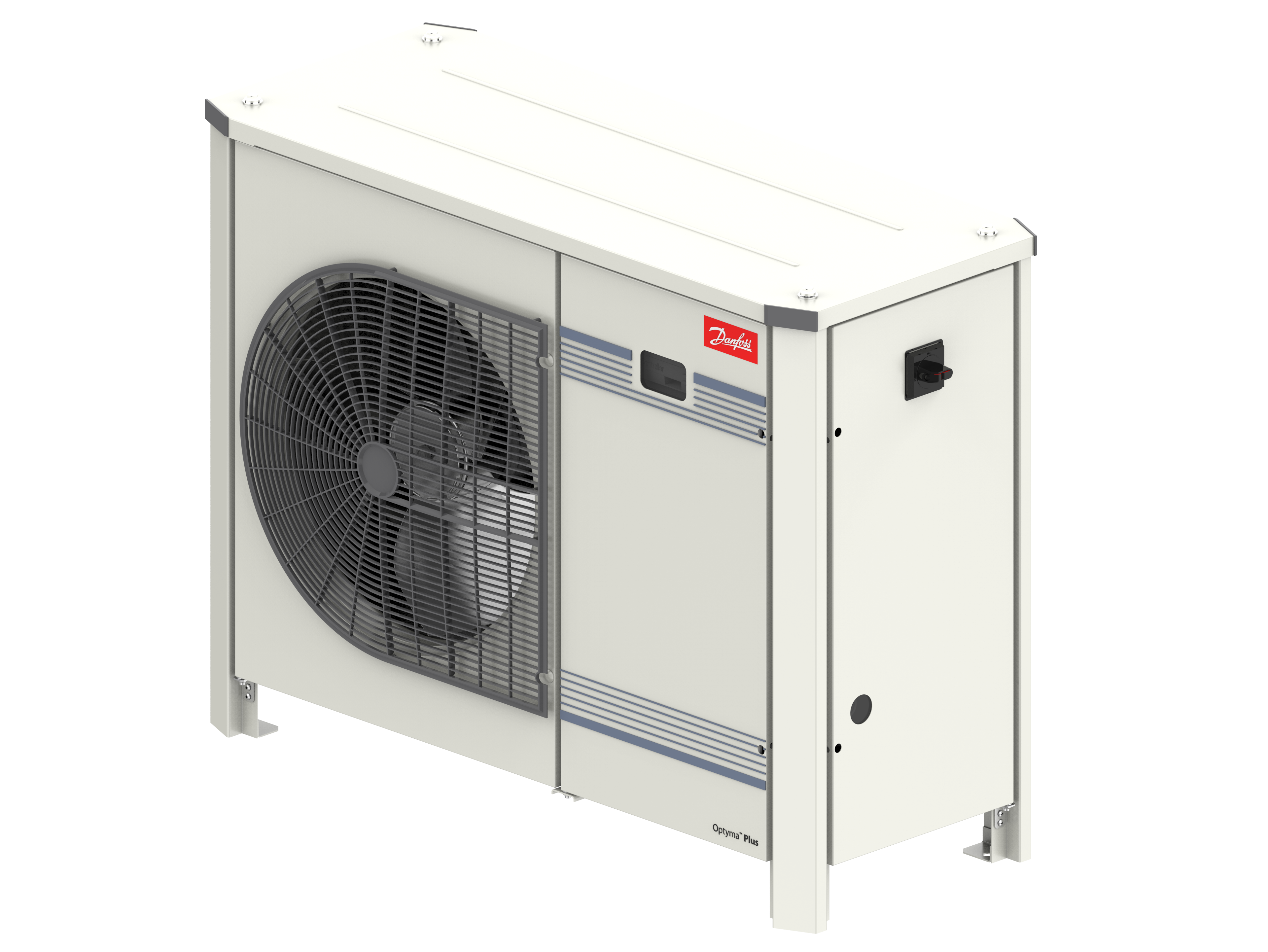

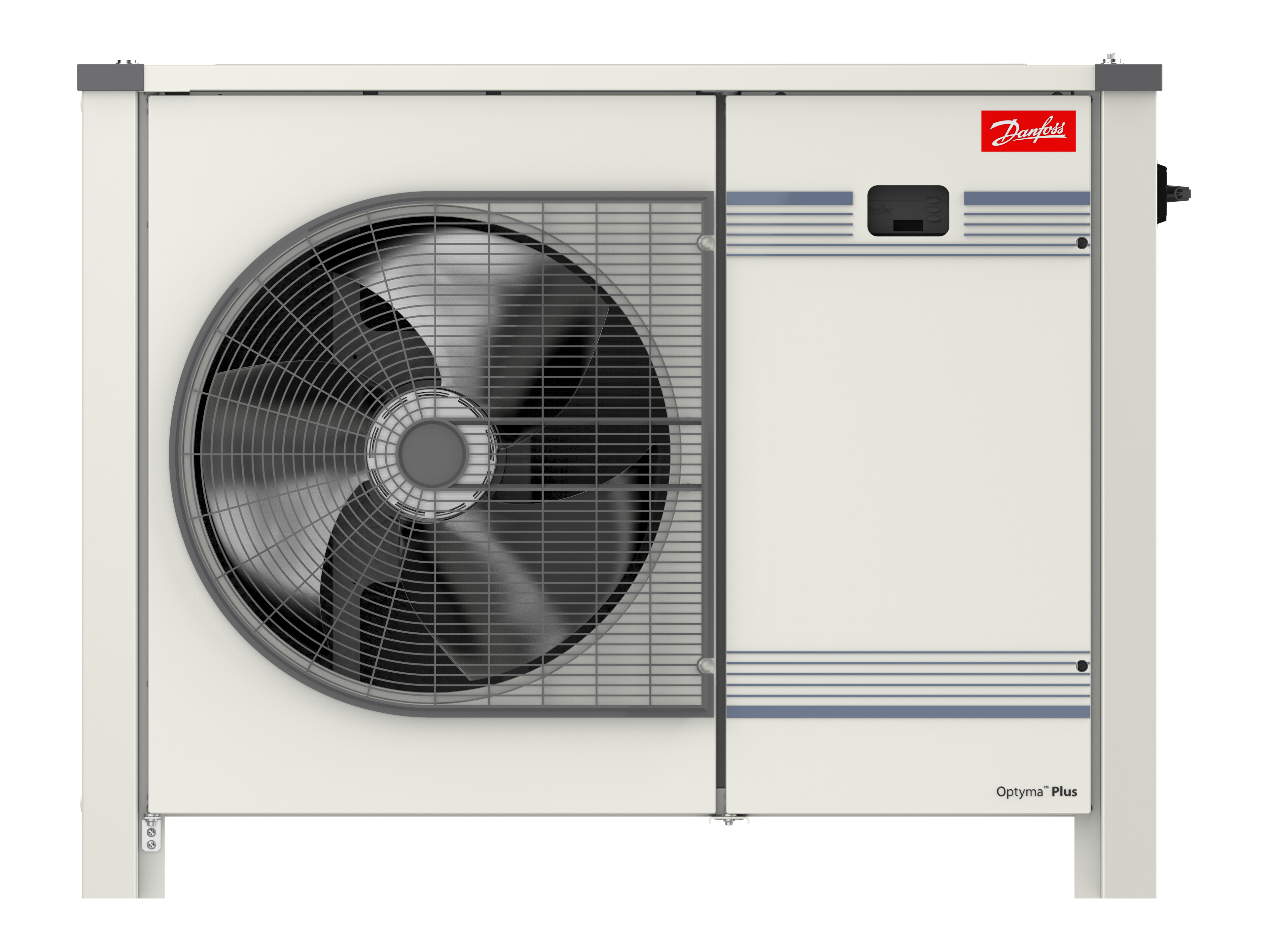

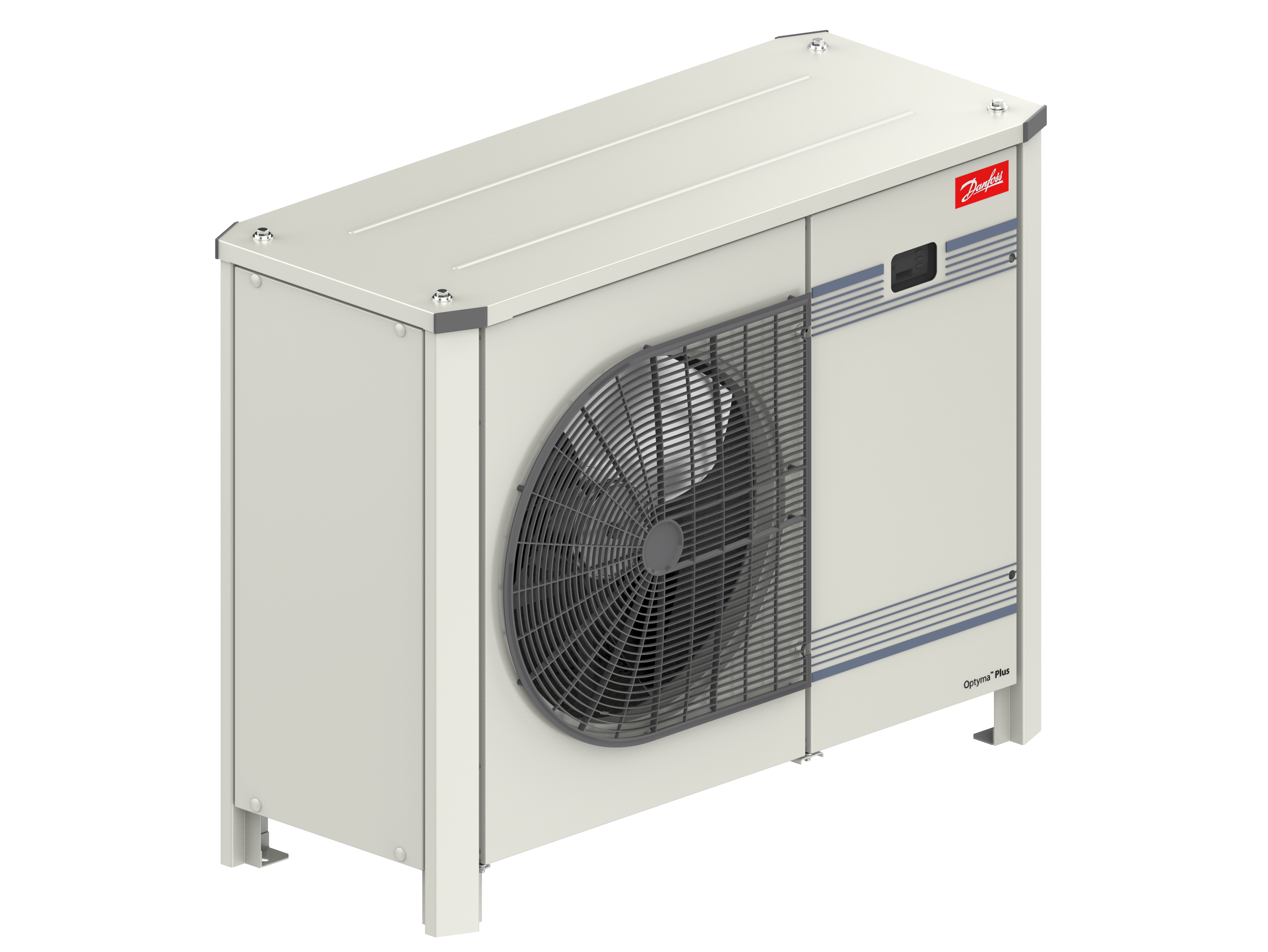

114X4220 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R134a; R513A, Compressor power supply [V]: 230/1/50
Gross weight
97 Kilogram
Net weight
80 Kilogram
Volume
628.992 Liter
EAN
5702428564755
Air flow @ 50Hz [m³/h]
3300 m³/h
Applications
MBP
China RoHS compliance
Out of scope
Compressor model
CAJ4511Y
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
0.58 L
Condenser type
D7
Connection type
Solder
Contain batteries
No
Description
OP-MPGM033AJP00G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
450 mm
Fan cowl/grill type
H2
Fan current @ 50Hz [A]
0.47 A
Fan diameter [mm]
450 mm
Fan power consumption @ 50Hz [W]
110 W
Fan power output @ 50Hz [W]
68 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
240 V
HMBP Cooling capacity range [kW] (R513A)
Not available for the moment
In scope of WEEE
Yes
LBP Cooling capacity range [kW] (R452A)
Not available for the moment
Length [mm]
430 mm
Liquid line connection [in]
3/8 in
Low value of voltage range at 60Hz [V]
220 V
MBP Cooling capacity range [kW] (R449A)
Not available for the moment
MCC
8.9 A
Min fuse rating [A]
10 A
Model number
OP-MPGM033AJP00G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
No
Receiver approval
CE
Refrigerants
R134a,R513A
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
69 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
58 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
38 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
5/8 in
Technology
Reciprocating
Total height [mm]
813 mm
Type
Optyma™ Plus P00
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
220 V
Voltage 50Hz [V] [Max]
240 V
Width [mm]
1055 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3297
Electrical component, Capacitor
118U3465
Electrical component, Controller
118U3481
Fan system, Fan blade
118U3484
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
