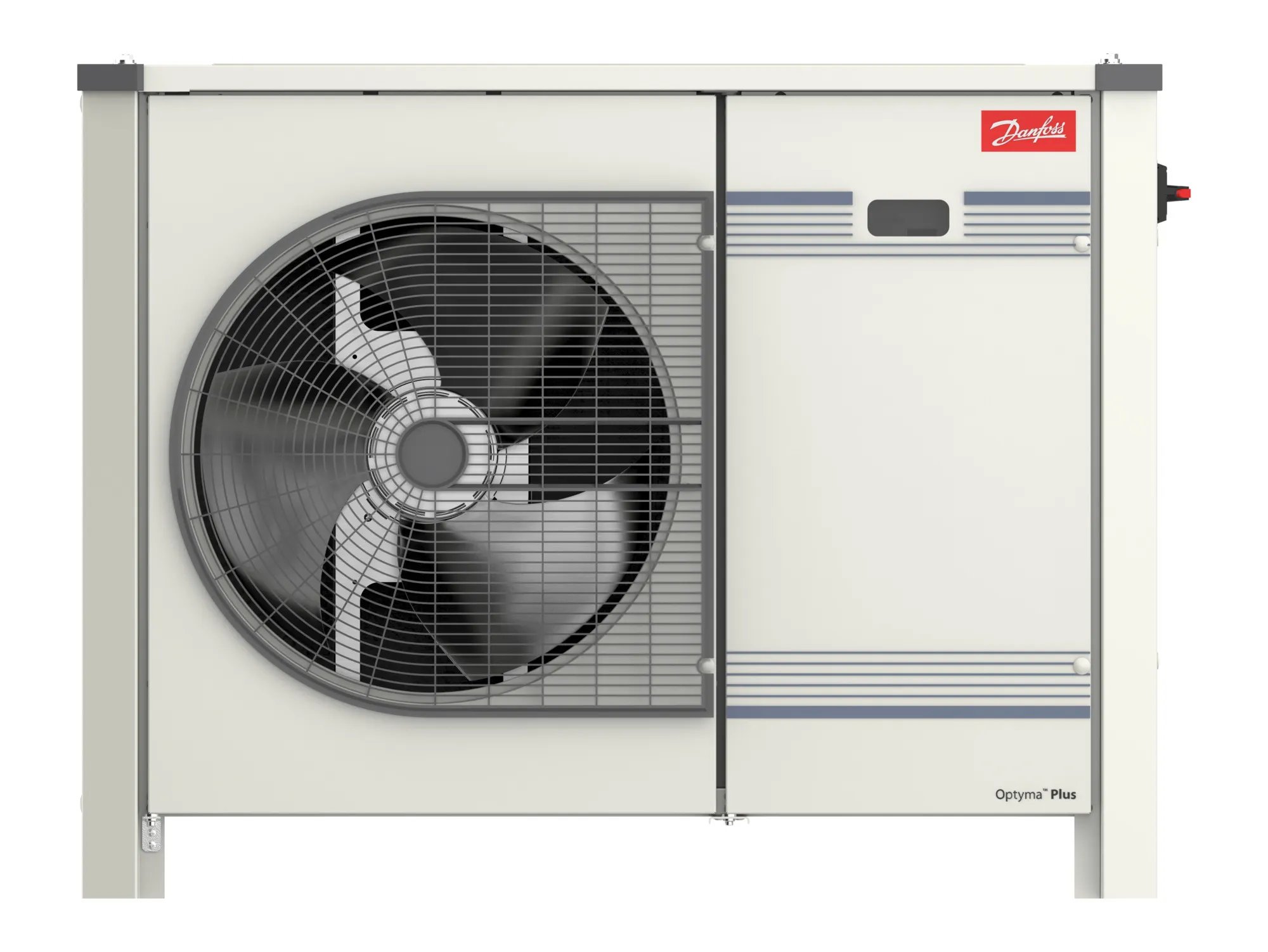

114X4237

Part Number: 114X4237
114X4237
Manufacturer
Danfoss
Part number
114X4237
Category

Product Information

Extended Description

114X4237 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R454C; R448A; R455A; R449A, Compressor power supply [V]: 230/1/50
Gross weight
103 Kilogram
Net weight
67 Kilogram
Volume
640.976 Liter
EAN
5702424288693
Air flow @ 50Hz [mÂł/h]
3300 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
DS22TB
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
0.58 L
Condenser type
D7
Condenser volume (L)
0.58
Connection type
Solder
Contain batteries
No
Description
OP-MPTM022DSP00G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
450 mm
Fan cowl/grill type
H2
Fan current @ 50Hz [A]
0.47 A
Fan diameter [mm]
450 mm
Fan power consumption @ 50Hz [W]
110 W
Fan power output @ 50Hz [W]
68 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.17
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
255 V
HMBP Cooling capacity range [kW] (R513A)
Not available for this condition / refrigerant
In scope of WEEE
Yes
LBP Cooling capacity range [kW] (R452A)
Not available for this condition / refrigerant
Length [mm]
480 mm
Liquid line connection [in]
1/2 in
Low value of voltage range at 60Hz [V]
187 V
LRA
32 A
MBP Cooling capacity [kW] (R449A)
2.04 kW
MBP Cooling capacity range [kW] (R449A)
1.5 to 3.7 kW
MCC
8.4 A
Min fuse rating [A]
10 A
Model number
OP-MPTM022DSP00G
Night operation noise pressure at 10m dB(A)
38 dBA
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
3.4 L
Refrigerants
R404A,R448A,R449A,R452A,R454C,R455A
RLA
5.4 A
SCIP dossier no.
1f4f6787-26f3-4d07-9441-e571b9dc25ef
SCIP dossier product name
OPTYMA P00 A7 D7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
69 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
58 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
40 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
1/2 in
Total height [mm]
813 mm
Type
Optyma™ Plus P00 (A2L)
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
187 V
Voltage 50Hz [V] [Max]
255 V
Volume (L)
0.04 L
Width [mm]
1090 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3297
Electrical component, Capacitor
118U3465
Electrical component, Controller
118U3481
Fan system, Fan blade
118U3484
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
