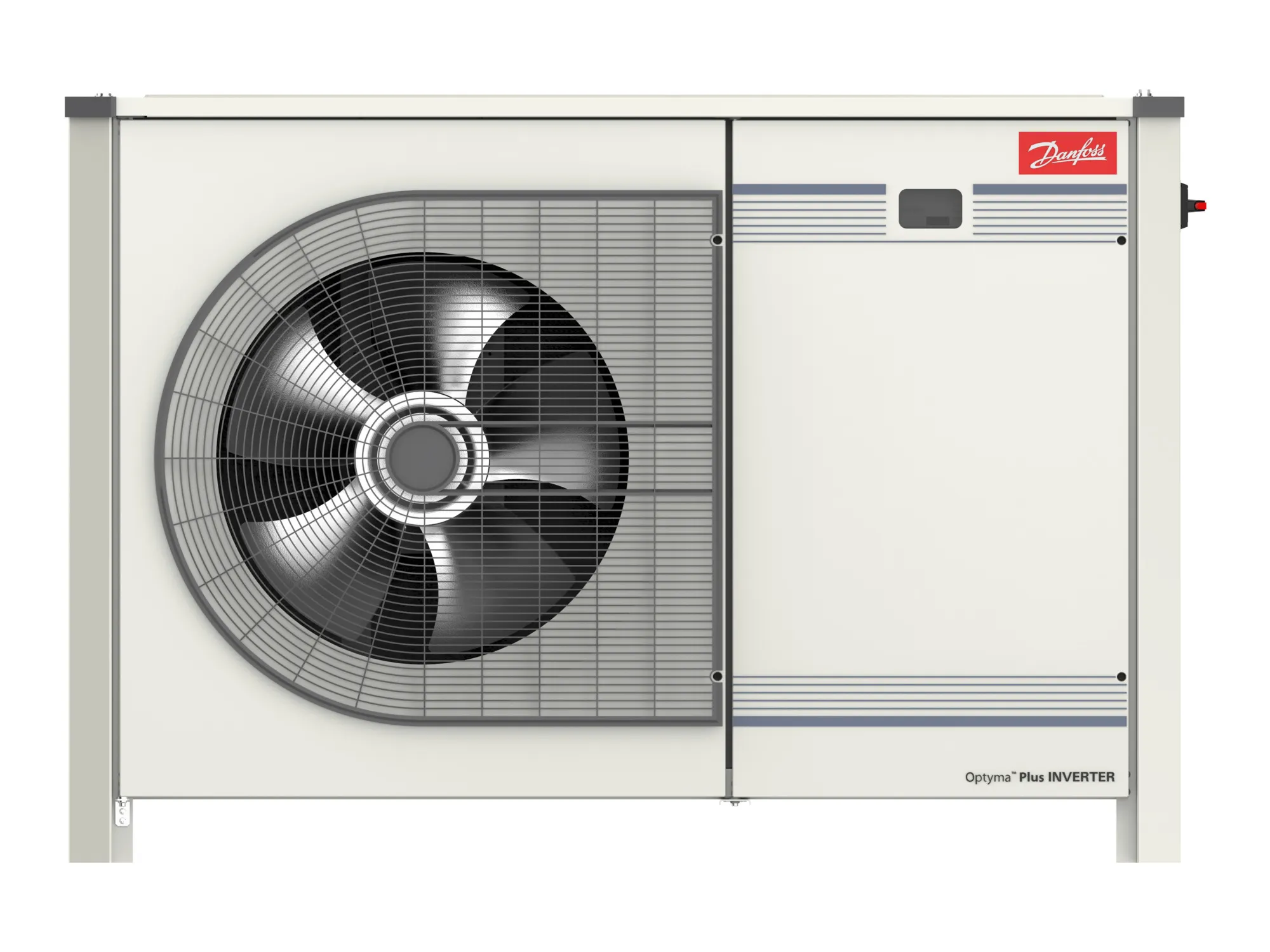

114X4309

Part Number: 114X4309
114X4309
Manufacturer
Danfoss
Part number
114X4309
Category

Product Information

Extended Description

114X4309 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
137 Kilogram
Net weight
101 Kilogram
Volume
0.738 Cubic meter
EAN
5702424592523
Air flow @ 50Hz [mÂł/h]
5200 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor Low pressure volume (L)
3.7 L
Compressor model
MLZ038T4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Condenser volume (L)
1.62
Connection type
Solder
Contain batteries
No
Description
OP-MPIM080MLP00E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
560 mm
Fan cowl/grill type
H3
Fan current @ 50Hz [A]
1.6 A
Fan diameter [mm]
560 mm
Fan power consumption @ 50Hz [W]
140 W
Fan power output @ 50Hz [W]
72 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.35
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
440 V
HMBP Cooling capacity [kW] (R513A)
5.63 kW
HMBP Cooling capacity range [kW] (R513A)
3.7 to 7 kW
LBP Cooling capacity range [kW] (R452A)
Not available for this condition / refrigerant
Length [mm]
531 mm
Liquid line connection [in]
5/8 in
Low value of nominal voltage at 50Hz [V]
380 V
LRA
70 A
MBP Cooling capacity [kW] (R449A)
8.54 kW
MBP Cooling capacity range [kW] (R449A)
8.3 to 17 kW
MCC
16.9 A
Min fuse rating [A]
20 A
Model number
OP-MPIM080MLP00E
Night operation noise pressure at 10m dB(A)
38 dBA
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
6.2 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R454C,R455A,R513A
RLA
10.8 A
SCIP dossier no.
79e44f1b-ab3b-44c1-b280-ba3435673604
SCIP dossier product name
OPTYMA P00 G7 J7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
80 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
63 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
43 dBA
Suction connection size [in]
3/4 in
Technology
Scroll
Total height [mm]
965 mm
Type
Optyma™ Plus P00 (A2L)
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
440 V
Volume (L)
0.171 L
Width [mm]
1441 mm
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3847
Electrical component, Contactor
118U3854
Electrical component, Main switch kit
118U3858
Housing, Door handle
118U4021
Pressure transmitter, Sensor
118U4025
Pressure transmitter, Sensor
118U5170
Connector, Plug
