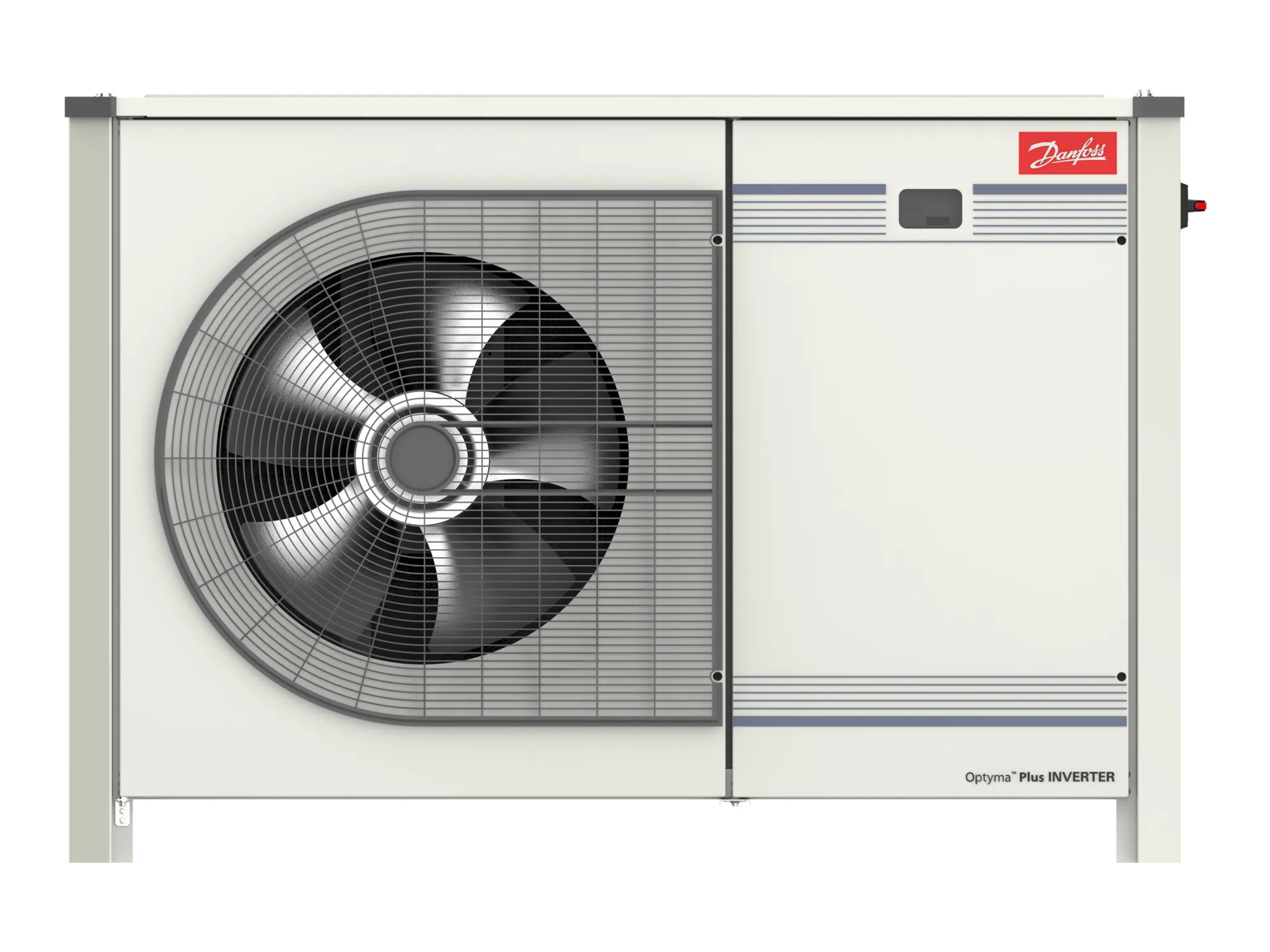

114X4321

Part Number: 114X4321
114X4321
Manufacturer
Danfoss
Part number
114X4321
Category

Product Information

Extended Description

114X4321 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A; R407A; R134a; R407F; R513A; R448A; R449A, Compressor power supply [V]: 230/1/50
Gross weight
137 Kilogram
Net weight
101 Kilogram
Volume
1193.216 Liter
EAN
5702428564533
Air flow @ 50Hz [mÂł/h]
5200 mÂł/h
Applications
MBP
China RoHS compliance
Out of scope
Compressor model
MLZ038T5
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Connection type
Solder
Contain batteries
No
Description
OP-MPXM080MLP00G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
500 mm
Fan cowl/grill type
H3
Fan current @ 50Hz [A]
0.96 A
Fan diameter [mm]
500 mm
Fan power consumption @ 50Hz [W]
190 W
Fan power output @ 50Hz [W]
104 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
240 V
HMBP Cooling capacity [kW] (R513A)
5.57 kW
HMBP Cooling capacity range [kW] (R513A)
3.7 to 7 kW
LBP Cooling capacity range [kW] (R452A)
Not available for this condition / refrigerant
Length [mm]
531 mm
Liquid line connection [in]
5/8 in
Low value of voltage range at 60Hz [V]
220 V
LRA
130 A
MBP Cooling capacity [kW] (R449A)
8.5 kW
MBP Cooling capacity range [kW] (R449A)
8.3 to 17 kW
MCC
38 A
Min fuse rating [A]
45 A
Model number
OP-MPXM080MLP00G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
6.2 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R507A,R513A
RLA
24.3 A
SCIP dossier no.
79e44f1b-ab3b-44c1-b280-ba3435673604
SCIP dossier product name
OPTYMA P00 G7 J7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
73 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
62 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
42 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
7/8 in
Technology
Scroll
Total height [mm]
965 mm
Type
Optyma™ Plus P00
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
220 V
Voltage 50Hz [V] [Max]
240 V
Width [mm]
1441 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3829
Fan system, Fan assembly
