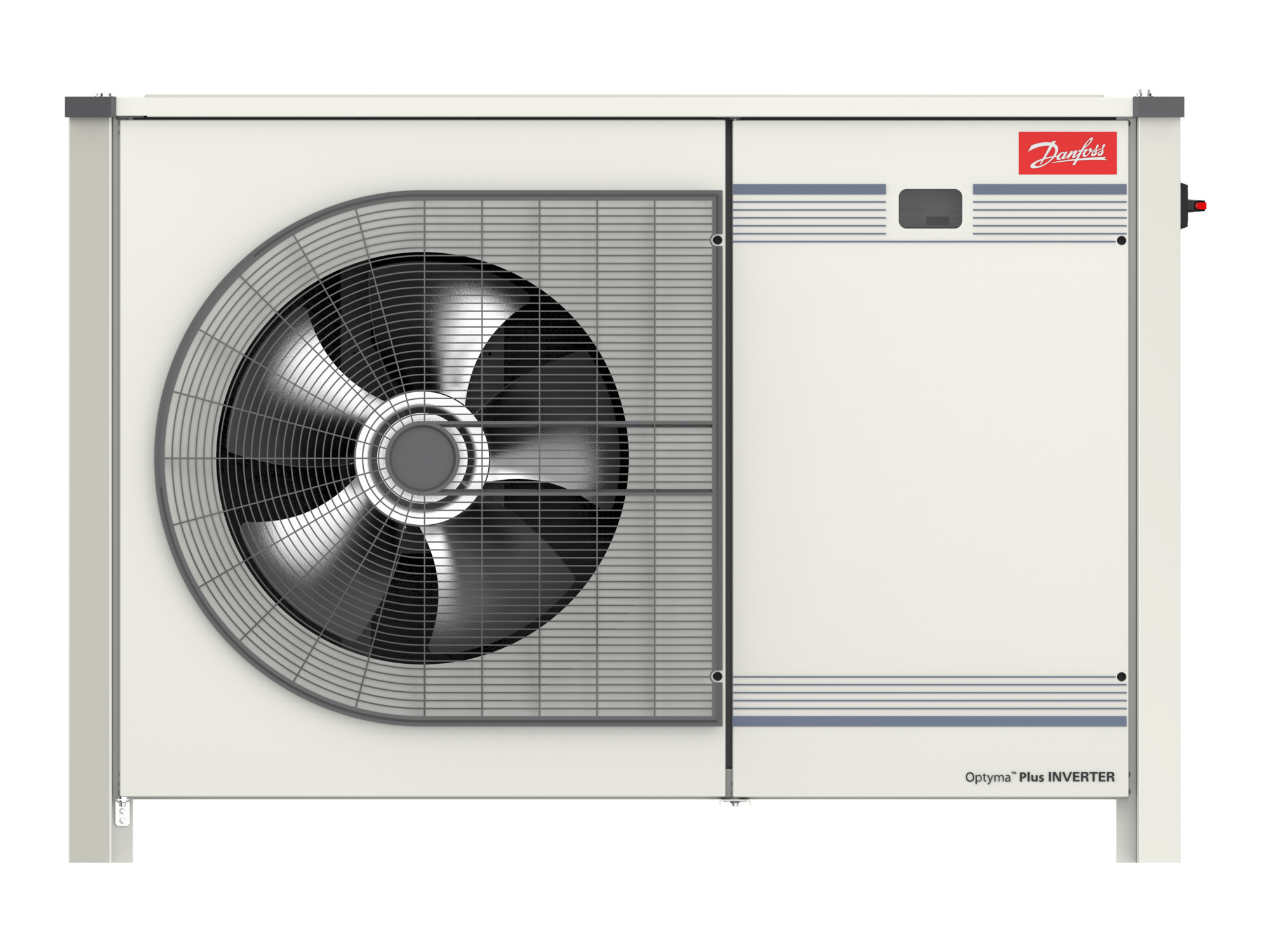

114X4334

Part Number: 114X4334
114X4334
Manufacturer
Danfoss
Part number
114X4334
Category

Product Information

Extended Description

114X4334 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R407A; R407F; R448A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
150.5 Kilogram
Net weight
124 Kilogram
Volume
1018.98 Liter
EAN
5702428564496
Air flow @ 50Hz [mÂł/h]
5200 mÂł/h
Applications
MBP
Capacity control
Inverter
China RoHS compliance
Out of scope
Compressor model
VLZ044TGA
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Connection type
Solder
Contain batteries
No
Description
OP-MPPM044VVLP01E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus INVERTER
Fan blade size [mm]
500 mm
Fan cowl/grill type
H3
Fan current @ 50Hz [A]
0.96 A
Fan diameter [mm]
500 mm
Fan power consumption @ 50Hz [W]
220 W
Fan power output @ 50Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
440 V
Length [mm]
481 mm
Liquid line connection [in]
5/8 in
Low value of nominal voltage at 50Hz [V]
360 V
MBP Cooling capacity [kW] (R449A)
9.25 kW
MCC
12.1 A
Min fuse rating [A]
20 A
Model number
OP-MPPM044VVLP01E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
6.2 L
Refrigerants
R404A,R448A,R449A,R407A,R407F
RLA
10.5 A
SCIP dossier no.
9c693fb6-7e2f-4820-aa0e-bb81dfaad435
SCIP dossier product name
OPTYMA P01 G7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
74 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
63 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
43 dBA
Suction connection size [in]
3/4 in
Technology
Scroll
Total height [mm]
965 mm
Type
Optyma™ Plus INVERTER P01
UK RoHS compliance
Out of scope
Variable speed approved frequency
50 Hz
Version
P01
Voltage 50Hz [V]
360 V
Voltage 50Hz [V] [Max]
440 V
Width [mm]
1406 mm
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3829
Fan system, Fan assembly
118U3847
Electrical component, Contactor
118U3854
Electrical component, Main switch kit
118U3858
Housing, Door handle
118U3974
Electrical component, Controller
118U4037
Connector, Plug
