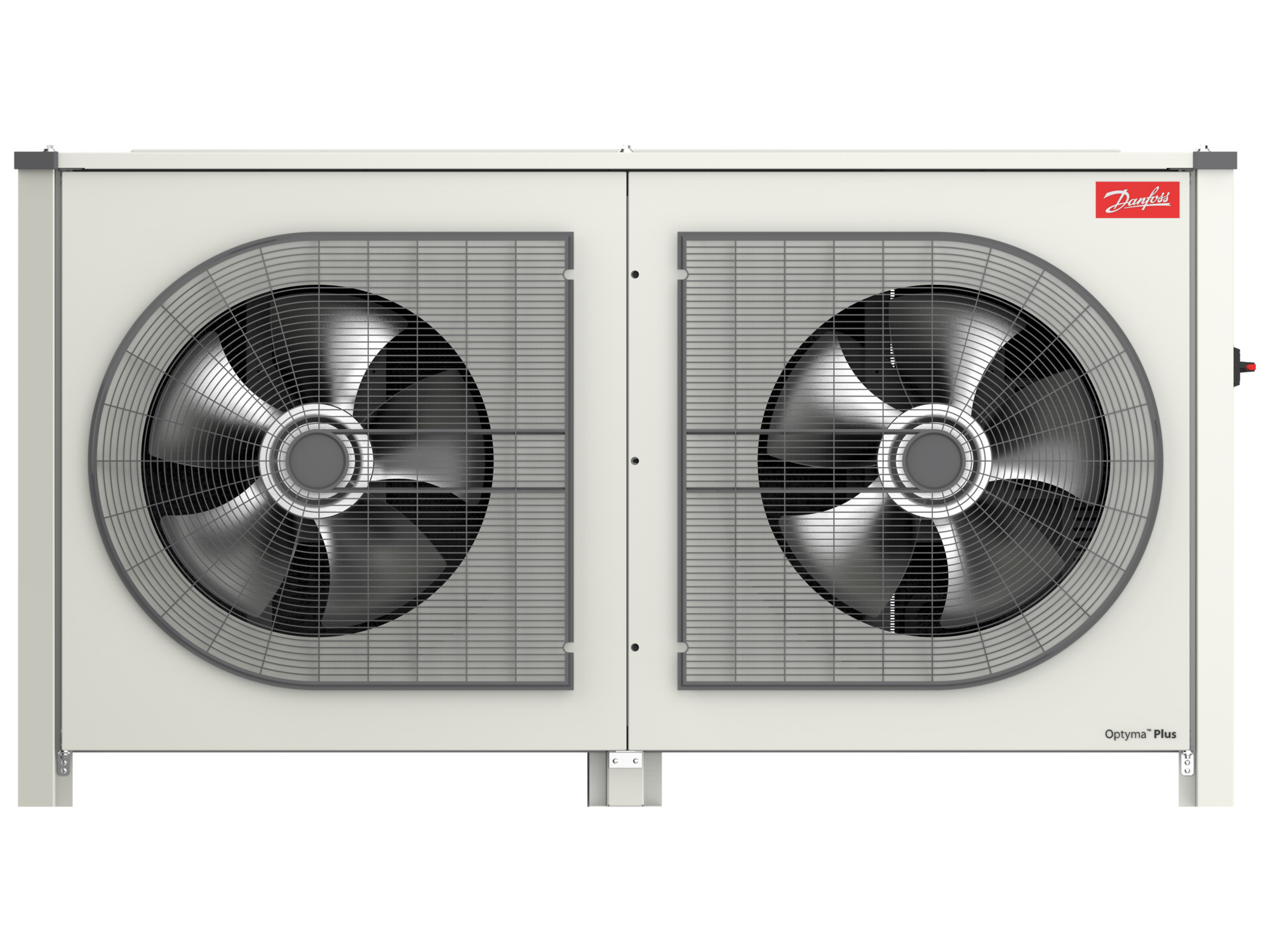

114X4401

Part Number: 114X4401
114X4401
Manufacturer
Danfoss
Part number
114X4401
Category

Product Information

Extended Description

114X4401 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A; R407A; R134a; R407F; R513A; R448A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
218 Kilogram
Net weight
169 Kilogram
Volume
1719.218 Liter
EAN
5702424058371
Air flow @ 50Hz [mÂł/h]
9500 mÂł/h
Applications
MBP
China RoHS compliance
Out of scope
Compressor model
MLZ058T4
Compressor power supply [V]
400/3/50
Condenser type
J7
Connection type
Solder
Contain batteries
No
Description
OP-MPXM125MLP05E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
500 mm
Fan cowl/grill type
H4
Fan current @ 50Hz [A]
0.96 A
Fan diameter [mm]
500 mm
Fan power consumption @ 50Hz [W]
220 W
Fan power output @ 50Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
Length [mm]
600 mm
Liquid line connection [in]
3/4 in
Low value of nominal voltage at 50Hz [V]
380 V
MCC
20 A
Model number
OP-MPXM125MLP05E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
10 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R507A,R513A
RLA
14.3 A
SCIP dossier no.
b68f1a4c-275a-49e3-9b5b-0ede5f81f01f
SCIP dossier product name
OPTYMA P05 D7 G7 J7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
77 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
46 dBA
Suction connection size [in]
1 1/8 in
Technology
Scroll
Total height [mm]
966 mm
Type
Optyma™ Plus P05
UK RoHS compliance
Out of scope
Version
P05
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1800 mm
118U4021
Pressure transmitter, Sensor
118U4025
Pressure transmitter, Sensor
120Z5085
Acoustic hood, Scroll
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
Optyma™ Packaged condensing units Convenience Store_CU Brochure Optyma™ Plus Control Unit quick starting procedure Optyma™ Plus Controller installation V3.7 Danfoss DOI EU-UK 118A2398.AE Danfoss EU-UK 118A5048.AF Condensers Danfoss MD 118A4193.AE TÜV 0045 202 9070 Z 00506 21 D 001(04) OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E Piping Information Diagram Optyma Plus OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E
