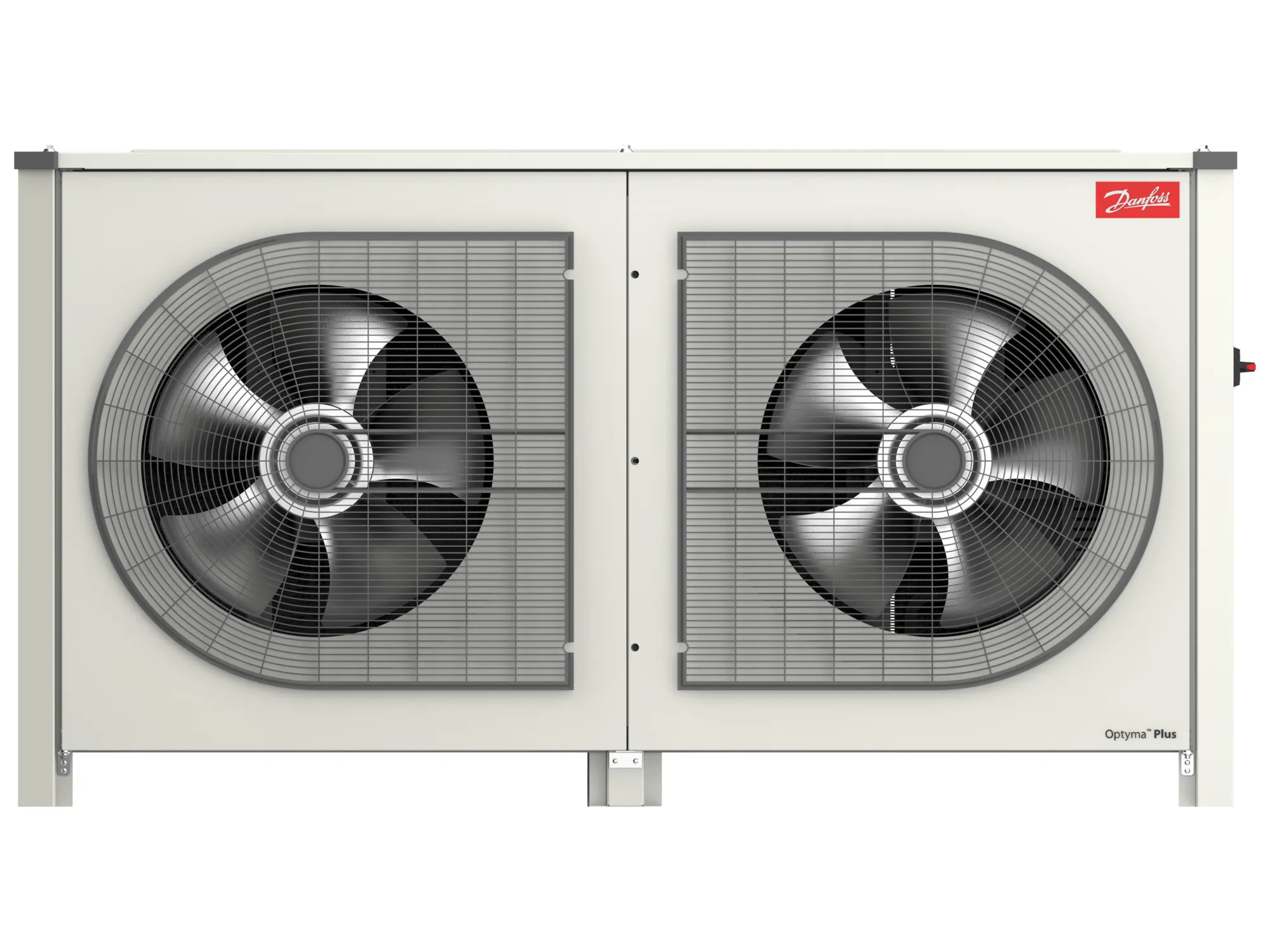

114X4404
Part Number: 114X4404
Product Information
Extended Description
114X4404 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A; R407A; R134a; R407F; R513A; R448A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
218 Kilogram
Net weight
169 Kilogram
Volume
1749.15 Liter
EAN
5702424295264
Air flow @ 50Hz [mÂł/h]
9500 mÂł/h
Applications
MBP
China RoHS compliance
Out of scope
Compressor model
MLZ076T4
Compressor power supply [V]
400/3/50
Condenser type
J7
Connection type
Solder
Contain batteries
No
Description
OP-MPXM162MLP06E
Electrical code
E
Family
Optyma™ Plus
Fan blade size [mm]
500 mm
Fan cowl/grill type
H4
Fan current @ 50Hz [A]
0.96 A
Fan diameter [mm]
500 mm
Fan power consumption @ 50Hz [W]
220 W
Fan power output @ 50Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
Length [mm]
600 mm
Liquid line connection [in]
3/4 in
Low value of nominal voltage at 50Hz [V]
380 V
MCC
25 A
Model number
OP-MPXM162MLP06E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
10 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R507A,R513A
RLA
17.9 A
SCIP dossier no.
4493f41c-888e-4020-8538-3b6e09cd27c5
SCIP dossier product name
OPTYMA P06 J7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
77 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
46 dBA
Suction connection size [in]
1 1/8 in
Technology
Scroll
Total height [mm]
966 mm
Type
Optyma™ Plus P06
UK RoHS compliance
Out of scope
Version
P06
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1800 mm
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
084B8571
Electron. control accessories, EKA 178B, Modbus Module, Data comm., EKC 300; EKC 500
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
084B8582
Electron. control accessories, EKA 183A, Accessory, Programming Key, EKC Controllers
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
118U3465
Electrical component, Controller
118U3485
Fan system, Fan grill
118U3718
Pressure switch, Cartridge pressure switch
118U3720
Pressure switch, Cartridge pressure switch
118U3829
Fan system, Fan assembly
120Z5085
Acoustic hood, Scroll
Convenience Store_CU Brochure
Optyma™ Plus Control Unit quick starting procedure
Optyma™ Plus Controller installation V3.7
Optyma™ Packaged condensing units (SA)
Condensers
Danfoss MD 118A4193.AE
OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E
OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E
OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E
OP-MPXM125MLP05E; OP-MPXM162MLP05E; OP-MPXM125MLP06E; OP-MPXM162MLP06E
Optyma Plus_Housing 4
