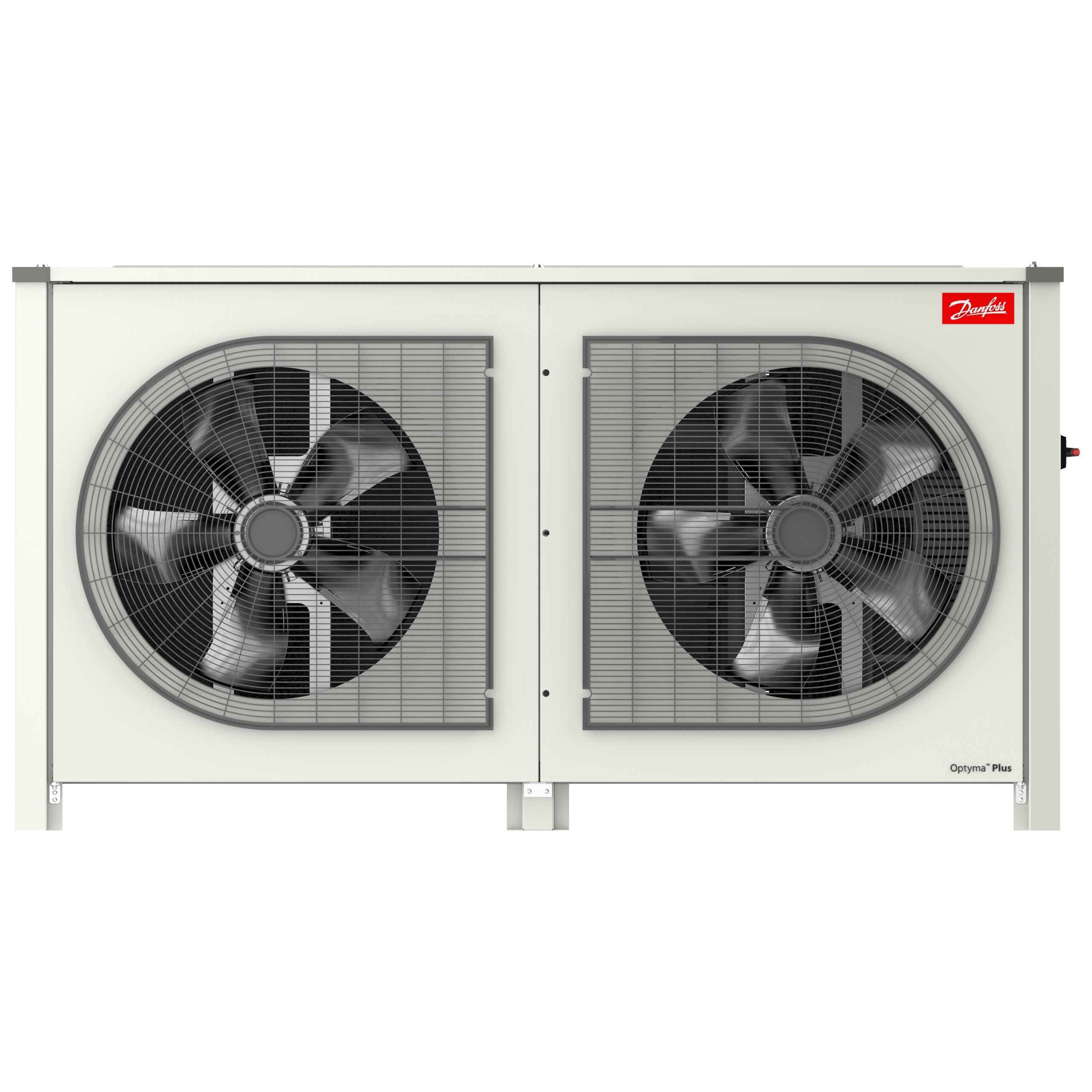

114X4410

Part Number: 114X4410
114X4410
Manufacturer
Danfoss
Part number
114X4410
Category

Product Information

Extended Description

114X4410 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
230 Kilogram
Net weight
180 Kilogram
Volume
115.2 Liter
EAN
5702424596590
Air flow @ 50Hz [mÂł/h]
9200 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor Low pressure volume (L)
5.4 L
Compressor model
MLZ076T4B
Compressor power supply [V]
400/3/50
Condenser type
J7
Condenser volume (L)
1.97
Connection type
Solder
Contain batteries
No
Description
OP-MPIM162MLP00E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Plus
Fan blade size [mm]
560 mm
Fan cowl/grill type
H4
Fan current @ 50Hz [A]
1.6 A
Fan diameter [mm]
560 mm
Fan power consumption @ 50Hz [W]
140 W
Fan power output @ 50Hz [W]
72 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.35
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
HMBP Cooling capacity [kW] (R513A)
10.78 kW
HMBP Cooling capacity range [kW] (R513A)
7 to 11 kW
LBP Cooling capacity range [kW] (R452A)
Not available for this condition / refrigerant
Length [mm]
650 mm
Liquid injection
Yes
Liquid line connection [in]
3/4 in
Low value of nominal voltage at 50Hz [V]
380 V
LRA
140 A
MBP Cooling capacity [kW] (R449A)
16.41 kW
MBP Cooling capacity range [kW] (R449A)
8.3 to 17 kW
MCC
25 A
Min fuse rating [A]
32 A
Model number
OP-MPIM162MLP00E
Night operation noise pressure at 10m dB(A)
42 dBA
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Number of receivers
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),N,N-dimethylacetamide (CAS no. 127-19-5),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE,UKCA,Morocco
Receiver type
Vertical
Receiver volume [L]
10 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R454C,R455A,R513A
RLA
19.2 A
SCIP dossier no.
79e44f1b-ab3b-44c1-b280-ba3435673604
SCIP dossier product name
OPTYMA P00 G7 J7
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
77 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
66 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
46 dBA
Suction connection size [in]
1 1/8 in
Technology
Scroll
Total height [mm]
966 mm
Type
Optyma™ Plus P00 (A2L)
UK RoHS compliance
Out of scope
Version
P00
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Volume (L)
0.584 L
Width [mm]
1835 mm
121L8453
Scroll compressor, MLZ076T4LC9B
120Z0895
Crankcase heater, Belt heater
023Z5046
Hermetic filter drier, DML, 16 cu.in., Steel
