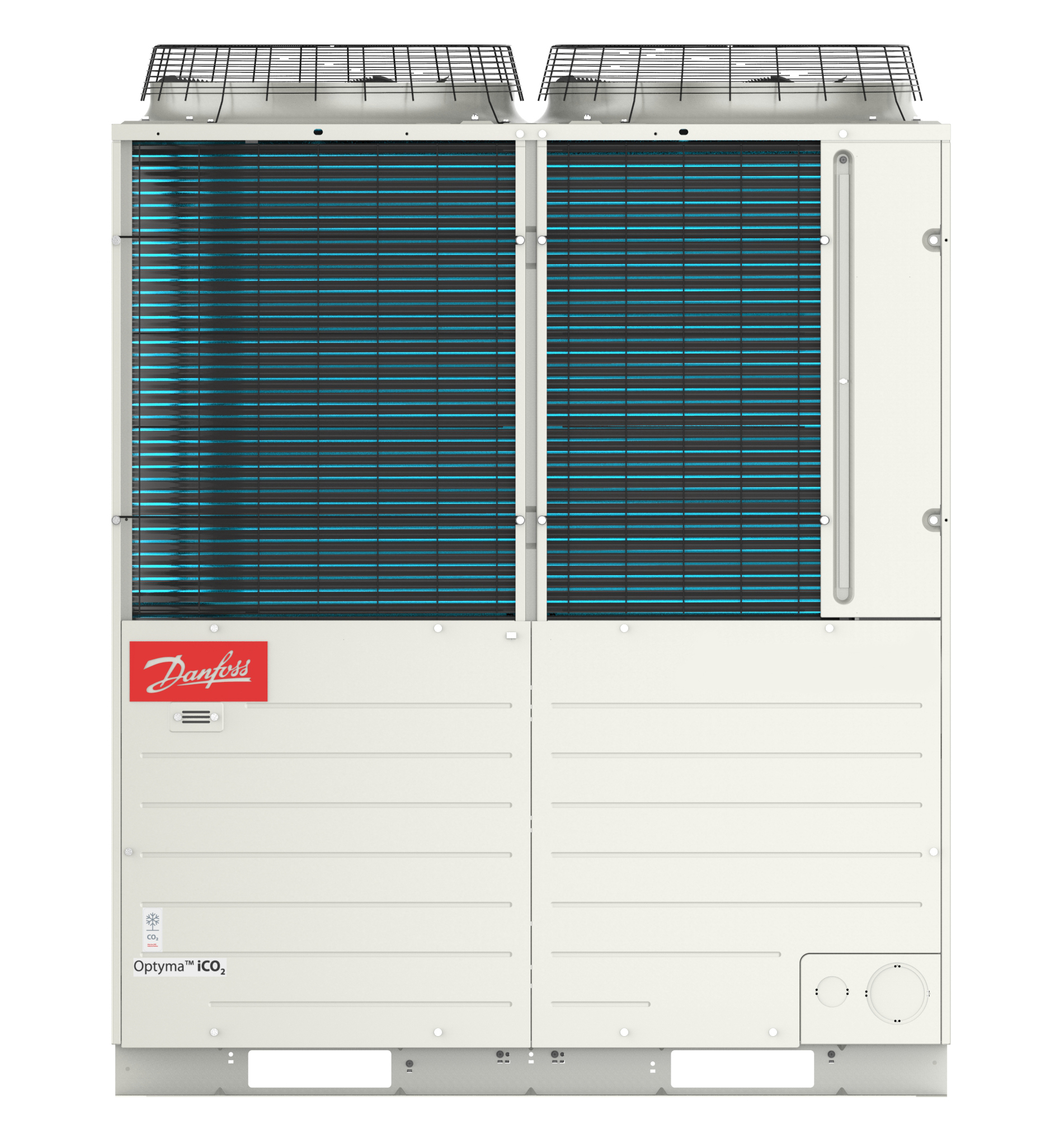

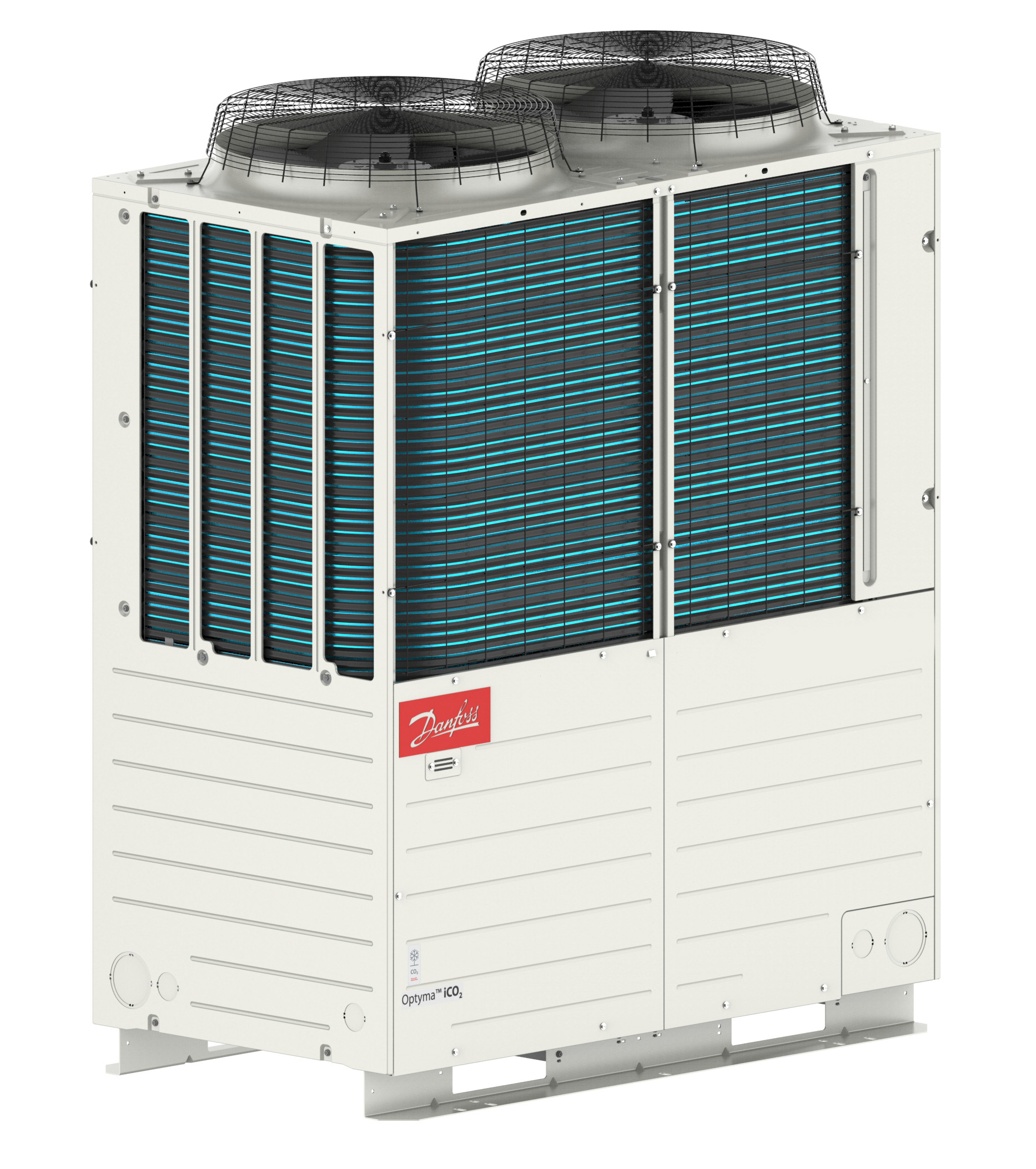

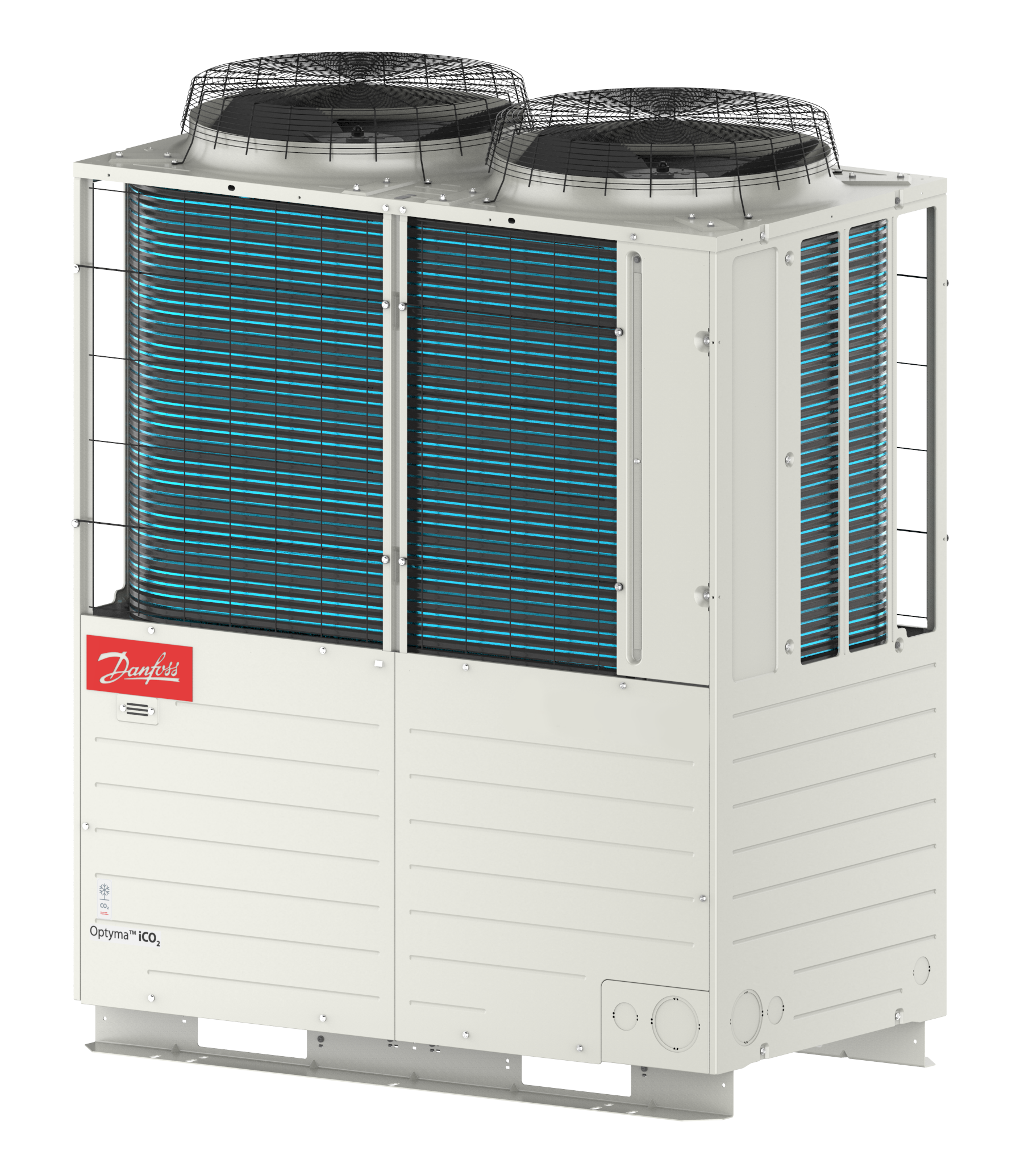

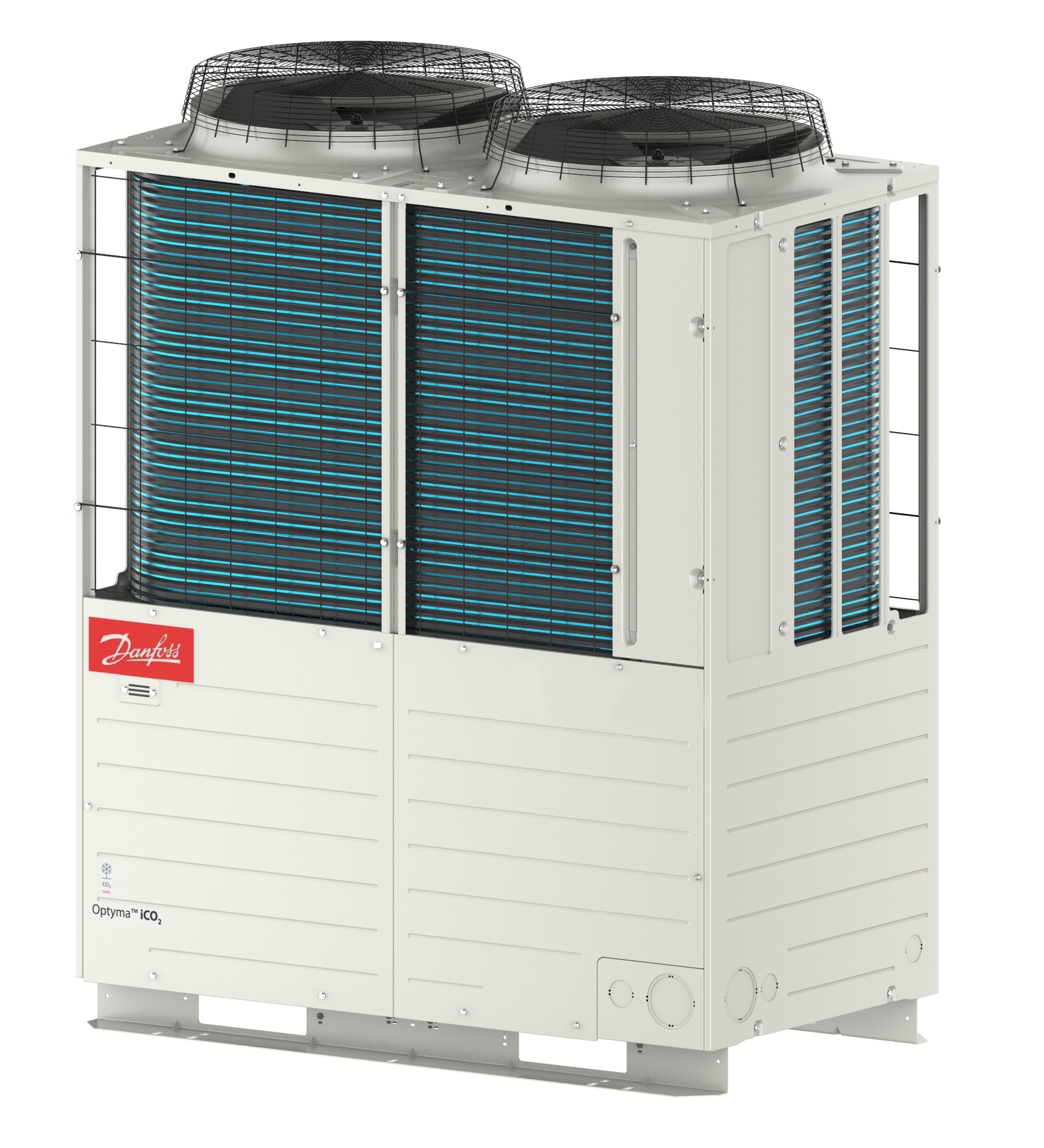

114X6003

Part Number: 114X6003
114X6003
Manufacturer
Danfoss
Part number
114X6003
Category

Product Information

Extended Description

114X6003 Danfoss: Segment usage: Refrigeration LT; Refrigeration MT, Refrigerants: R744, Compressor power supply [V]: 400/3/50, Mandatory accessory: Module controller assembly (118U5498) is not included with the unit and must be ordered separately. Oil tank (LCA006A008) upon oil charge calculation method given inside application; Note that the use of AK-CC55 single coil and AKVP pulsating expansion valve are mandatories
Gross weight
360 Kilogram
Net weight
340 Kilogram
Volume
1744 Liter
EAN
5702424547202
Accumulator volume [L]
7.2 L
Air flow @ 50Hz [mÂł/h]
15120 mÂł/h
Applications
HBP,LBP,MBP
Approval
CE,UKCA
Capacity control
Inverter
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
VCO015T4E
Compressor power supply [V]
400/3/50
Connection type
Solder
Contain batteries
No
Description
OP-UPAC015COP04E
Design Pressure High [bar]
140 bar
Design Pressure Low [bar]
80 bar
Electrical code
E
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Family
Optyma™ iCO2
Fan blade size [mm]
572 mm
Fan cowl/grill type
Grill
Fan current @ 50Hz [A]
3.65 A
Fan diameter [mm]
570 mm
Fan power output @ 50Hz [W]
386 W
Fan power supply [V/Ph/Hz]
280/339V DC
Frequency [Hz]
50 Hz
Gas cooler internal volume [L]
6.1 L
High value of nominal voltage at 50Hz [V]
415 V
Length [mm]
1350 mm
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
400 V
Mandatory accessory
Module controller assembly (118U5498) is not included with the unit and must be ordered separately. Oil tank (LCA006A008) upon oil charge calculation method given inside application,Note that the use of AK-CC55 single coil and AKVP pulsating expansion valve are mandatories
Max pressure (PS) - high side
140 bar
Max pressure (PS) - low side
80 bar
MCC
19 A
Min fuse rating [A]
25 A
Model number
OP-UPAC015COP04E
No. of phases (compressor)
3
Number of fans
2
Number of receivers
2
Oil separator volume [L]
0.87 L
Oil type
Diamond freeze MA68
PED category
II
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
Receiver approval
CE,EAC
Receiver volume [L]
7.6 L
Refrigerants
R744
RLA
16.5 A
Segment usage
Refrigeration LT,Refrigeration MT
Sound pressure level 50Hz (@1 m distance) [db(A)]
62 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
42 dBA
Suction connection size [in]
3/4 in
Total height [mm]
1692 mm
TS max
43 °C
TS min
-20 °C
Type
Optyma™ iCO2 P04
UK RoHS compliance
Yes
Version
P04
Voltage 50Hz [V]
400 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
764 mm
SSA357A050
Miscellaneous, Strainer
PCB505A035H
Electrical component, Circuit breaker
SSA388P001
Connector, Valve
LCA551A002
Temperature sensor, Sensor assembly
PCB505A107CB
Electrical component, Circuit breaker
PCB554A021
Electrical component, Transformer
LCA006A007
Miscellaneous, Oil
SSA385A053A
Connector, Valve
PCM315B005
Connector, Capillary hose
PCM504A018K
Electrical component, Wiring assembly
118U5498
Electrical component, Module
DF-MA68-0.5L
Miscellaneous, Oil
DF-MA68-4.0L
Miscellaneous, Oil
