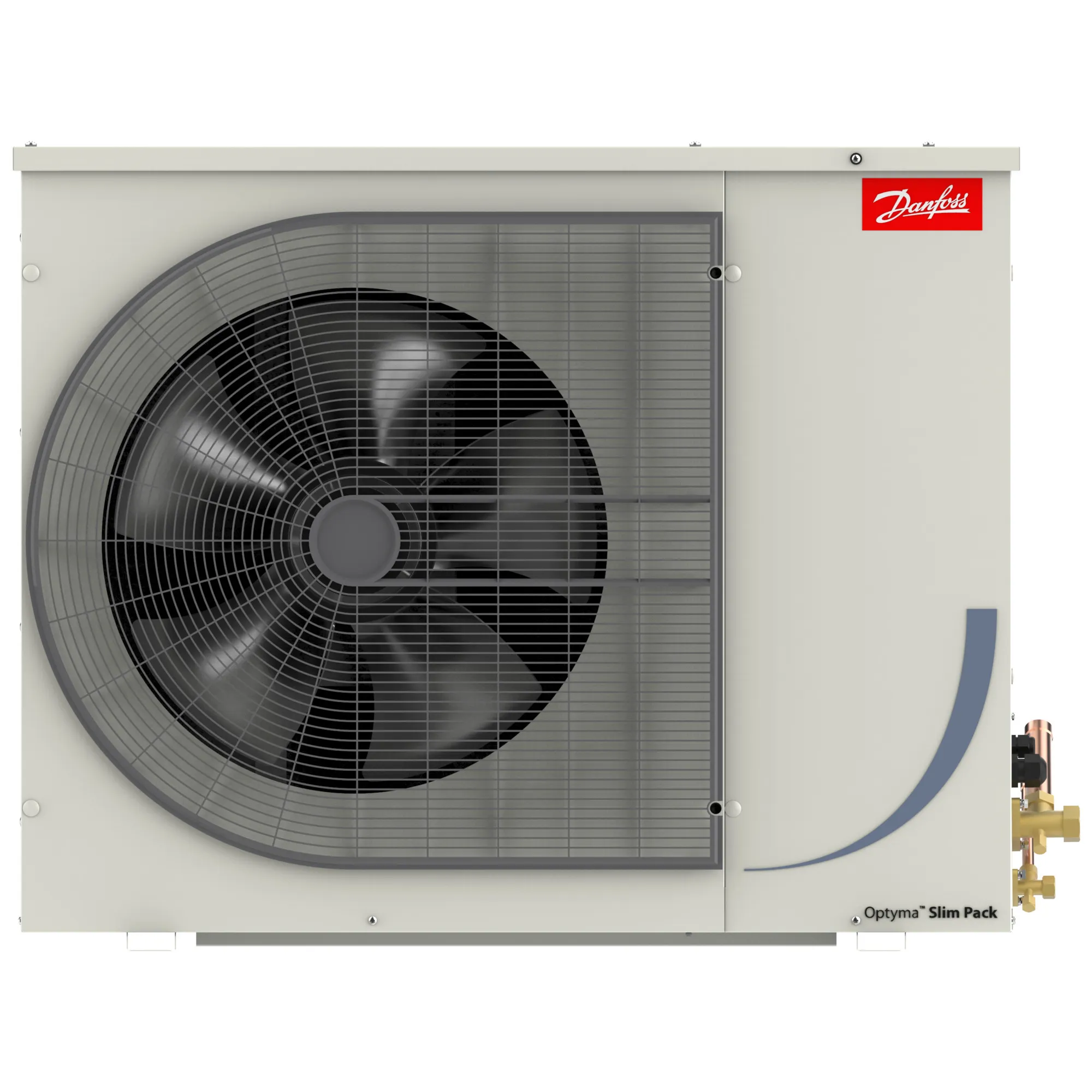

114X7259

Part Number: 114X7259
114X7259
Manufacturer
Danfoss
Part number
114X7259
Category

Product Information

Extended Description

114X7259 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
Gross weight
114 Kilogram
Net weight
100 Kilogram
Volume
640.2 Liter
EAN
5702424295189
Air flow @ 50Hz [m³/h]
8700 m³/h
Applications
LBP
Compressor model
LLZ013T4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mm³
Condenser type
G7
Connection type
Solder
Contain batteries
No
Description
OP-LPQE067LLW12E
Electrical code
E
Family
Optyma™ Slim Pack
Fan blade size [mm]
600 mm
Fan cowl/grill type
B3
Fan current @ 50Hz [A]
1.51 A
Fan diameter [mm]
600 mm
Fan power consumption @ 50Hz [W]
342 W
Fan power output @ 50Hz [W]
370 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
Length [mm]
464 mm
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
380 V
MCC
12 A
Model number
OP-LPQE067LLW12E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
6.2 L
Refrigerants
R404A,R452A,R507A
RLA
62 A
SCIP dossier no.
a1991182-9623-42ba-8851-c12fbea8c579
SCIP dossier product name
OPTYMA W12
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
71 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
60 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
60 dBA
Suction connection size [in]
3/4 in
Technology
Scroll
Total height [mm]
830 mm
Type
Optyma™ Slim Pack W12
Version
W12
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1106 mm
120Z5052
Acoustic hood, Scroll
118U5154
Housing, Sheet metal
118U3873
Electrical component, Circuit breaker
118U5151
Housing, Sheet metal
118U5153
Housing, Sheet metal
118U3767
Fan system, Fan motor
121L9535
Scroll compressor, LLZ013T4LQ9A
118U3476
Tank, Receiver
118U3485
Fan system, Fan grill
7750009
Electrical component, Discharge thermostat kit
