114X7261

Part Number: 114X7261
114X7261
Manufacturer
Danfoss
Part number
114X7261
Category

Product Information

Extended Description

114X7261 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
Gross weight
115 Kilogram
Net weight
100 Kilogram
Volume
610.54 Liter
EAN
5702424295202
Air flow @ 50Hz [mÂł/h]
8700 mÂł/h
Applications
LBP
Compressor model
LLZ018T4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Connection type
Solder
Contain batteries
No
Description
OP-LPQE098LLW12E
Electrical code
E
Family

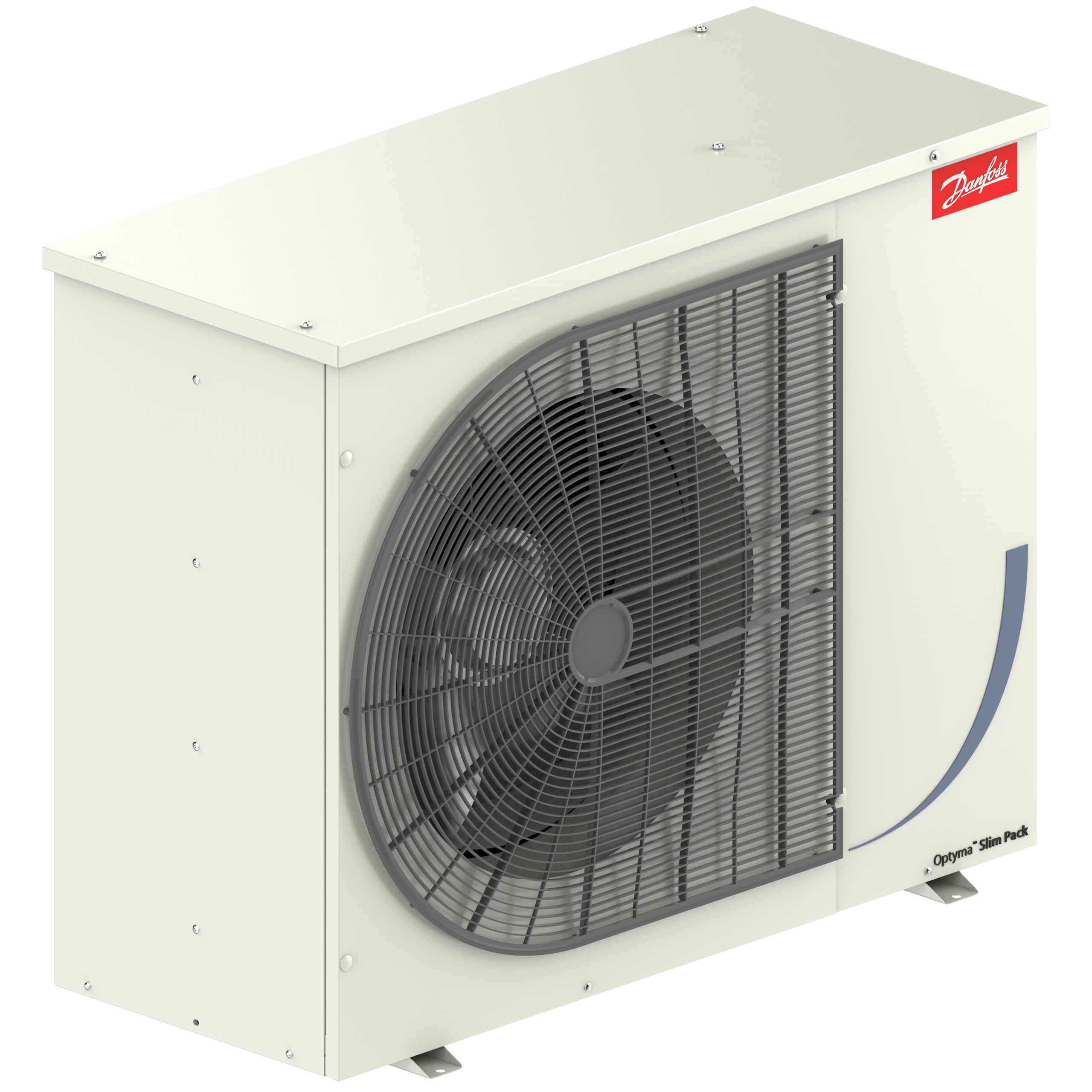

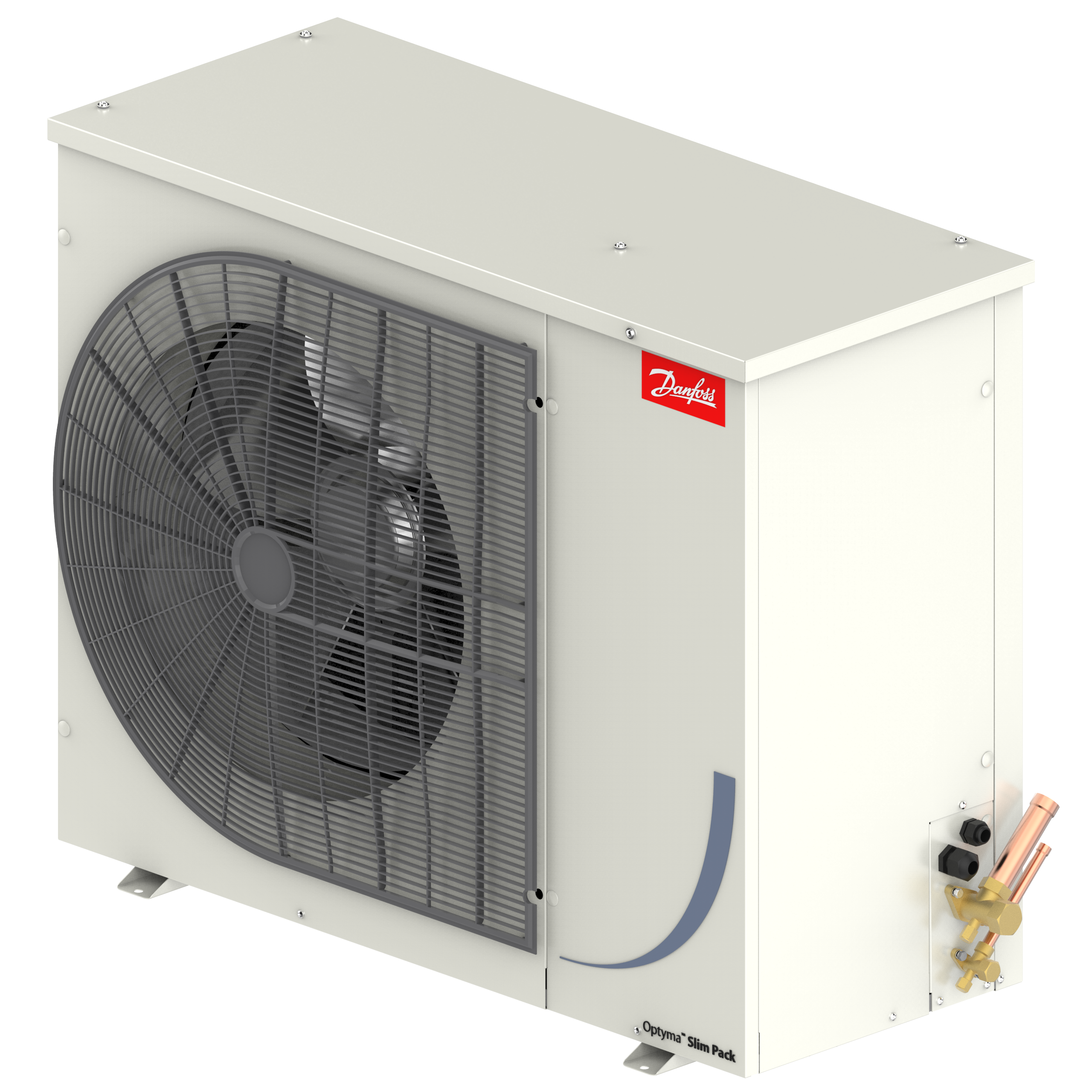

Optyma™ Slim Pack
Fan blade size [mm]
600 mm
Fan cowl/grill type
B3
Fan current @ 50Hz [A]
1.51 A
Fan diameter [mm]
600 mm
Fan power consumption @ 50Hz [W]
342 W
Fan power output @ 50Hz [W]
370 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
Length [mm]
464 mm
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
380 V
MCC
14.4 A
Model number
OP-LPQE098LLW12E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
6.2 L
Refrigerants
R404A,R452A,R507A
RLA
90 A
SCIP dossier no.
a1991182-9623-42ba-8851-c12fbea8c579
SCIP dossier product name
OPTYMA W12
Segment usage
Low Back Pressure
Sound power @ 50Hz [db(A)]
74 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
63 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
63 dBA
Suction connection size [in]
3/4 in
Technology
Scroll
Total height [mm]
830 mm
Type
Optyma™ Slim Pack W12
Version
W12
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1106 mm
118U3485
Fan system, Fan grill
118U5152
Housing, Sheet metal
118U5169
Housing, Sheet metal
7750009
Electrical component, Discharge thermostat kit
118U3896
Electrical component, Contactor
118U5151
Housing, Sheet metal
120Z5052
Acoustic hood, Scroll
120Z0648
Lubricant, 215PZ
118U3767
Fan system, Fan motor
118U5154
Housing, Sheet metal

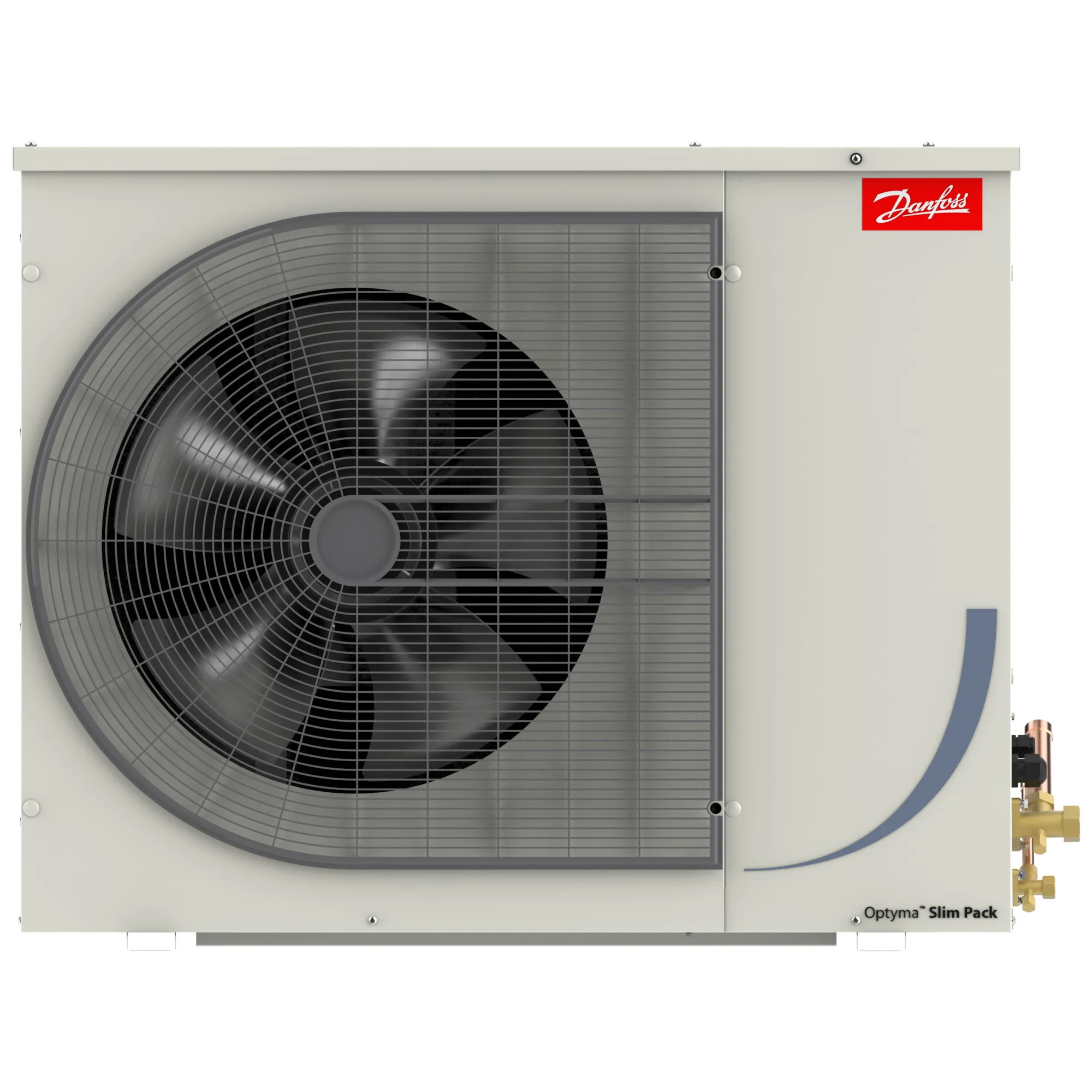

Convenience Store_CU Brochure Optyma™ Packaged condensing units (SA) Optyma™ Plus OP-LPQM, OP-MPXM PRV (W12) Optyma™ Slim Pack OP-LPQE/MPJE - PRV(W12) Condensers OP-LPQE067/084/098LLW04/W10/W12E - OP-LSQM067/084/098LLW05/W09E - OP-MPJE068/080/099/108MLW12E - OP-MPVE068/080/099/108MLW02/W04W04W10E/G - OP-MSXM068/080/099/108MLW05/W09E/G OP-LPQE067/084/098LLW04/W10/W12E - OP-LSQM067/084/098LLW05/W09E - OP-MPJE068/080/099/108MLW12E - OP-MPVE068/080/099/108MLW02/W04W04W10E/G - OP-MSXM068/080/099/108MLW05/W09E/G Optyma Slim Pack W05 front view OP-LPQE067/084/098LLW04/W10/W12E - OP-LSQM067/084/098LLW05/W09E - OP-MPJE068/080/099/108MLW12E - OP-MPVE068/080/099/108MLW02/W04W04W10E/G - OP-MSXM068/080/099/108MLW05/W09E/G OP-LPQE067/084/098LLW04/W10/W12E - OP-LSQM067/084/098LLW05/W09E - OP-MPJE068/080/099/108MLW12E - OP-MPVE068/080/099/108MLW02/W04W04W10E/G - OP-MSXM068/080/099/108MLW05/W09E/G
