114X7262
Part Number: 114X7262
Product Information
Extended Description
114X7262 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A; R134a; R513A; R22; R448A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
91 Kilogram
Net weight
73 Kilogram
Volume
544.32 Liter
EAN
5702424295219
Air flow @ 50Hz [mÂł/h]
5100 mÂł/h
Applications
MBP
Compressor model
MLZ026T4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
0.58 L
Condenser type
D7
Connection type
Solder
Contain batteries
No
Description
OP-MPJE057MLW12E
Electrical code
E
Family
Optyma™ Slim Pack
Fan blade size [mm]
457 mm
Fan cowl/grill type
B2
Fan current @ 50Hz [A]
1.1 A
Fan diameter [mm]
457 mm
Fan power consumption @ 50Hz [W]
244 W
Fan power output @ 50Hz [W]
135 W
Fan power supply [V/Ph/Hz]
230/1/50
Fan voltage @ 50Hz (max) [V] [Max]
230 V
Fan voltage @ 50Hz (max) [V] [Min]
230 V
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
415 V
Length [mm]
464 mm
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
380 V
MCC
10 A
Model number
OP-MPJE057MLW12E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7)
Receiver approval
CE
Receiver volume [L]
3.4 L
Refrigerants
R134a,R22,R404A,R448A,R449A,R452A,R507A,R513A
RLA
6.4 A
SCIP dossier no.
a1991182-9623-42ba-8851-c12fbea8c579
SCIP dossier product name
OPTYMA W12
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
69 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
58 dBA
Suction connection size [in]
3/4 in
Technology
Scroll
Total height [mm]
695 mm
Type
Optyma™ Slim Pack W12
Version
W12
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
415 V
Width [mm]
1106 mm
118U3475
Tank, Receiver
118U3484
Fan system, Fan grill
118U3763
Connector, Service valve
118U3765
Fan system, Fan motor
118U3766
Fan system, Fan blade
118U3870
Electrical component, Circuit breaker
118U3873
Electrical component, Circuit breaker
118U5146
Housing, Sheet metal
118U5147
Housing, Sheet metal
118U5148
Housing, Sheet metal
Convenience Store_CU Brochure
Optyma™ Packaged condensing units (SA)
Optyma™ Plus OP-LPQM, OP-MPXM PRV (W12)
Optyma™ Slim Pack OP-LPQE/MPJE - PRV(W12)
Condensers
OP-LPQE048/068NTW04/W10/W12/W12G/E - OP-LSQM026/034AJW05/W09G - OP-LSQM068FHW05G - OP-LSQM048/068NTW05/W09E/G - OP-MPZE060MTW02G - OP-MPJE034/034/046/057MLW12E/G - OP-MPVE034/046/057MLW02/W04/W10E/G - OP-MSXM034/044/046/057MLW05/W09/W05E/G
OP-LPQE048/068NTW04/W10/W12/W12G/E - OP-LSQM026/034AJW05/W09G - OP-LSQM068FHW05G - OP-LSQM048/068NTW05/W09E/G - OP-MPZE060MTW02G - OP-MPJE034/034/046/057MLW12E/G - OP-MPVE034/046/057MLW02/W04/W10E/G - OP-MSXM034/044/046/057MLW05/W09/W05E/G

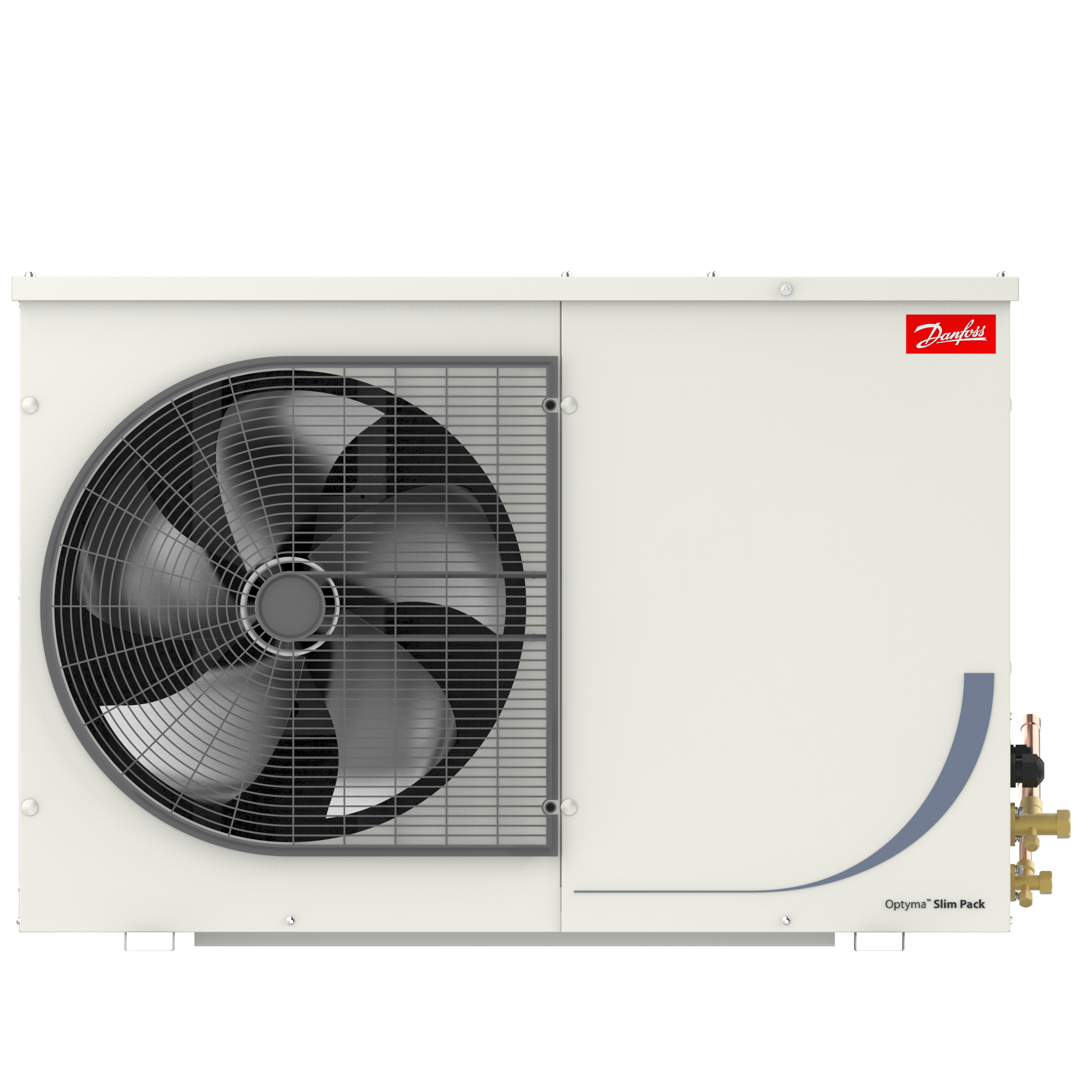

Optyma Slim Pack W05 front view
