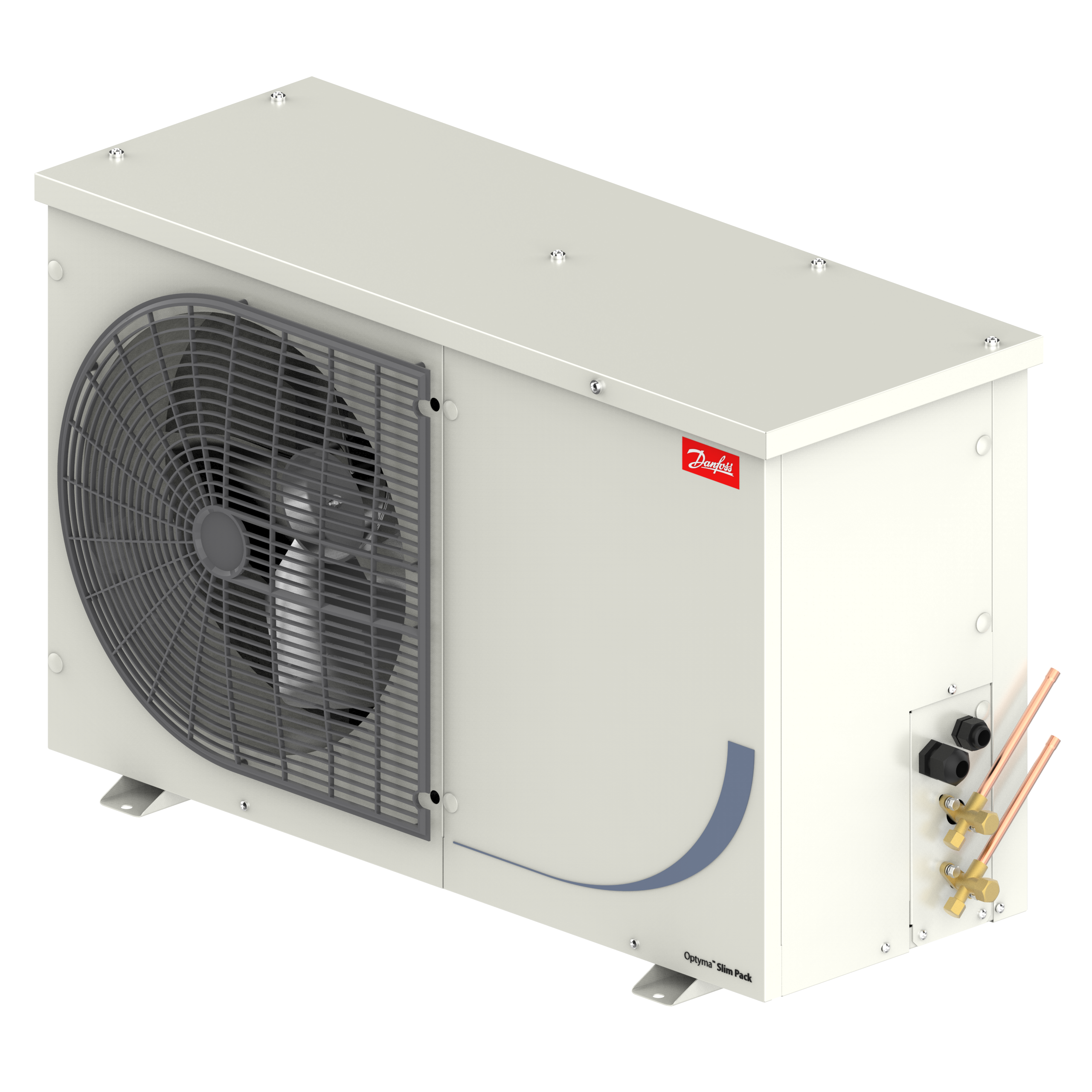

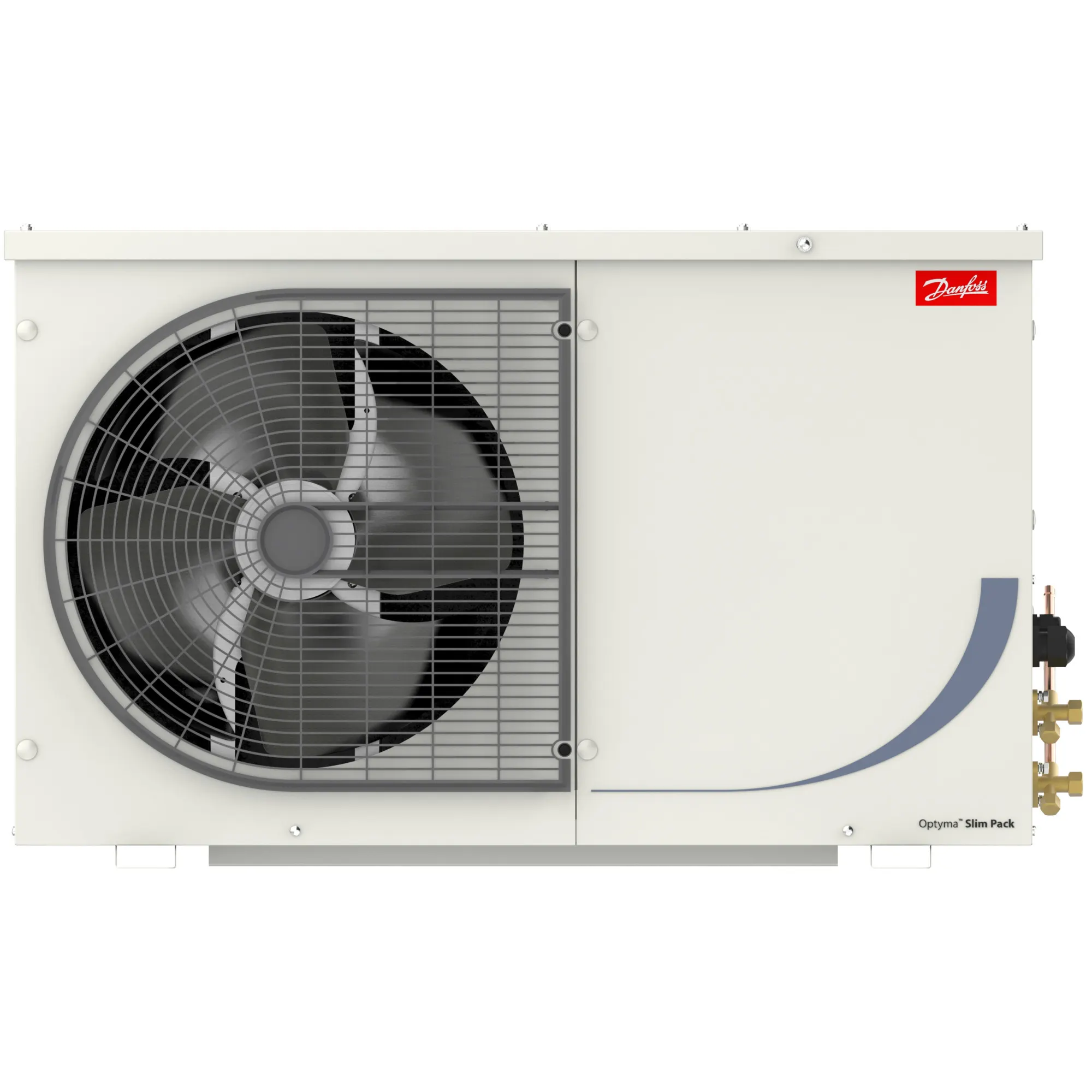

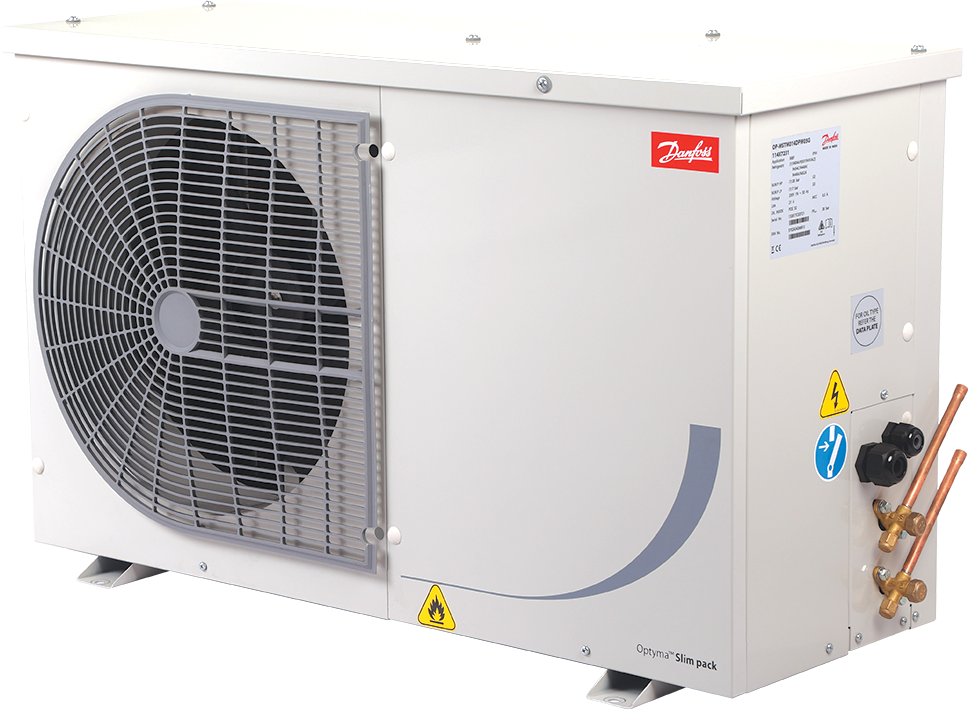

114X7263

Part Number: 114X7263
114X7263
Manufacturer
Danfoss
Part number
114X7263
Category

Product Information

Extended Description

114X7263 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A; R454C; R455A, Compressor power supply [V]: 230/1/50
Gross weight
67 Kilogram
Net weight
52 Kilogram
Volume
309.672 Liter
EAN
5702424288891
Air flow @ 50Hz [m³/h]
2200 m³/h
Applications
LBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
DPT14LA
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
0.39 L
Condenser type
A7
Condenser volume (L)
0.39
Connection type
Solder
Contain batteries
No
Description
OP-LSVM014DPW05G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Slim Pack
Fan blade size [mm]
365 mm
Fan cowl/grill type
B1
Fan current @ 50Hz [A]
0.47 A
Fan diameter [mm]
365 mm
Fan power consumption @ 50Hz [W]
60 W
Fan power output @ 50Hz [W]
68 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.17
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
255 V
LBP Cooling capacity [kW] (R452A)
0.44 kW
Length [mm]
364 mm
Liquid line connection [in]
3/8 in
Low value of voltage range at 60Hz [V]
187 V
Min fuse rating [A]
6 A
Model number
OP-LSVM014DPW05G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),N,N-dimethylacetamide (CAS no. 127-19-5)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
1.3 L
Refrigerants
R404A,R452A,R454C,R455A
SCIP dossier no.
517dd61a-f0c7-4249-8639-17b34a9dfce2
SCIP dossier product name
OPTYMA W05
Segment usage
Low Back Pressure
Sound pressure level 50Hz (@10 m distance) [db(A)]
31 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
3/8 in
Total height [mm]
530 mm
Type
Optyma™ Slim Pack W05 (A2L)
UK RoHS compliance
Out of scope
Version
W05
Voltage 50Hz [V]
187 V
Voltage 50Hz [V] [Max]
255 V
Volume (L)
0.092 L
Width [mm]
910 mm
118U3296
Electrical component, Capacitor
118U3477
Fan system, Fan motor
118U3480
Fan system, Fan blade
118U3483
Fan system, Fan grill
118U3893
Electrical component, Contactor
118U4037
Connector, Plug
118U5144
Housing, Sheet metal
118U5217
Condenser, A7
118U5254
Connector, Service valve
118U5258
Miscellaneous, Cable
