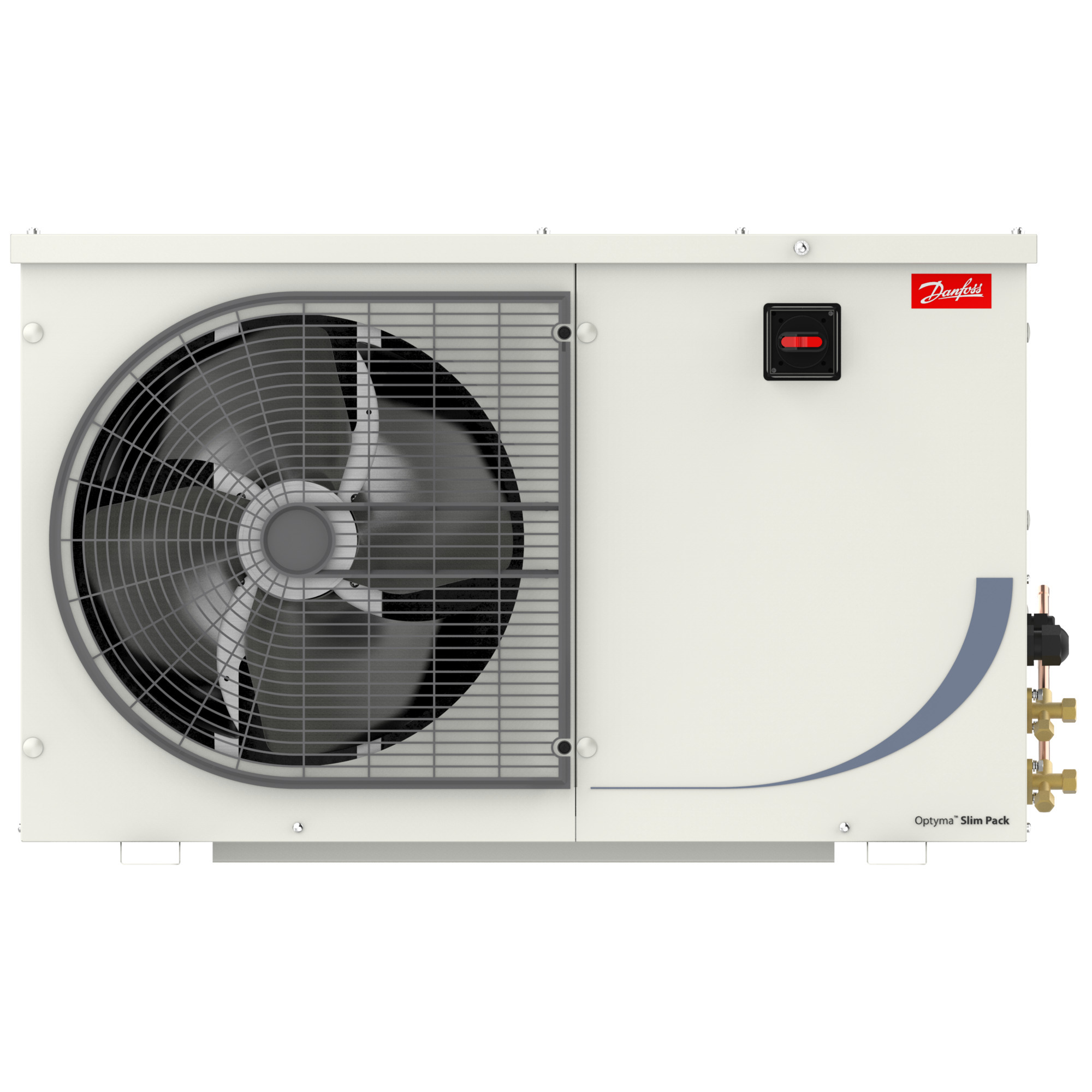

114X7286

Part Number: 114X7286
114X7286
Manufacturer
Danfoss
Part number
114X7286
Category

Product Information

Extended Description

114X7286 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R454C; R448A; R455A; R449A, Compressor power supply [V]: 230/1/50
Gross weight
67 Kilogram
Net weight
52 Kilogram
Volume
175 Liter
EAN
5702424586379
Air flow @ 50Hz [mÂł/h]
2200 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
DLY80RAb
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
0.39 L
Condenser type
A7
Condenser volume (L)
0.39
Connection type
Solder
Contain batteries
No
Description
OP-MSTM008DYW09G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Slim Pack
Fan blade size [mm]
365 mm
Fan cowl/grill type
B1
Fan current @ 50Hz [A]
0.32 A
Fan diameter [mm]
365 mm
Fan power consumption @ 50Hz [W]
60 W
Fan power output @ 50Hz [W]
25 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.17
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
255 V
Length [mm]
364 mm
Liquid line connection [in]
3/8 in
Low value of voltage range at 60Hz [V]
187 V
MBP Cooling capacity [kW] (R449A)
0.87 kW
MCC
4.9 A
Min fuse rating [A]
6 A
Model number
OP-MSTM008DYW09G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),N,N-dimethylacetamide (CAS no. 127-19-5)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
1.3 L
Refrigerants
R404A,R448A,R449A,R452A,R454C,R455A
RLA
9.6 A
SCIP dossier no.
909c64e4-e03b-4416-9d18-aed12abdd98a
SCIP dossier product name
OPTYMA W09
Segment usage
Medium Back Pressure
Sound pressure level 50Hz (@10 m distance) [db(A)]
32 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
3/8 in
Total height [mm]
530 mm
Type
Optyma™ Slim Pack W09 (A2L)
UK RoHS compliance
Out of scope
Version
W09
Voltage 50Hz [V]
187 V
Voltage 50Hz [V] [Max]
255 V
Volume (L)
0.035 L
Width [mm]
910 mm
118U3296
Electrical component, Capacitor
118U3477
Fan system, Fan motor
118U3480
Fan system, Fan blade
118U3483
Fan system, Fan grill
118U3853
Electrical component, Main switch kit
118U3893
Electrical component, Contactor
118U3978
Electrical component, Overload relay
118U4037
Connector, Plug
118U5141
Housing, Sheet metal
118U5142
Housing, Sheet metal
