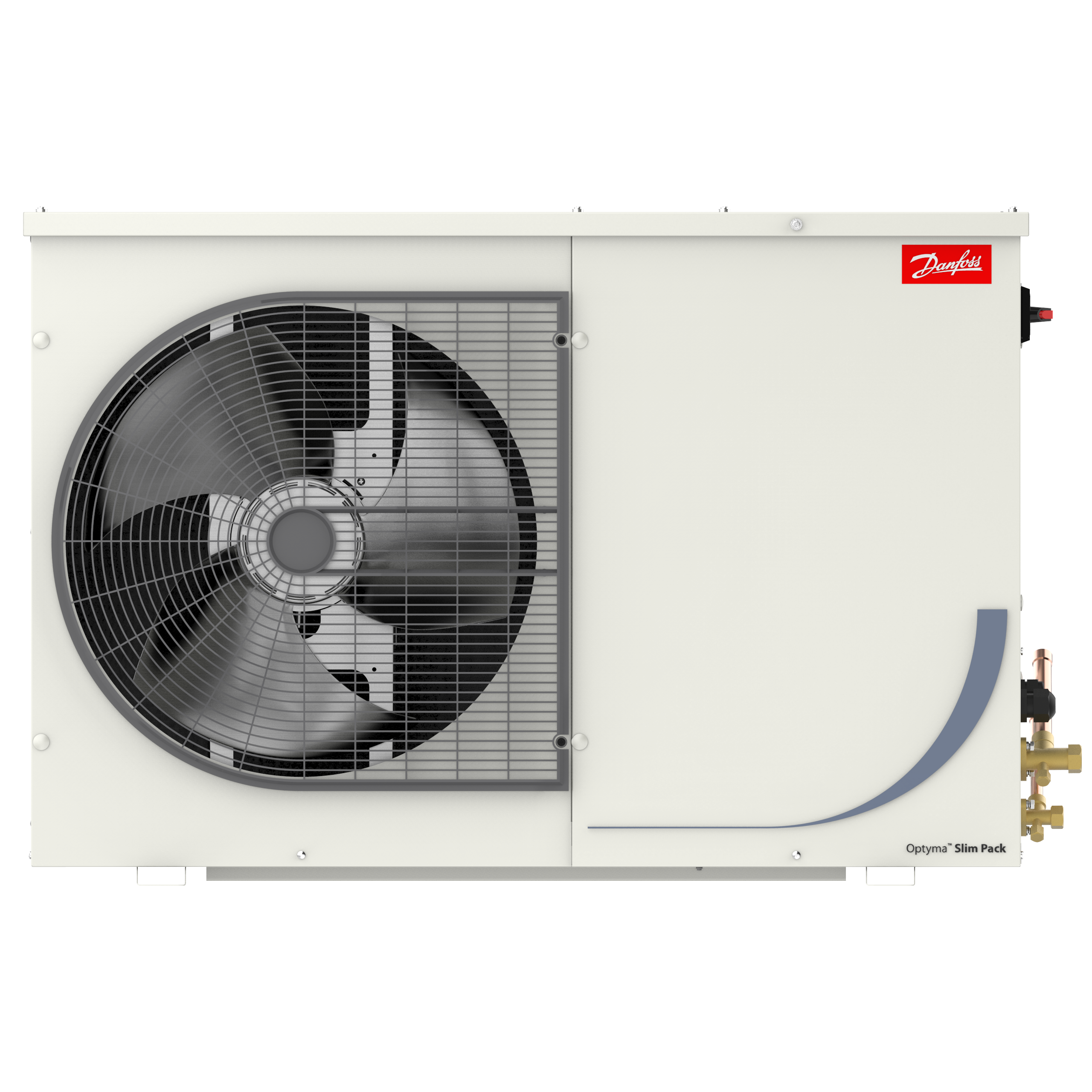

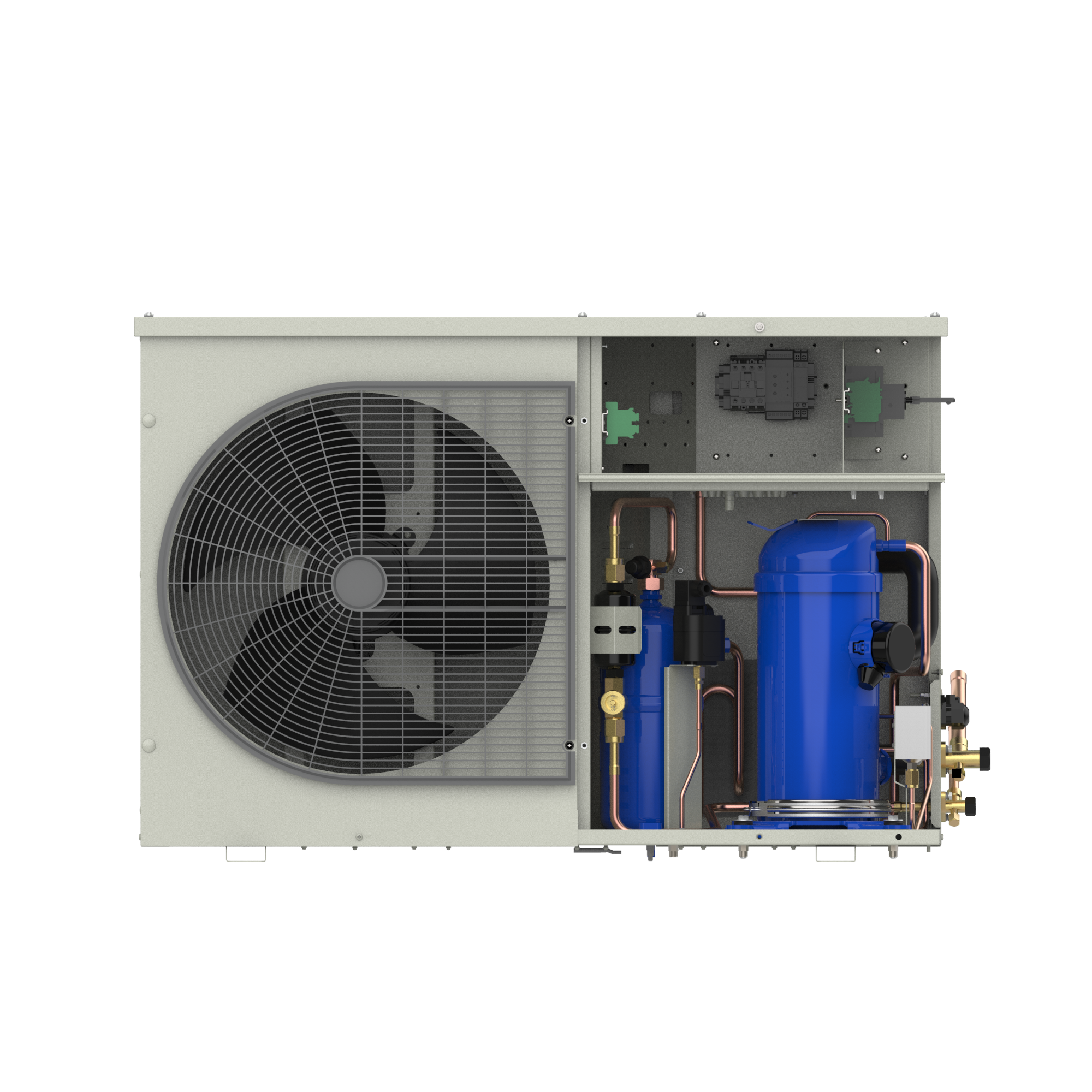

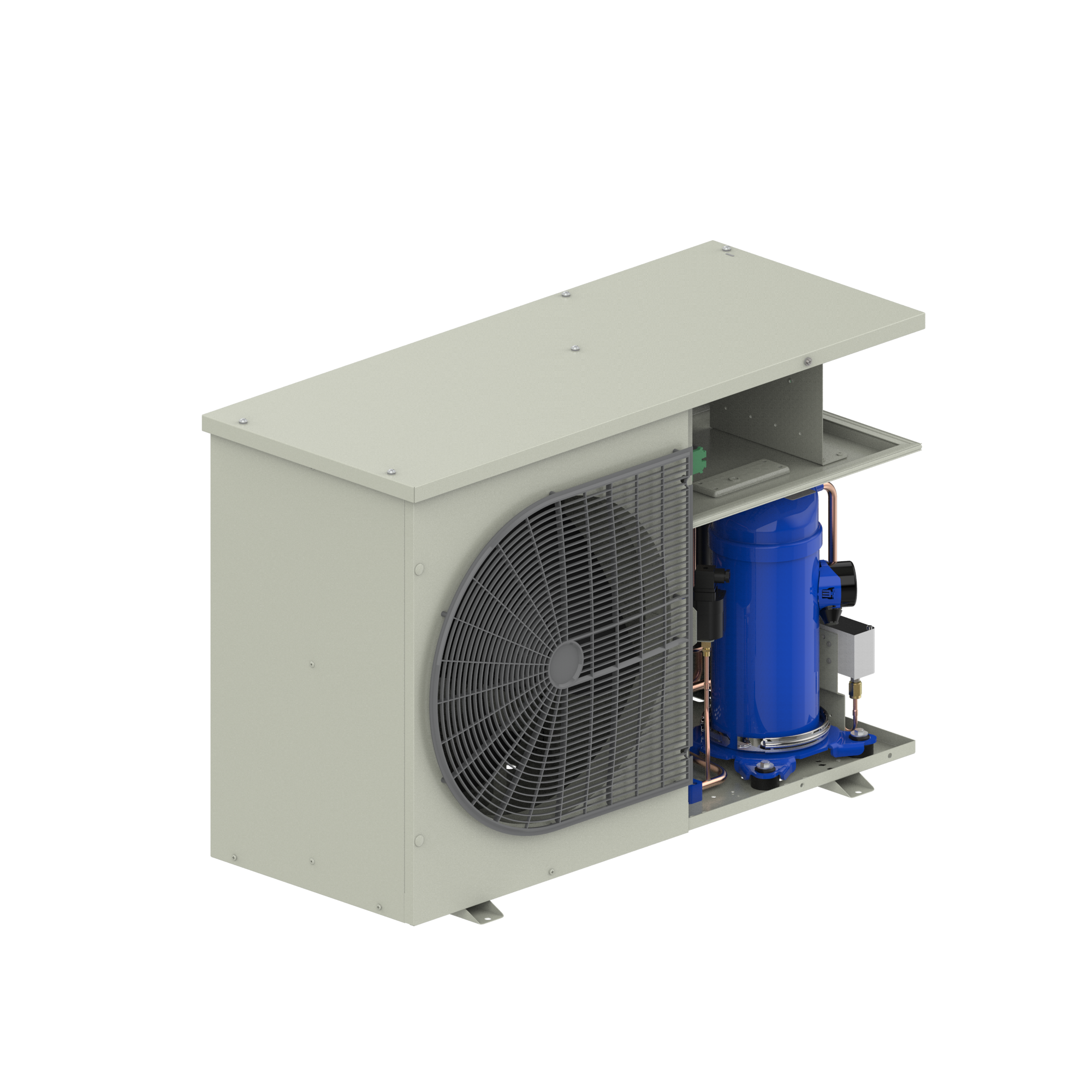

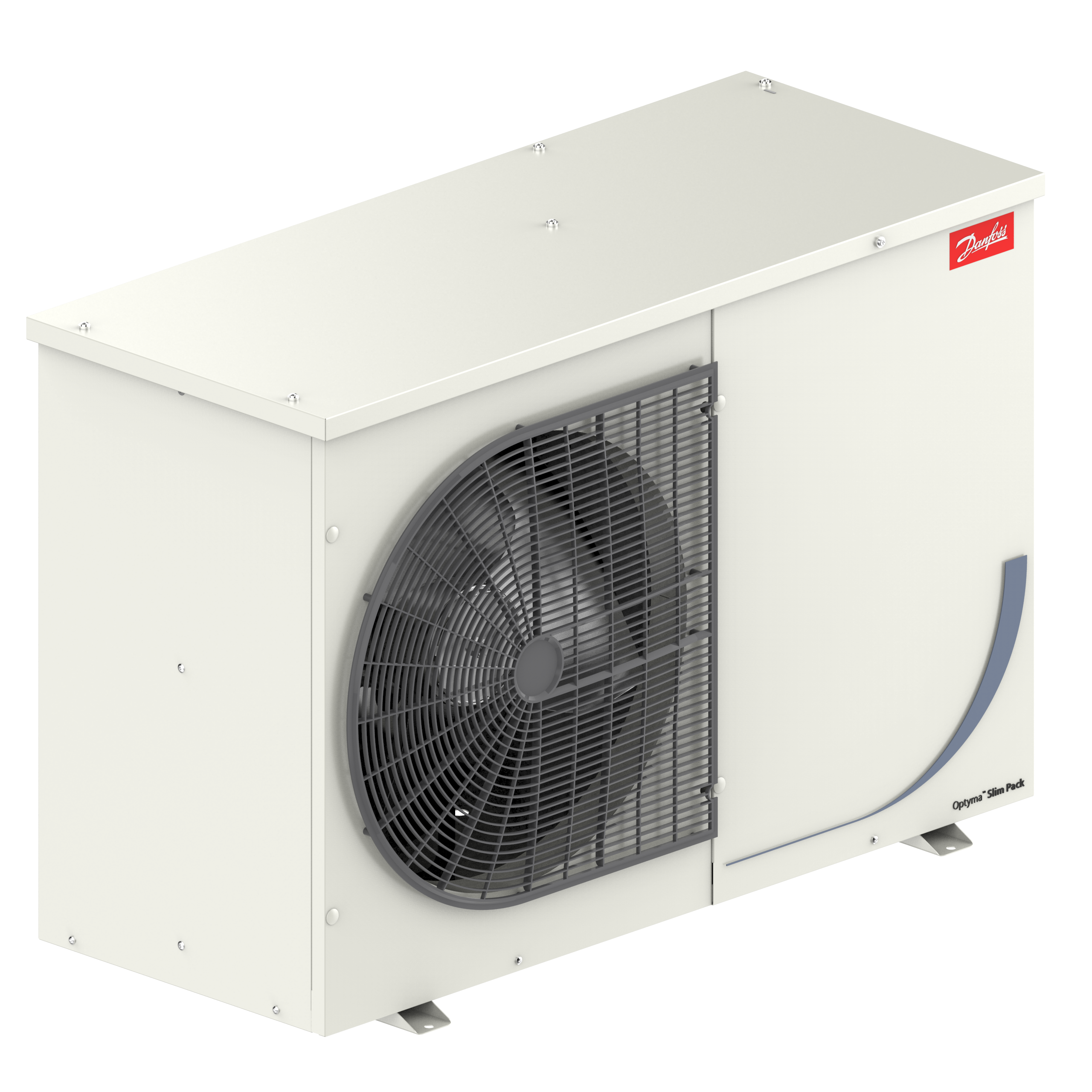

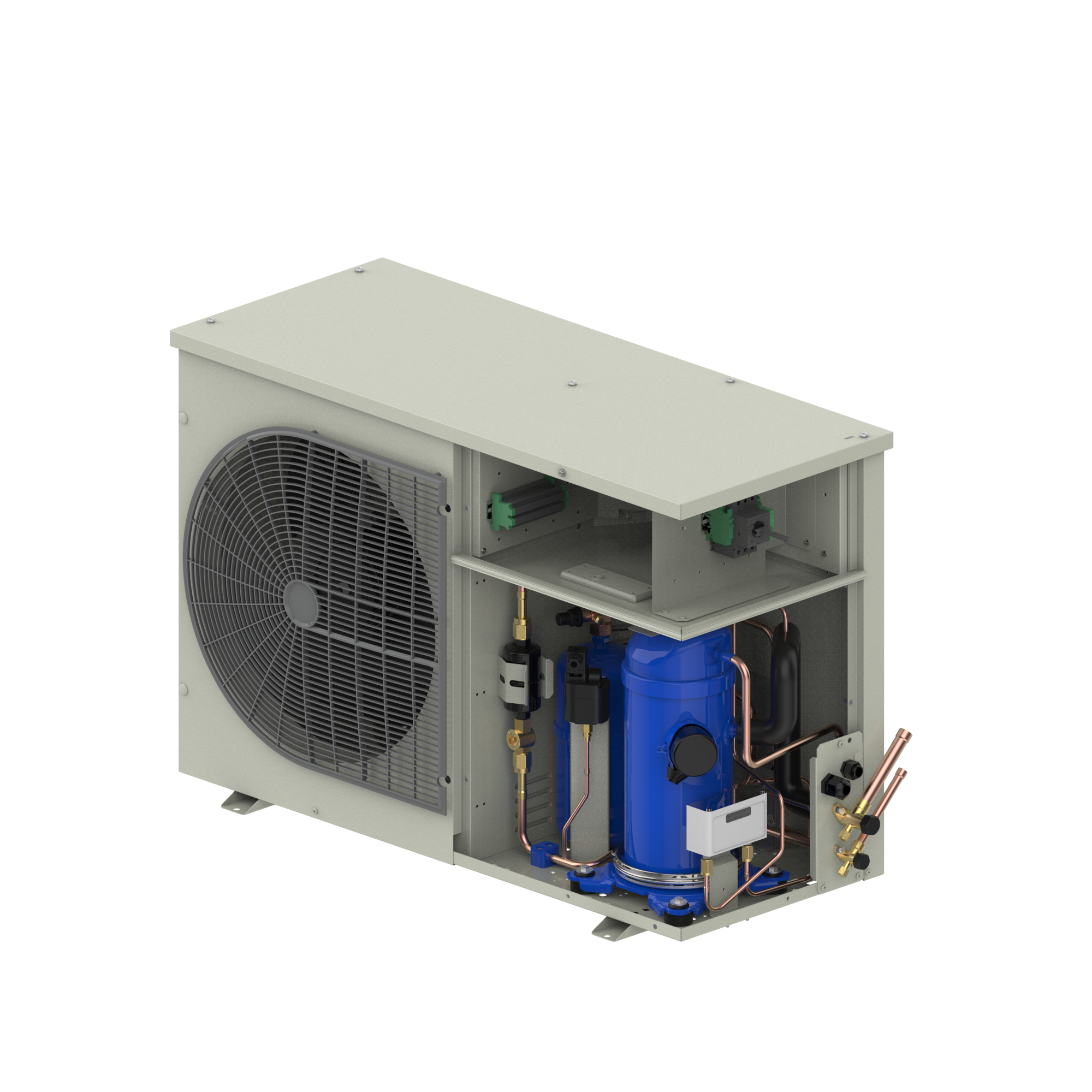

114X7304

Part Number: 114X7304
114X7304
Manufacturer
Danfoss
Part number
114X7304
Category

Product Information

Extended Description

114X7304 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R134a; R513A; R1234yf, Compressor power supply [V]: 230/1/50
Gross weight
92 Kilogram
Net weight
54 Kilogram
Volume
539.784 Liter
EAN
5702424586515
Air flow @ 50Hz [mÂł/h]
3300 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor model
CS26TB
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
0.58 L
Condenser type
D7
Condenser volume (L)
0.58
Connection type
Solder
Contain batteries
No
Description
OP-MSSM026CSW09G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Slim Pack
Fan blade size [mm]
450 mm
Fan cowl/grill type
B2
Fan current @ 50Hz [A]
0.47 A
Fan diameter [mm]
450 mm
Fan power consumption @ 50Hz [W]
110 W
Fan power output @ 50Hz [W]
68 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.17
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
255 V
HMBP Cooling capacity [kW] (R513A)
1.34 kW
Length [mm]
464 mm
Liquid line connection [in]
1/2 in
Low value of voltage range at 60Hz [V]
187 V
MCC
8.7 A
Min fuse rating [A]
10 A
Model number
OP-MSSM026CSW09G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),N,N-dimethylacetamide (CAS no. 127-19-5)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
3.4 L
Refrigerants
R1234yf,R134a,R513A
SCIP dossier no.
909c64e4-e03b-4416-9d18-aed12abdd98a
SCIP dossier product name
OPTYMA W09
Segment usage
Medium Back Pressure
Sound pressure level 50Hz (@10 m distance) [db(A)]
38 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
1/2 in
Total height [mm]
690 mm
Type
Optyma™ Slim Pack W09 (A2L)
UK RoHS compliance
Out of scope
Version
W09
Voltage 50Hz [V]
187 V
Voltage 50Hz [V] [Max]
255 V
Volume (L)
0.097 L
Width [mm]
1079 mm
118U3297
Electrical component, Capacitor
118U3481
Fan system, Fan blade
118U3484
Fan system, Fan grill
118U3823
Fan system, Fan motor
118U3851
Electrical component, Main switch kit
118U3867
Electrical component, Contactor
118U3879
Electrical component, Starting relay
118U4037
Connector, Plug
118U5146
Housing, Sheet metal
118U5147
Housing, Sheet metal
