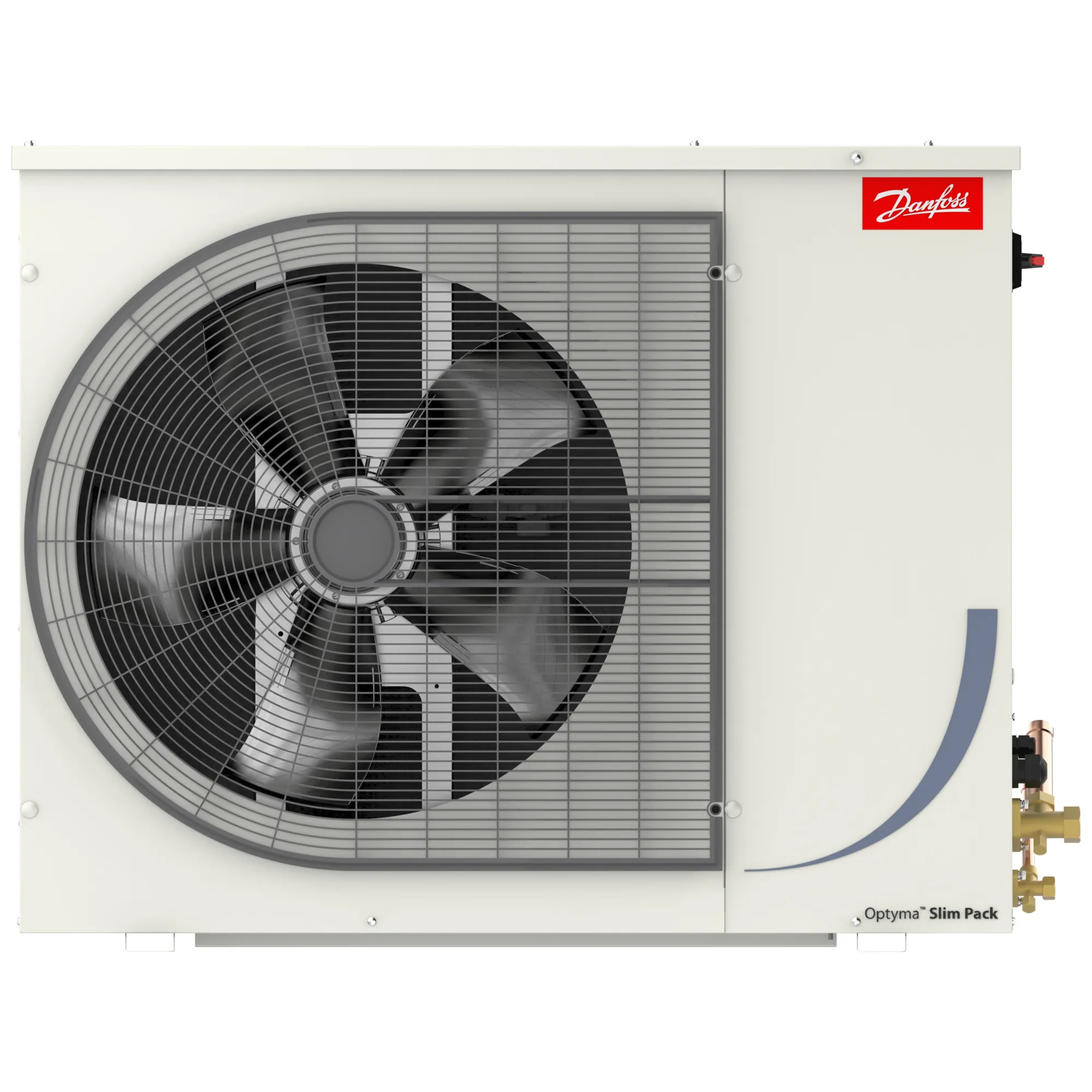

114X7314

Part Number: 114X7314
114X7314
Manufacturer
Danfoss
Part number
114X7314
Category

Product Information

Extended Description

114X7314 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Compressor power supply [V]: 230/1/50
Gross weight
96 Kilogram
Net weight
76 Kilogram
Volume
0.423 Cubic meter
EAN
5702424592417
Air flow @ 50Hz [m³/h]
5200 m³/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor Low pressure volume (L)
3.7 L
Compressor model
MLZ038T5
Compressor power supply [V]
230/1/50
Condenser Coil Internal Volume [L]
1.62 mm³
Condenser type
G7
Condenser volume (L)
1.62
Connection type
Solder
Contain batteries
No
Description
OP-MSIM080MLW05G
Electrical code
G
EU RoHS compliance
Out of scope
Family
Optyma™ Slim Pack
Fan blade size [mm]
560 mm
Fan cowl/grill type
B3
Fan current @ 50Hz [A]
1.6 A
Fan diameter [mm]
560 mm
Fan power consumption @ 50Hz [W]
140 W
Fan power output @ 50Hz [W]
72 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.35
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
255 V
HMBP Cooling capacity [kW] (R513A)
5.57 kW
Length [mm]
464 mm
Liquid line connection [in]
1/2 in
Low value of voltage range at 60Hz [V]
187 V
MBP Cooling capacity [kW] (R449A)
8.5 kW
MCC
38 A
Min fuse rating [A]
45 A
Model number
OP-MSIM080MLW05G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),N,N-dimethylacetamide (CAS no. 127-19-5)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
6.2 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R454C,R455A,R513A
SCIP dossier no.
517dd61a-f0c7-4249-8639-17b34a9dfce2
SCIP dossier product name
OPTYMA W05
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
79 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
68 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
48 dBA
Speed Platform
Fixed-speed
Suction connection size [in]
7/8 in
Technology
Scroll
Total height [mm]
825 mm
Type
Optyma™ Slim Pack W05 (A2L)
UK RoHS compliance
Out of scope
Version
W05
Voltage 50Hz [V]
187 V
Voltage 50Hz [V] [Max]
255 V
Volume (L)
0.107 L
Width [mm]
1105 mm
118U3485
Fan system, Fan grill
118U3868
Electrical component, Contactor
118U3871
Electrical component, Circuit breaker
118U3881
Electrical component, Starting relay
118U3882
Electrical component, Phase relay
118U4037
Connector, Plug
118U5151
Housing, Sheet metal
118U5153
Housing, Sheet metal
118U5154
Housing, Sheet metal
118U5169
Housing, Sheet metal
