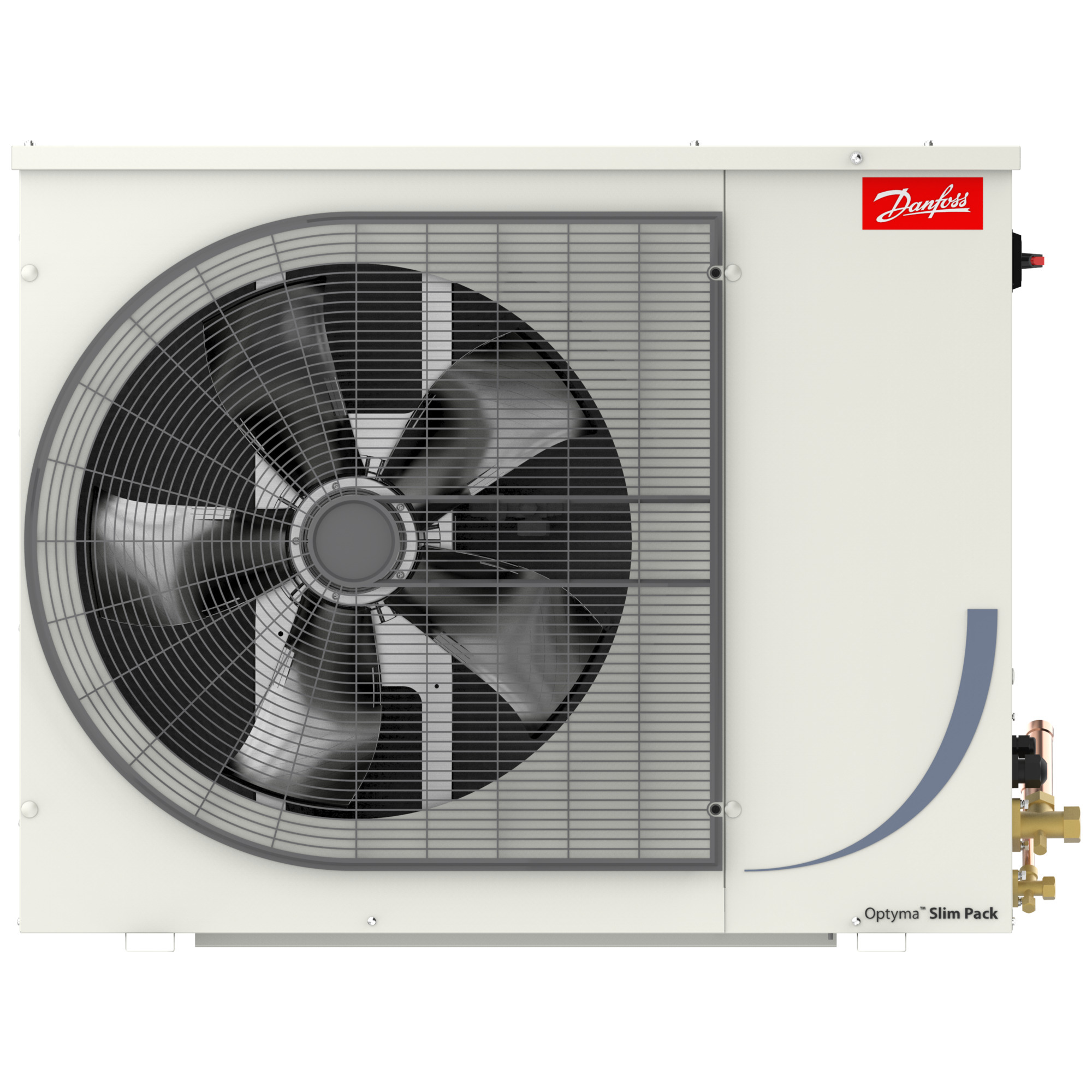

114X7317

Part Number: 114X7317
114X7317
Manufacturer
Danfoss
Part number
114X7317
Category

Product Information

Extended Description

114X7317 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
96 Kilogram
Net weight
76 Kilogram
Volume
0.423 Cubic meter
EAN
5702424592448
Air flow @ 50Hz [mÂł/h]
5200 mÂł/h
Applications
MBP
Approval
CE
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Out of scope
Compressor Low pressure volume (L)
3.7 L
Compressor model
MLZ030T4
Compressor power supply [V]
400/3/50
Condenser Coil Internal Volume [L]
1.62 mmÂł
Condenser type
G7
Condenser volume (L)
1.62
Connection type
Solder
Contain batteries
No
Description
OP-MSIM068MLW09E
Electrical code
E
EU RoHS compliance
Out of scope
Family
Optyma™ Slim Pack
Fan blade size [mm]
560 mm
Fan cowl/grill type
B3
Fan current @ 50Hz [A]
1.6 A
Fan diameter [mm]
560 mm
Fan power consumption @ 50Hz [W]
140 W
Fan power output @ 50Hz [W]
72 W
Fan power supply [V/Ph/Hz]
230/1/50
Filter Drier Volume (L)
0.35
Frequency [Hz]
50 Hz
High value of nominal voltage at 50Hz [V]
440 V
HMBP Cooling capacity [kW] (R513A)
4.83 kW
Length [mm]
464 mm
Liquid line connection [in]
1/2 in
Low value of nominal voltage at 50Hz [V]
380 V
MBP Cooling capacity [kW] (R449A)
7.43 kW
MCC
14.9 A
Min fuse rating [A]
16 A
Model number
OP-MSIM068MLW09E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Cobalt dichloride (CAS no. 7646-79-9),BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7),N,N-dimethylacetamide (CAS no. 127-19-5)
Receiver approval
CE,EAC
Receiver type
Vertical
Receiver volume [L]
6.2 L
Refrigerants
R134a,R404A,R407A,R407F,R448A,R449A,R452A,R454C,R455A,R513A
SCIP dossier no.
909c64e4-e03b-4416-9d18-aed12abdd98a
SCIP dossier product name
OPTYMA W09
Segment usage
Medium Back Pressure
Sound power @ 50Hz [db(A)]
79 dBA
Sound pressure level 50Hz (@1 m distance) [db(A)]
68 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]
48 dBA
Suction connection size [in]
3/8 in
Technology
Scroll
Total height [mm]
825 mm
Type
Optyma™ Slim Pack W09 (A2L)
UK RoHS compliance
Out of scope
Version
W09
Voltage 50Hz [V]
380 V
Voltage 50Hz [V] [Max]
440 V
Volume (L)
0.107 L
Width [mm]
1105 mm
118U3485
Fan system, Fan grill
118U3852
Electrical component, Main switch kit
118U3878
Electrical component, Starting relay
118U3882
Electrical component, Phase relay
118U3896
Electrical component, Contactor
118U4037
Connector, Plug
118U5151
Housing, Sheet metal
118U5153
Housing, Sheet metal
118U5169
Housing, Sheet metal
118U5219
Condenser, G7
Transitioning to A2L refrigerants Convenience Store_CU Brochure Optyma multi-refrigerant A2L-ready ranges_eBrochure Optyma™ Packaged condensing units - Europe (EMA) Optyma™ Slim Pack, OP-LSVM, MSTM, MSSM and MSIM Danfoss DOI EU-UK 118A2398.AE Danfoss EU-UK 118A5048.AF Condensers Danfoss MD 118A4193.AE TÜV 0045 202 9070 Z 00506 21 D 001(04) OP-MSIM068/080/099/108/MLW05/W09E/G Optyma Slim Pack W09-A2L Optyma Slim Pack W09-A2L OP-MSIM068/080/099/108/MLW05/W09E/G Optyma Slim Pack W09-A2L OP-MSIM068/080/099/108/MLW05/W09E/G OP-MSIM068/080/099/108/MLW05/W09E/G Optyma Slim pack - Open - Chassis B3 Optyma Slim pack - Open - Chassis B3 Optyma Slim pack - Open - Chassis B3
