115F0472
Part Number: 115F0472
Product Information
Extended Description

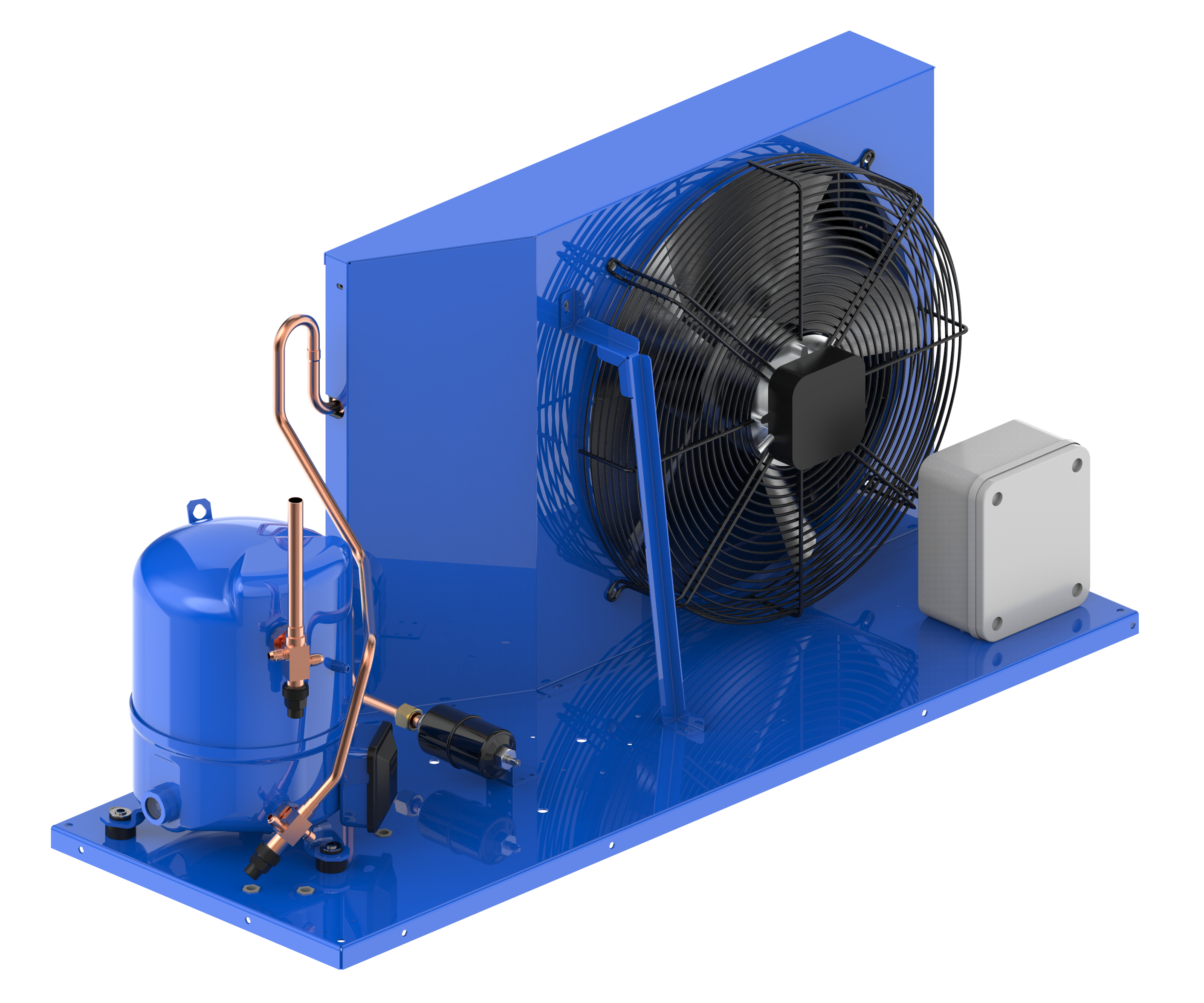

115F0472 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A, Compressor power supply [V]: 230/1/60
Gross weight
77 Kilogram
Net weight
65 Kilogram
Air flow @ 60Hz [m³/h]
4800 m³/h
Applications
MBP
Compressor model
MTZ036-1
Compressor power supply [V]
230/1/60
Condenser type
G8
Contain batteries
No
Description
OP-HJZ036D36N
Electrical code
N
Family
Optyma™
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HJZ036D36N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R404A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D36
Version
D36
120Z0459
Crankcase heater, PTC heater
191U0643E
Condenser, G8
191U006110
Tank, Accumulator
119-8453A
Electrical component, Starting relay
191U127467
Connector, Kit housing
6804501V06
Connector, Service valve
191U9906
Miscellaneous, Filter
191U007710
Tank, Oil separator
7754001
Lubricant, 160P
118U601108
Tank, Receiver
