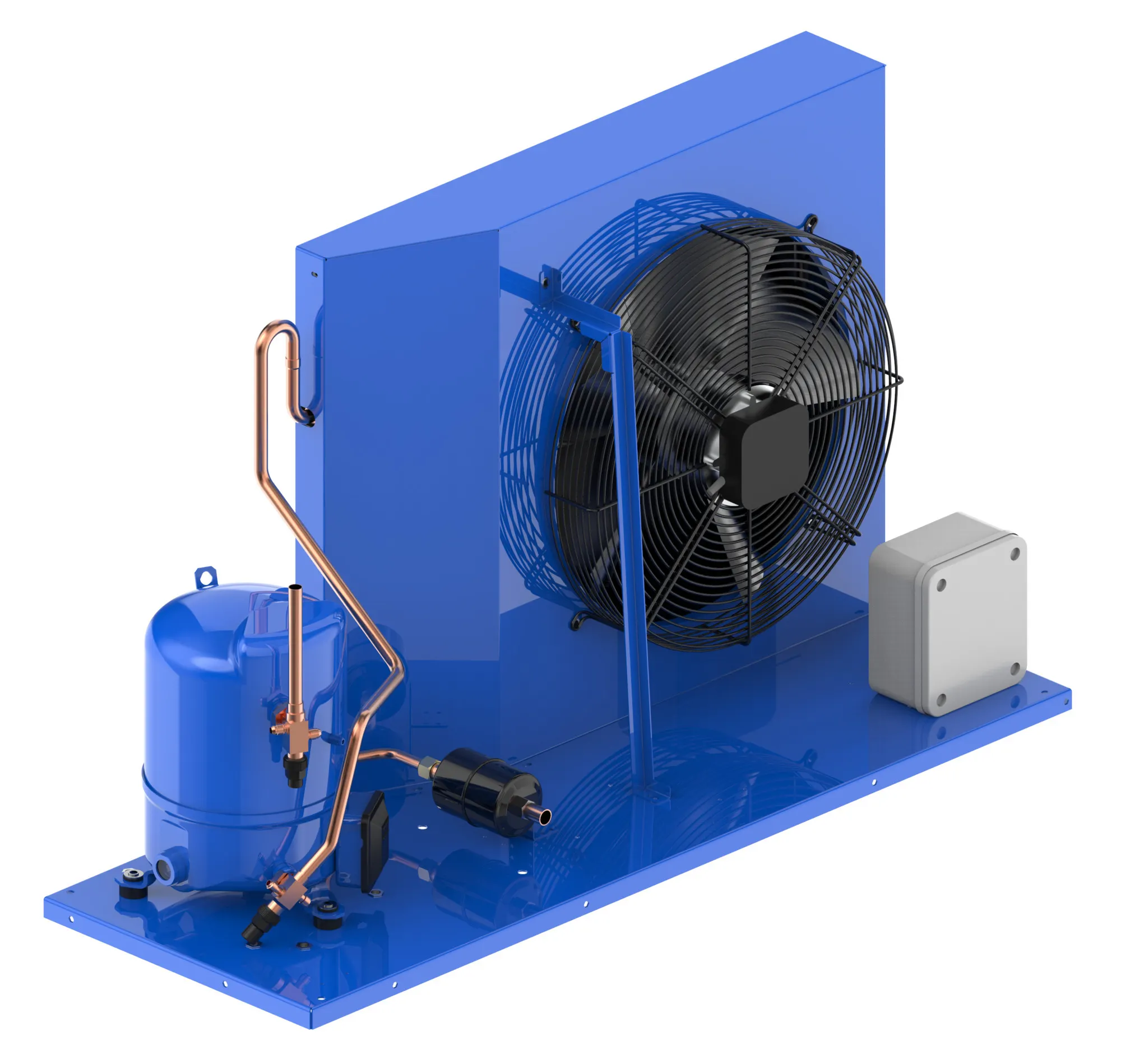

115F0479
Part Number: 115F0479
Product Information
Extended Description
115F0479 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A, Compressor power supply [V]: 230/3/60
Gross weight
96 Kilogram
Net weight
83 Kilogram
Air flow @ 60Hz [m³/h]
6300 m³/h
Applications
MBP
Compressor model
MTZ044-3
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-HJZ044D36Q
Electrical code
Q
Family
Optyma™
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
OP-HJZ044D36Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R404A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D36
Version
D36
120Z0459
Crankcase heater, PTC heater
191U007710
Tank, Oil separator
MT44-3VI
Reciprocating compressor, MT44HJ3BVE
191U9907
Miscellaneous, Filter
7754001
Lubricant, 160P
6804505V07
Connector, Service valve
6804502V09
Connector, Service valve
118U601108
Tank, Receiver
191U127667
Connector, Kit housing
191U0644E
Condenser, J8
