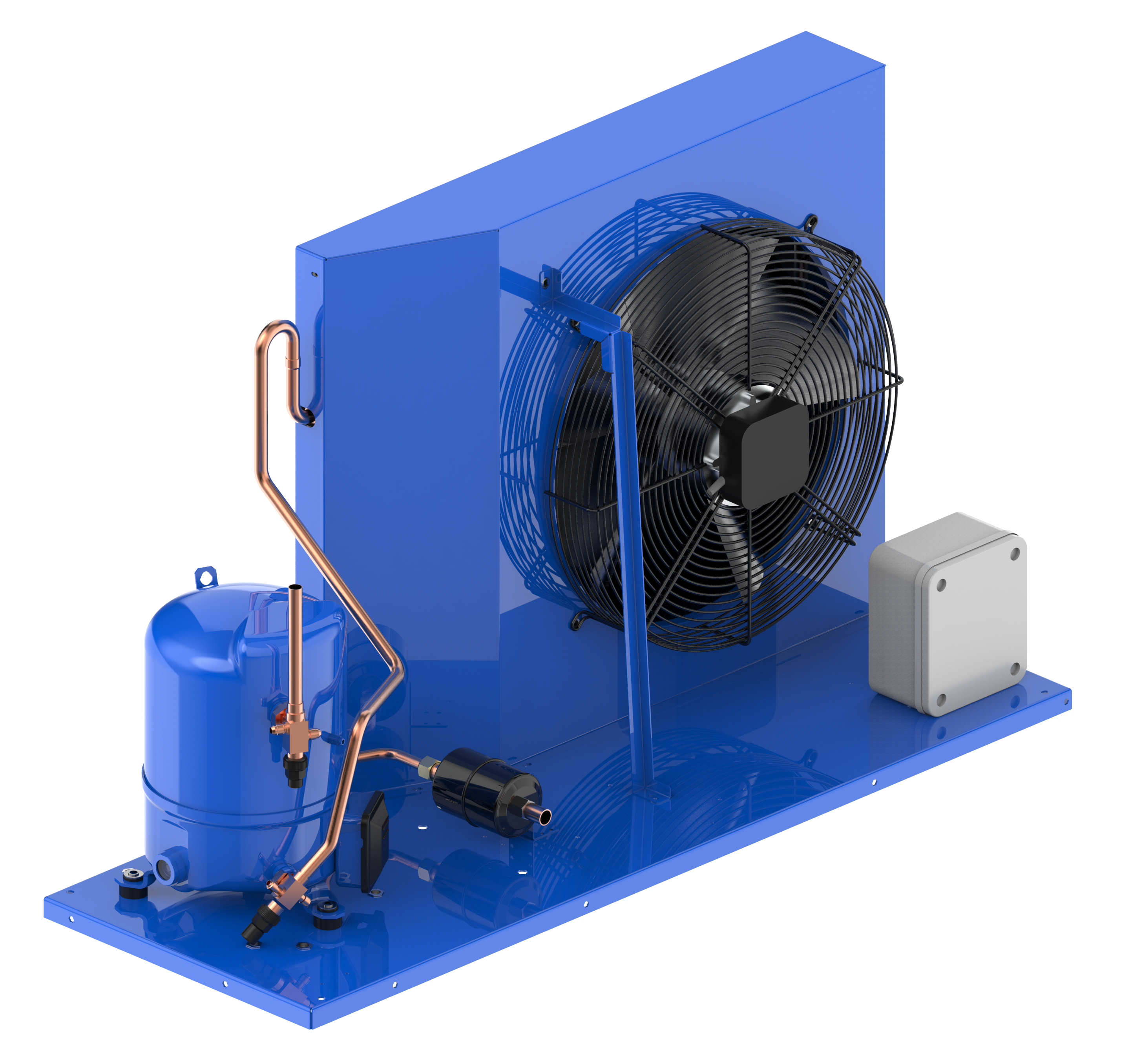

115F0509
Part Number: 115F0509
Product Information
Extended Description
115F0509 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R134a, Compressor power supply [V]: 230/1/60
Gross weight
85 Kilogram
Net weight
72 Kilogram
Air flow @ 60Hz [mÂł/h]
6300 mÂł/h
Applications
HBP,MBP
Compressor model
MTZ040-1
Compressor power supply [V]
230/1/60
Condenser type
J8
Contain batteries
No
Description
OP-HJZ040D36N
Electrical code
N
Family
Optyma™
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HJZ040D36N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R134a,R404A,R507A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D36
Version
D36
191U006110
Tank, Accumulator
120Z0459
Crankcase heater, PTC heater
6804501V06
Connector, Service valve
MTZ40-1VI
Reciprocating compressor, MTZ40JH1AVE
120Z0638
Lubricant, 175PZ
191U9906
Miscellaneous, Filter
118U601108
Tank, Receiver
191U0644E
Condenser, J8
6804502V09
Connector, Service valve
119-8453A
Electrical component, Starting relay
