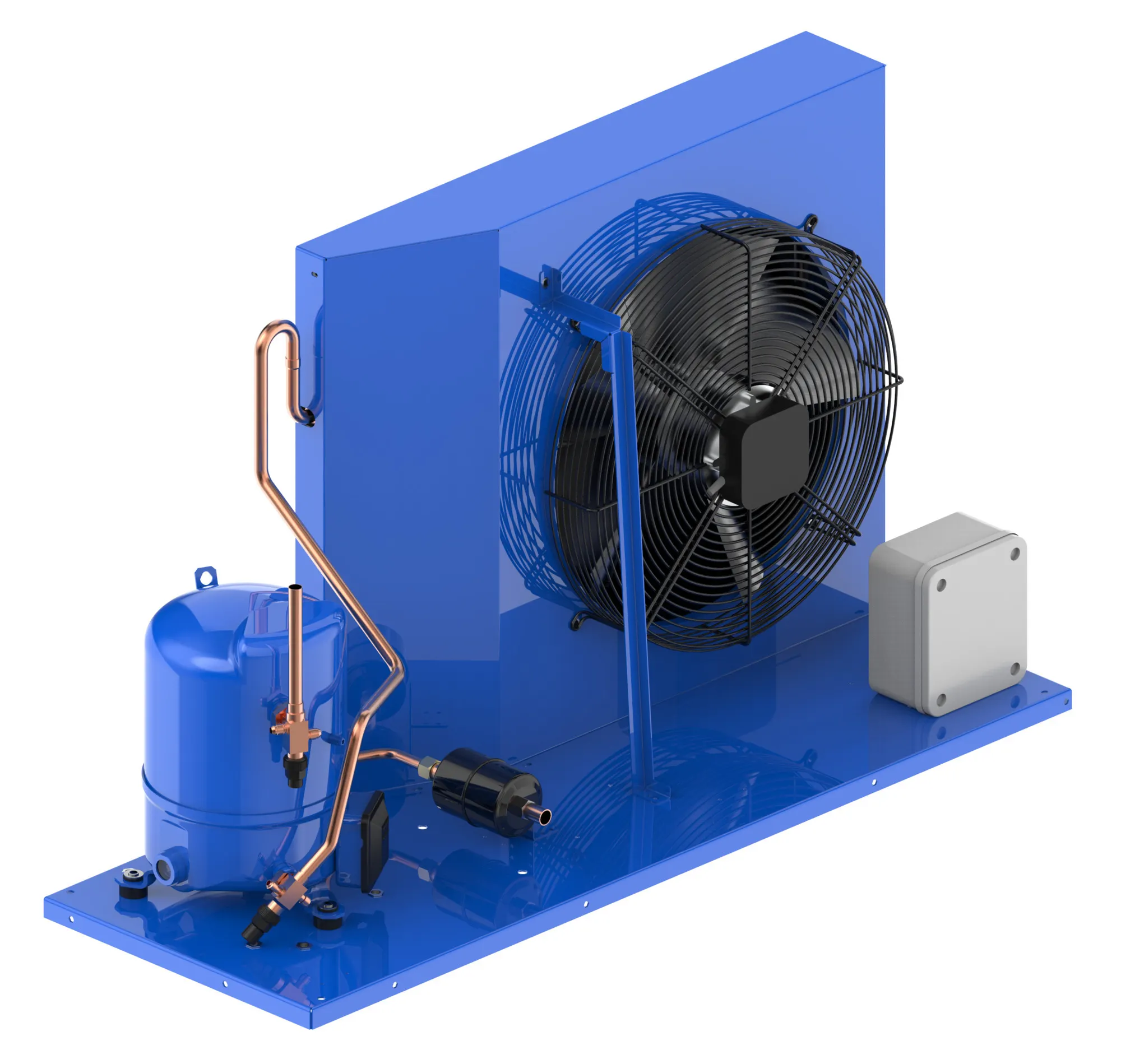

115F0515
Part Number: 115F0515
Product Information
Extended Description
115F0515 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R134a, Compressor power supply [V]: 230/1/60
Gross weight
96 Kilogram
Net weight
83 Kilogram
Air flow @ 60Hz [m³/h]
6300 m³/h
Applications
HBP,MBP
Compressor model
MTZ050-1
Compressor power supply [V]
230/1/60
Condenser type
J8
Contain batteries
No
Description
OP-HJZ050D36N
Electrical code
N
Family
Optyma™
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HJZ050D36N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R507A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D36
Version
D36
6804502V09
Connector, Service valve
MTZ50-1VI
Reciprocating compressor, MTZ50HK1BVE
119-8453A
Electrical component, Starting relay
191U127667
Connector, Kit housing
191U007710
Tank, Oil separator
6804505V07
Connector, Service valve
6804501V06
Connector, Service valve
118U601108
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
191U0644E
Condenser, J8
