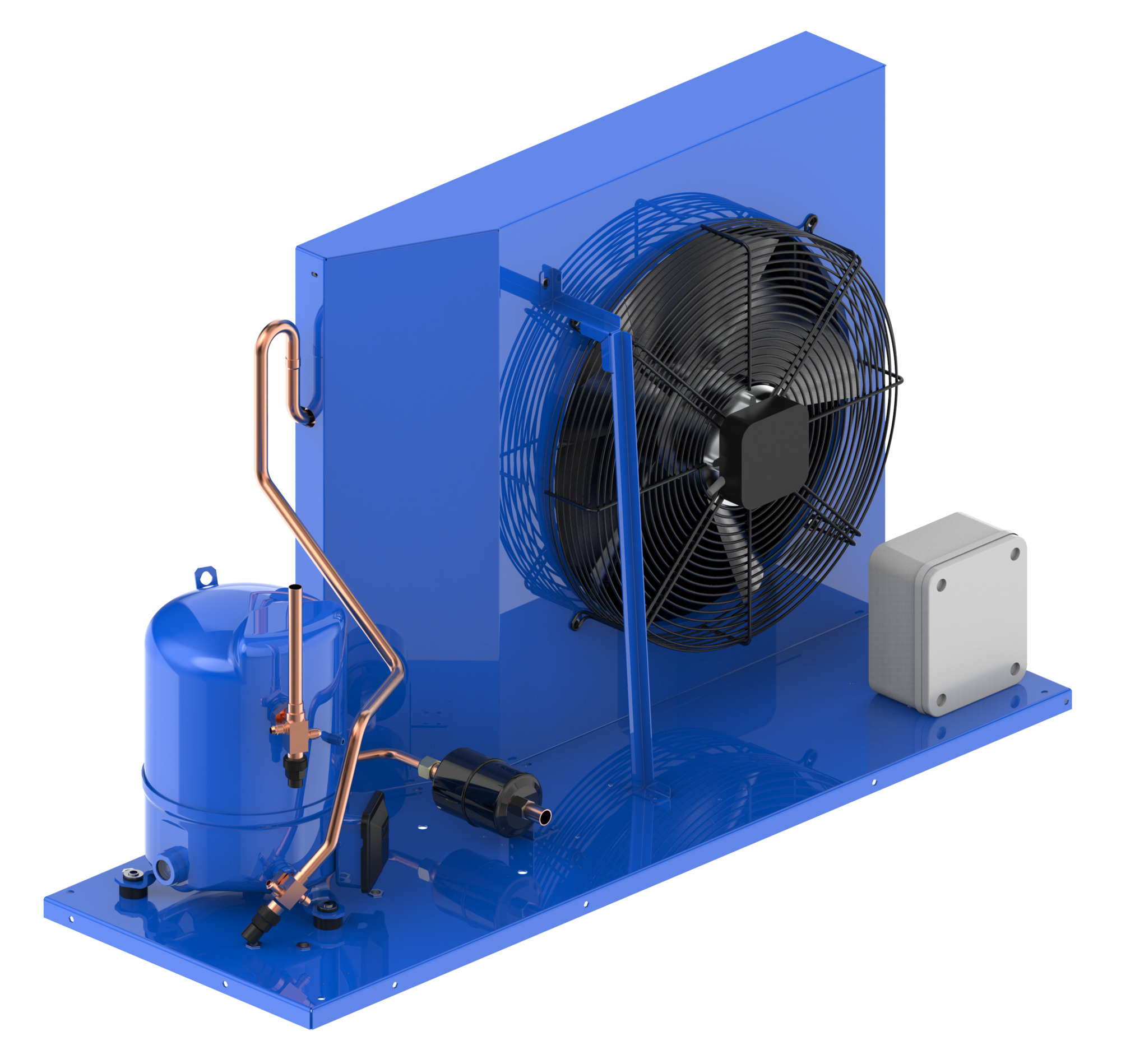

115F0516
Part Number: 115F0516
Product Information
Extended Description
115F0516 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R134a, Compressor power supply [V]: 230/3/60
Gross weight
96 Kilogram
Net weight
83 Kilogram
Air flow @ 60Hz [mÂł/h]
6300 mÂł/h
Applications
HBP,MBP
Compressor model
MTZ050-3
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-HJZ050D36Q
Electrical code
Q
Family
Optyma™
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
OP-HJZ050D36Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R507A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D36
Version
D36
191U9907
Miscellaneous, Filter
6804505V07
Connector, Service valve
MTZ50-3VI
Reciprocating compressor, MTZ50HK3BVE
118U601108
Tank, Receiver
120Z0638
Lubricant, 175PZ
6804502V09
Connector, Service valve
6804501V06
Connector, Service valve
191U0644E
Condenser, J8
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
