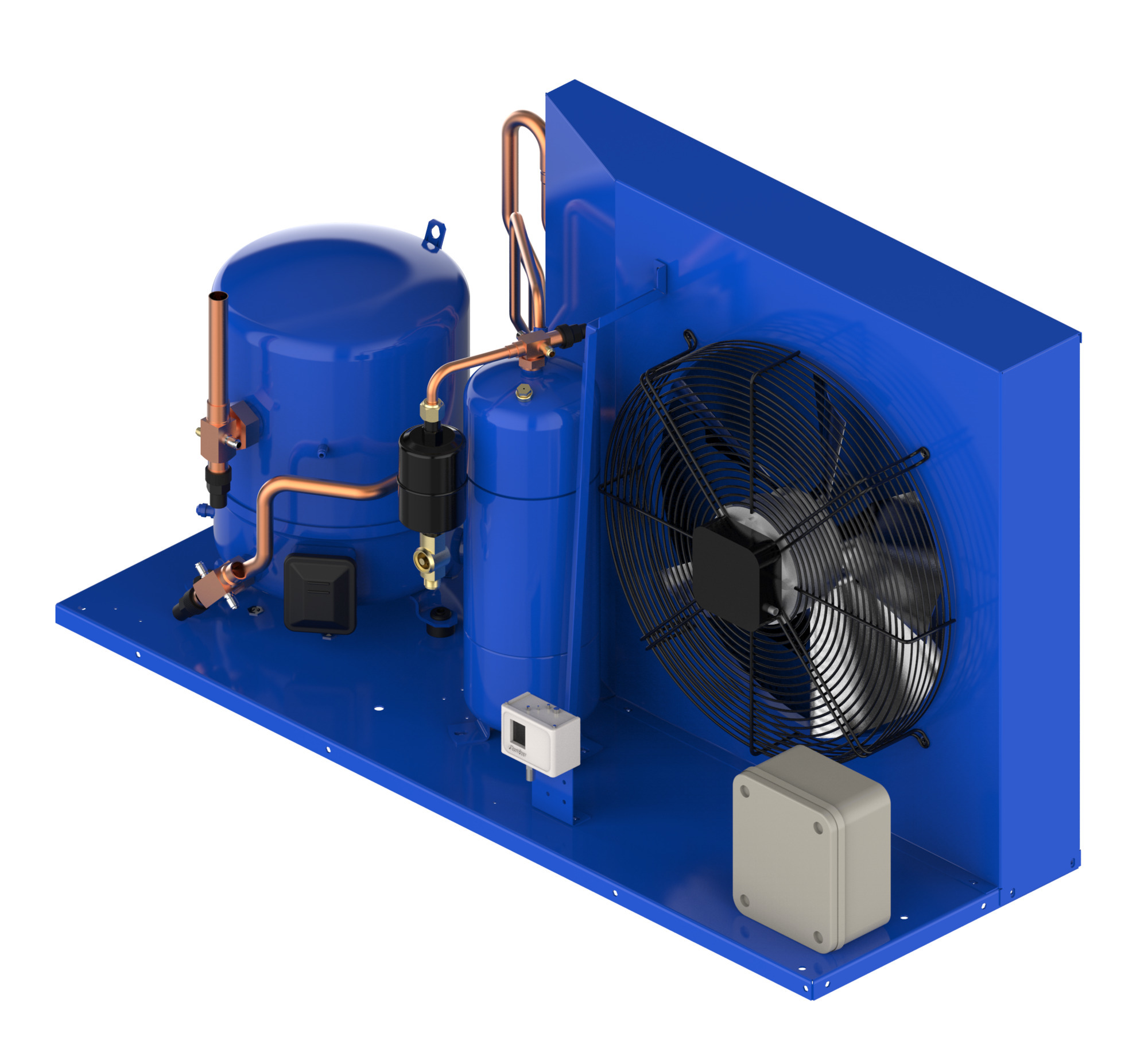

115F0522

Part Number: 115F0522
115F0522
Manufacturer
Danfoss
Part number
115F0522
Category

Product Information

Extended Description

115F0522 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A, Compressor power supply [V]: 380/3/60
Gross weight
104 Kilogram
Net weight
91 Kilogram
Air flow @ 60Hz [mÂł/h]
4800 mÂł/h
Applications
LBP
Compressor model
NTZ108-9
Compressor power supply [V]
380/3/60
Condenser type
G8
Contain batteries
No
Description
OP-LJZ108D20V
Electrical code
V
Family
Optyma™
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 50Hz [W]
375 W
Fan power consumption @ 60Hz [W]
450 W
Fan power output @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
380 V
Model number
OP-LJZ108D20V
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A
Segment usage
Low Back Pressure
Technology
Reciprocating
Type
Optyma™ D20
Version
D20
Voltage 60Hz [V]
380 V
120Z0638
Lubricant, 175PZ
191U0644E
Condenser, J8
191U9907
Miscellaneous, Filter
6804505V07
Connector, Service valve
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
6804501V06
Connector, Service valve
6804502V09
Connector, Service valve
120Z0459
Crankcase heater, PTC heater
120F0304
Reciprocating compressor, NTZ108A9LR1B
Condensing unit OPTYMA™ Lighter and more compact, fast installation and simple maintenance Lighter and more compact Fast installation and easy maintenance OPTYMA™ Condensing Units - 50HZ Condensing Unit Optyma™ Condensers HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20 Condensing Unit - Optyma Commercial 1 - BR HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D20
