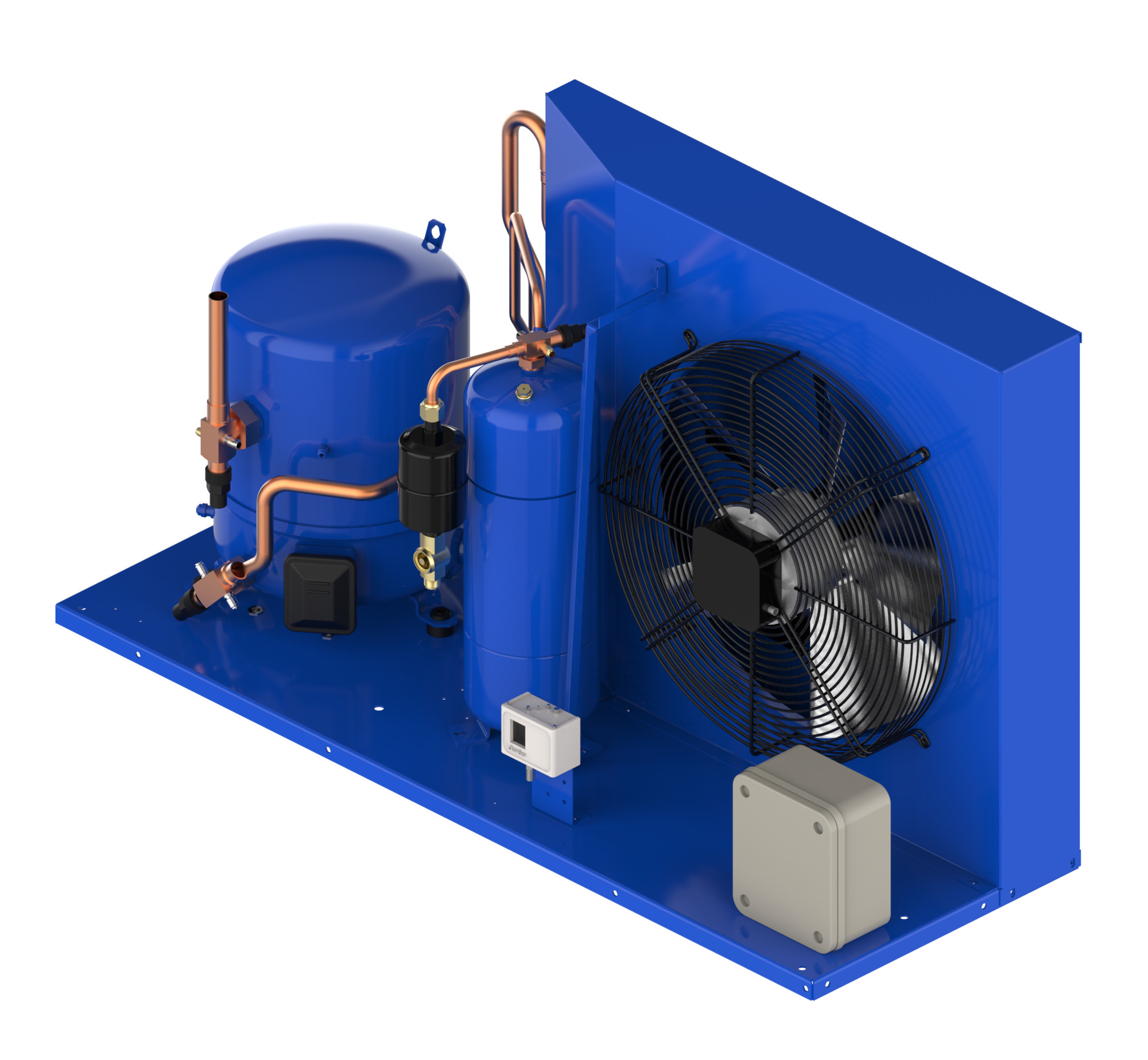

115F0524

Part Number: 115F0524
115F0524
Manufacturer
Danfoss
Part number
115F0524
Category

Product Information

Extended Description

115F0524 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A, Compressor power supply [V]: 230/3/60
Gross weight
104 Kilogram
Net weight
91 Kilogram
Air flow @ 60Hz [mÂł/h]
6300 mÂł/h
Applications
LBP
Compressor model
NTZ136-3
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-LJZ136D20Q
Electrical code
Q
Family
Optyma™
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 50Hz [W]
375 W
Fan power consumption @ 60Hz [W]
450 W
Fan power output @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
OP-LJZ136D20Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D20
Version
D20
Voltage 60Hz [V]
230 V
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
120F0283
Reciprocating compressor, NTZ136A3LR1B
6804501V06
Connector, Service valve
6804505V07
Connector, Service valve
6804502V09
Connector, Service valve
120Z0638
Lubricant, 175PZ
191U127667
Connector, Kit housing
118U601108
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
