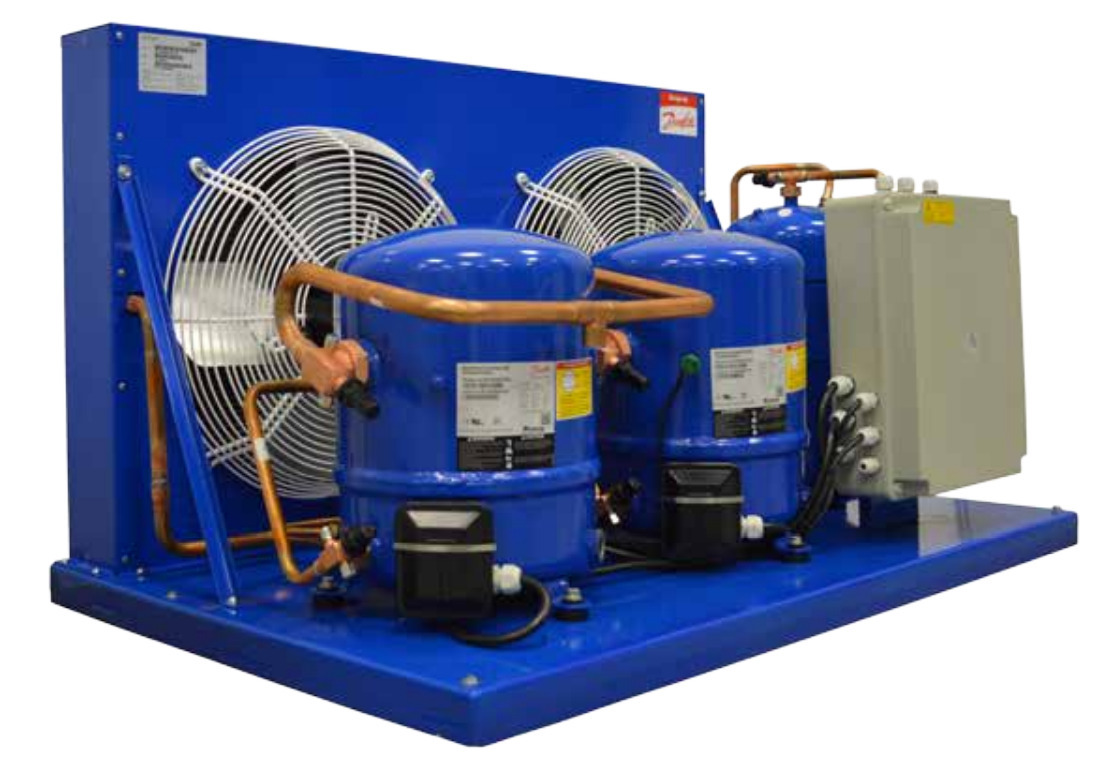

115F0584
Part Number: 115F0584
Product Information
Extended Description
115F0584 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 230/1/60
Gross weight
160 Kilogram
Net weight
145 Kilogram
Air flow @ 60Hz [mÂł/h]
9600 mÂł/h
Applications
MBP
Compressor power supply [V]
230/1/60
Condenser type
N8
Contain batteries
No
Description
HGZ236D31N
Electrical code
N
Family
Optyma™
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HGZ236D31N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
2
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ D31
Version
D31
MTZ36-1VM
Reciprocating compressor, MTZ36JG1AVE
