115F0613

Part Number: 115F0613
115F0613
Manufacturer
Danfoss
Part number
115F0613
Category

Product Information

Extended Description

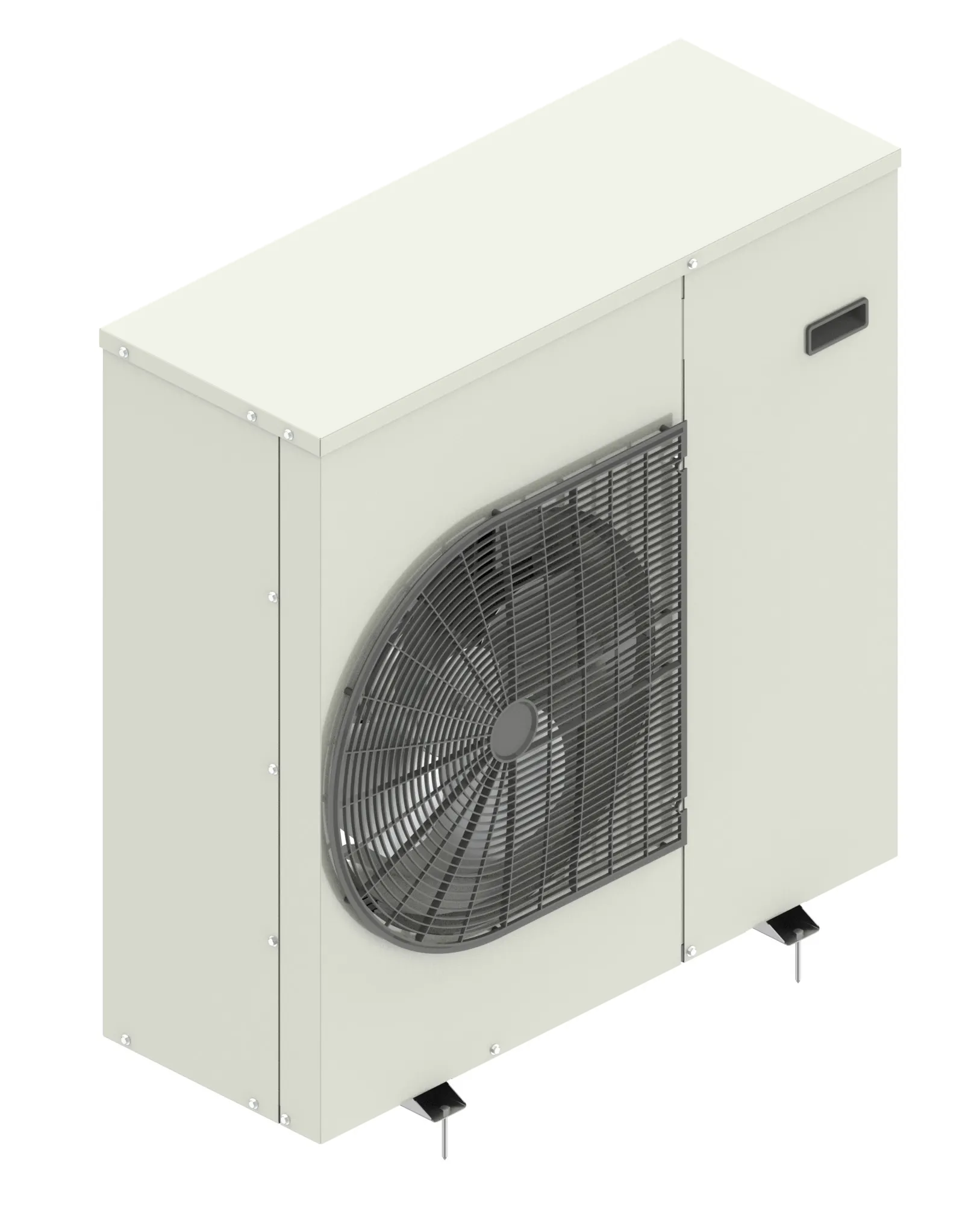

115F0613 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 220/3/60
Gross weight
80 Kilogram
Net weight
70 Kilogram
Air flow @ 60Hz [m³/h]
3600 m³/h
Applications
MBP
Compressor model
MTZ040-3VM
Compressor power supply [V]
220/3/60
Condenser type
C3
Contain batteries
No
Description
HPZP040D20Q
Electrical code
Q
Family
Optyma™ Slim Pack
Fan current @ 60Hz [A]
0.97 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
130 W
Fan power output @ 60Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
HPZP040D20Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim Pack D20
Version
D20
119-7401E
Fan system, Fan motor
120Z0638
Lubricant, 175PZ
MTZ40-3VI
Reciprocating compressor, MTZ40JH3AVE
118U3985E
Fan system, Fan grill
191U13942E
Fan system, Fan blade
193U0591E
Condenser, C3
014L0173
SGP 12 N, Sight glass, Flare, 12.00 mm, Flare, 12.00 mm
023Z5041
Hermetic filter drier, DML, 08 cu.in., Steel
061F6067
Cartridge pressure switch, ACB, 26.50 bar, 20.50 bar
Convenience Store_CU Brochure Optyma™ Slim Pack - 60Hz & Optyma™ INVERTER – 50Hz / 60Hz Instructions - Optyma™ Slim Pack OP-HPMP/HPZP/HPUS/LPZP/LPZS - LAM Condensers HPZP036 & HPZP040 & HPMP036 & HPMP040 & HPUS019 & HPUS021 D20 HPZP036 & HPZP040 & HPMP036 & HPMP040 & HPUS019 & HPUS021 D20 HPUS021 HPMP/HPZP036 HPMP/HPZP040 D20 Optyma Slim pack LAM family HPZP036 & HPZP040 & HPMP036 & HPMP040 & HPUS019 & HPUS021 D20
