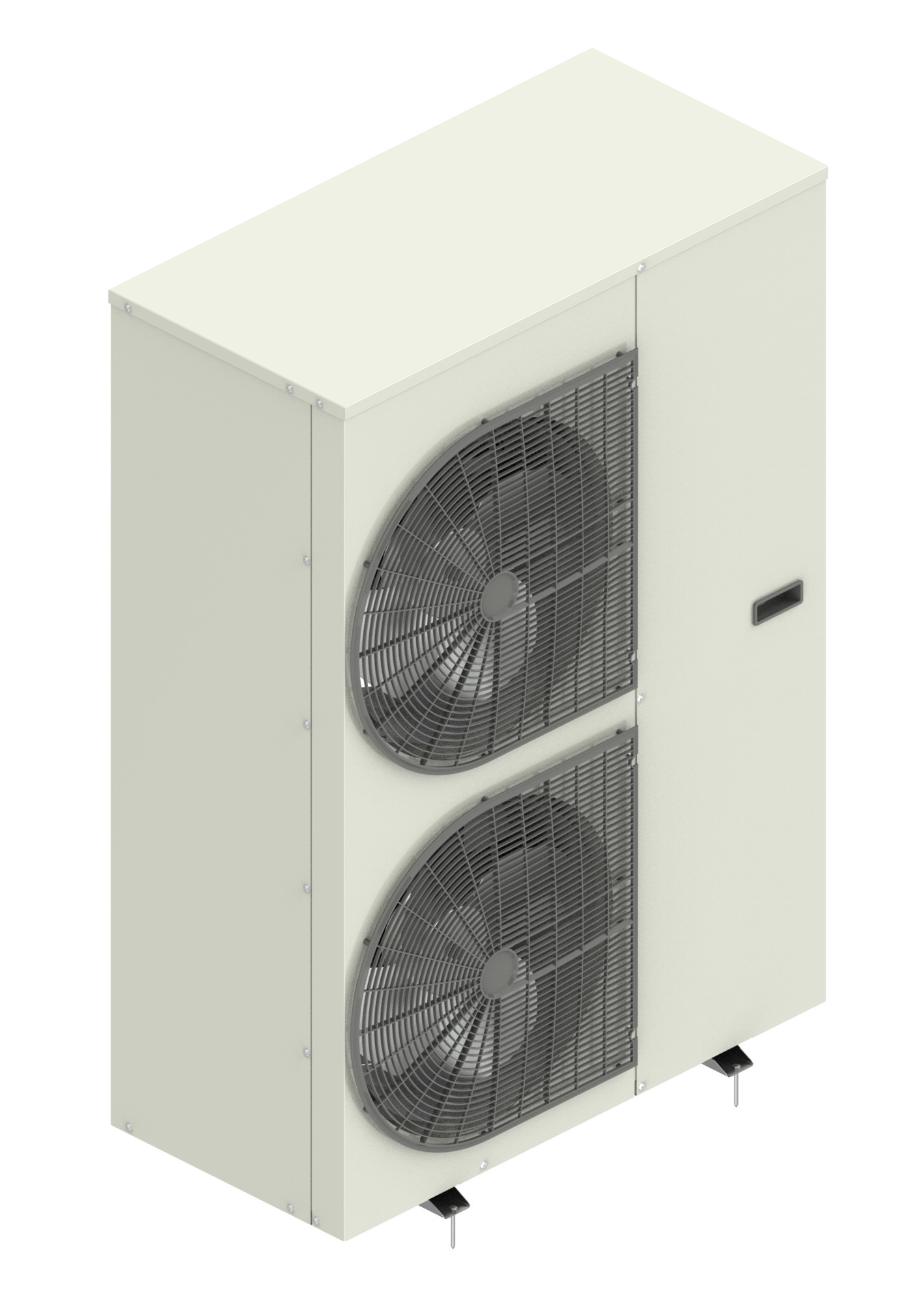

115F0620

Part Number: 115F0620
115F0620
Manufacturer
Danfoss
Part number
115F0620
Category

Product Information

Extended Description

115F0620 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 380/3/60
Gross weight
126 Kilogram
Net weight
114 Kilogram
Air flow @ 60Hz [mÂł/h]
7200 mÂł/h
Applications
MBP
Compressor model
MTZ064-9VM
Compressor power supply [V]
380/3/60
Condenser type
C4
Contain batteries
No
Description
HPZP064D20V
Electrical code
V
Family
Optyma™ Slim Pack
Fan current @ 60Hz [A]
1.94 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
130 W
Fan power output @ 60Hz [W]
260 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
400 V
Low value of nominal voltage at 60Hz [V]
380 V
Model number
HPZP064D20V
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim Pack D20
Version
D20
120Z0638
Lubricant, 175PZ
193U0592E
Condenser, C4
118U3985E
Fan system, Fan grill
191U13942E
Fan system, Fan blade
MTZ64-9VI
Reciprocating compressor, MTZ64HM9AVE
119-7401E
Fan system, Fan motor
014L0174
SGP 16 N, Sight glass, Flare, 16.00 mm, Flare, 16.00 mm
023Z5045
Hermetic filter drier, DML, 16 cu.in., Steel
061F6067
Cartridge pressure switch, ACB, 26.50 bar, 20.50 bar
Convenience Store_CU Brochure Optyma™ Slim Pack - 60Hz & Optyma™ INVERTER – 50Hz / 60Hz Instructions - Optyma™ Slim Pack OP-HPMP/HPZP/HPUS/LPZP/LPZS - LAM Condensers HPZP050 & HPZP064 & HPMP050 & HPMP064 & LPUS013 & LPUS015 & LPUS018 & HPUS026 & HPUS030 & HPUS038 D20 HPZP050 & HPZP064 & HPMP050 & HPMP064 & LPUS013 & LPUS015 & LPUS018 & HPUS026 & HPUS030 & HPUS038 D20 HPUS026 HPUS030 HPUS038 HPMP/HPZP050 HPMP/HPZP064 D20 Optyma Slim pack LAM family HPZP050 & HPZP064 & HPMP050 & HPMP064 & LPUS013 & LPUS015 & LPUS018 & HPUS026 & HPUS030 & HPUS038 D20
