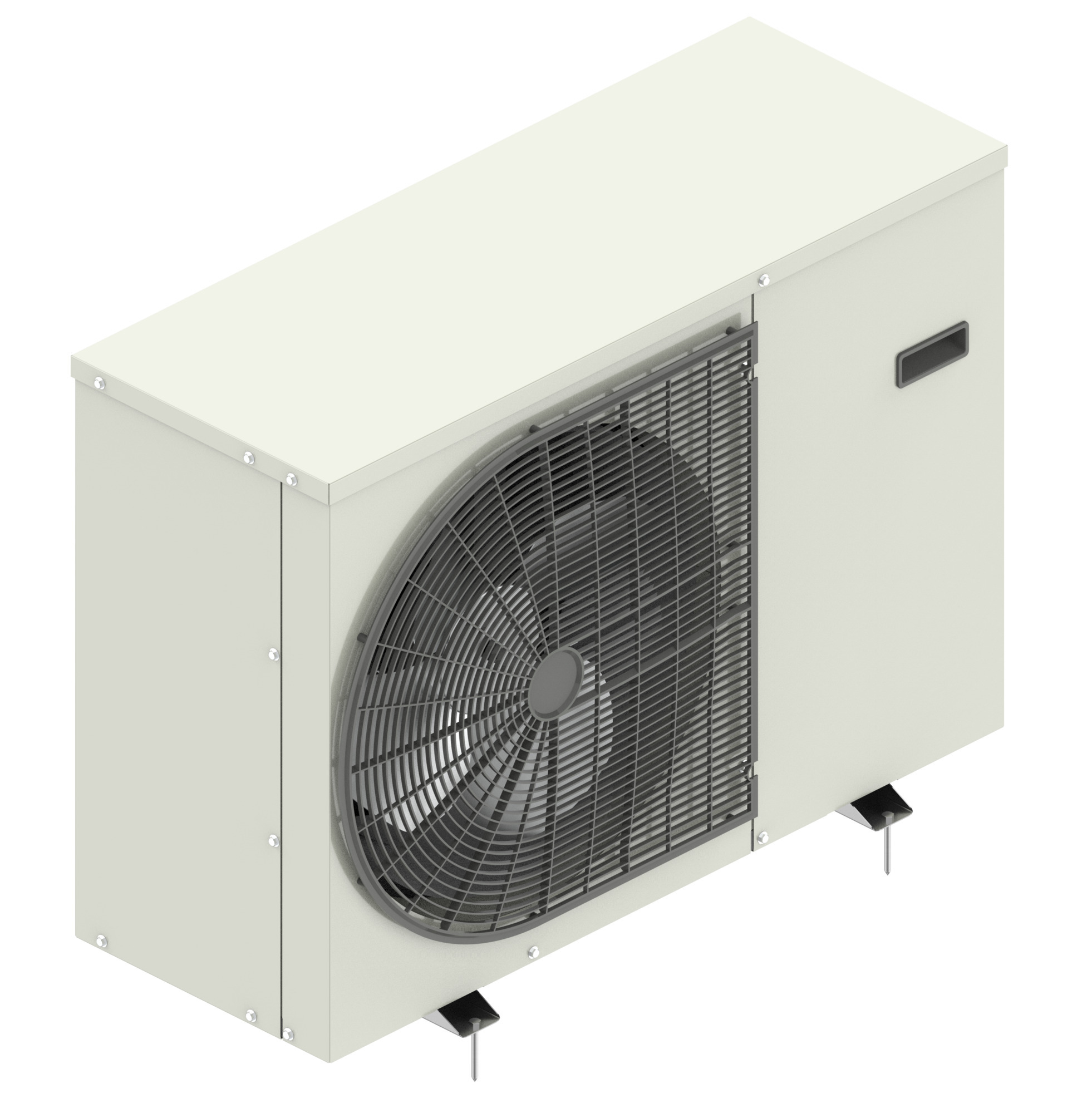

115F0625

Part Number: 115F0625
115F0625
Manufacturer
Danfoss
Part number
115F0625
Category

Product Information

Extended Description

115F0625 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A, Compressor power supply [V]: 220/3/60
Gross weight
69 Kilogram
Net weight
60 Kilogram
Air flow @ 60Hz [mÂł/h]
3600 mÂł/h
Applications
LBP
Capacity control
Fixed speed
Compressor model
NTZ068-3
Compressor power supply [V]
220/3/60
Condenser type
C3
Contain batteries
No
Description
LPZP068D20Q
Electrical code
Q
Family
Optyma™ Slim Pack
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
0.96 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
130 W
Fan power output @ 60Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
LPZP068D20Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R404A,R452A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim Pack D20
Version
D20
118U3985E
Fan system, Fan grill
120Z0638
Lubricant, 175PZ
193U0590E
Condenser, C2
191U13942E
Fan system, Fan blade
119-7401E
Fan system, Fan motor
014L0172
SGP 10 N, Sight glass, Flare, 10.00 mm, Flare, 10.00 mm
023Z5040
Hermetic filter drier, DML, 08 cu.in., Steel
061F6067
Cartridge pressure switch, ACB, 26.50 bar, 20.50 bar
Convenience Store_CU Brochure Optyma™ Slim Pack - 60Hz & Optyma™ INVERTER – 50Hz / 60Hz Instructions - Optyma™ Slim Pack OP-HPMP/HPZP/HPUS/LPZP/LPZS - LAM Condensers HPZP019 & HPZP022 & HPZP028 & LPZP048 & LPZP068 & HPMP019 & HPMP022 & HPMP028 & HPUS015 D20 HPZP019 & HPZP022 & HPZP028 & LPZP048 & LPZP068 & HPMP019 & HPMP022 & HPMP028 & HPUS015 D20 LPZP048 LPZP068 D20 Optyma Slim pack LAM family HPZP019 & HPZP022 & HPZP028 & LPZP048 & LPZP068 & HPMP019 & HPMP022 & HPMP028 & HPUS015 D20
