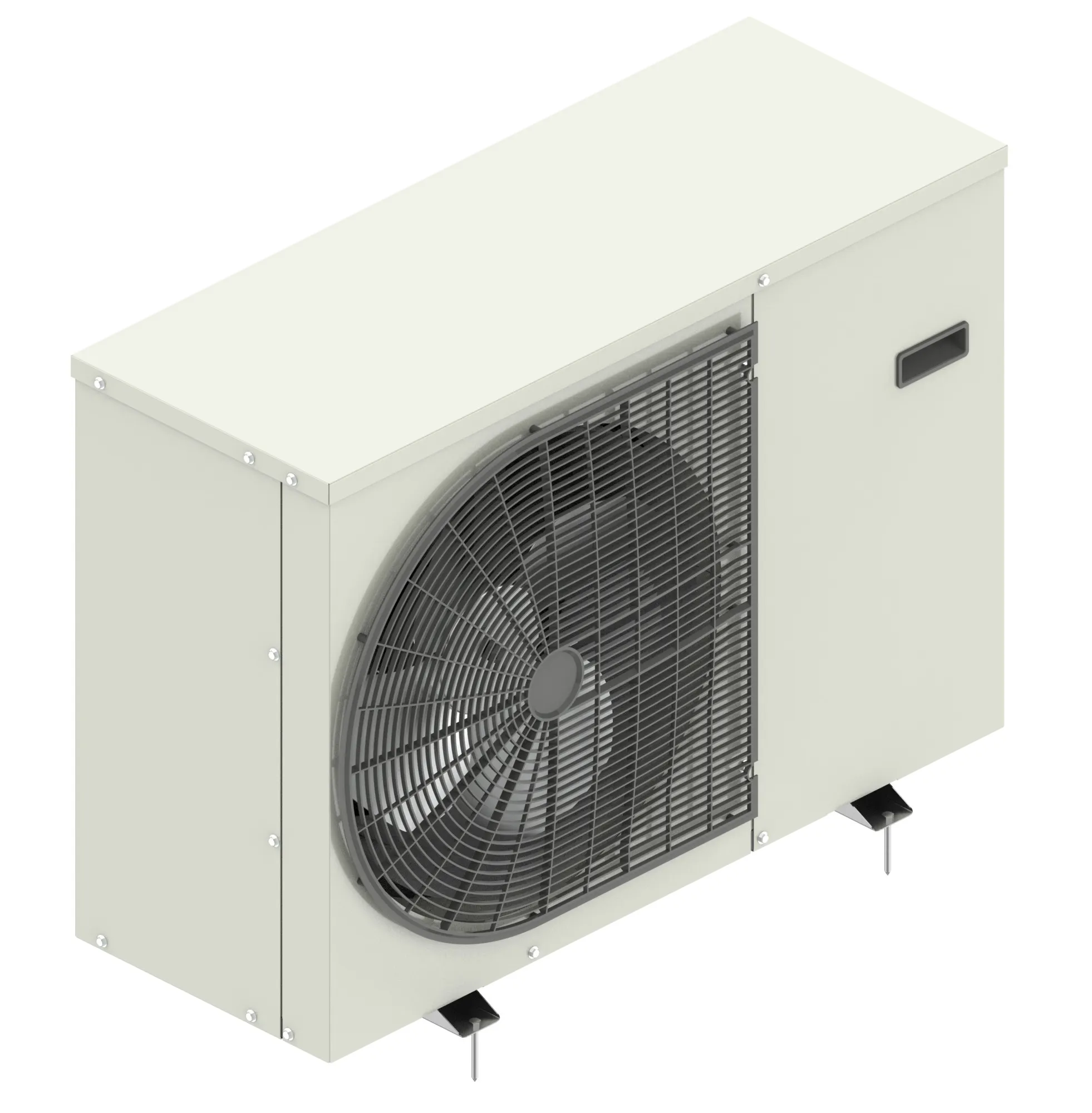

115F0633

Part Number: 115F0633
115F0633
Manufacturer
Danfoss
Part number
115F0633
Category

Product Information

Extended Description

115F0633 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R22, Compressor power supply [V]: 220/1/60
Gross weight
69 Kilogram
Net weight
59 Kilogram
Air flow @ 60Hz [mÂł/h]
3600 mÂł/h
Applications
MBP
Capacity control
Fixed speed
Compressor model
MT28-1VM
Compressor power supply [V]
220/1/60
Condenser type
C3
Contain batteries
No
Description
HPMP028D20N
Electrical code
N
Family
Optyma™ Slim Pack
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
0.96 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
130 W
Fan power output @ 60Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
HPMP028D20N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R22
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim Pack D20
Version
D20
118U3985E
Fan system, Fan grill
191U13942E
Fan system, Fan blade
119-8453A
Electrical component, Starting relay
193U0590E
Condenser, C2
7754001
Lubricant, 160P
MT28-1VI
Reciprocating compressor, MT28JE1RVE
119-7401E
Fan system, Fan motor
014L0172
SGP 10 N, Sight glass, Flare, 10.00 mm, Flare, 10.00 mm
023Z5040
Hermetic filter drier, DML, 08 cu.in., Steel
061F6067
Cartridge pressure switch, ACB, 26.50 bar, 20.50 bar
Convenience Store_CU Brochure Optyma™ Slim Pack - 60Hz & Optyma™ INVERTER – 50Hz / 60Hz Instructions - Optyma™ Slim Pack OP-HPMP/HPZP/HPUS/LPZP/LPZS - LAM Condensers HPZP019 & HPZP022 & HPZP028 & LPZP048 & LPZP068 & HPMP019 & HPMP022 & HPMP028 & HPUS015 D20 HPZP019 & HPZP022 & HPZP028 & LPZP048 & LPZP068 & HPMP019 & HPMP022 & HPMP028 & HPUS015 D20 HPUS015 HPMP/HPZP019 HPMP/HPZP022 HPMP/HPZP028 D20 Optyma Slim pack LAM family HPZP019 & HPZP022 & HPZP028 & LPZP048 & LPZP068 & HPMP019 & HPMP022 & HPMP028 & HPUS015 D20
