115F0637

Part Number: 115F0637
115F0637
Manufacturer
Danfoss
Part number
115F0637
Category

Product Information

Extended Description

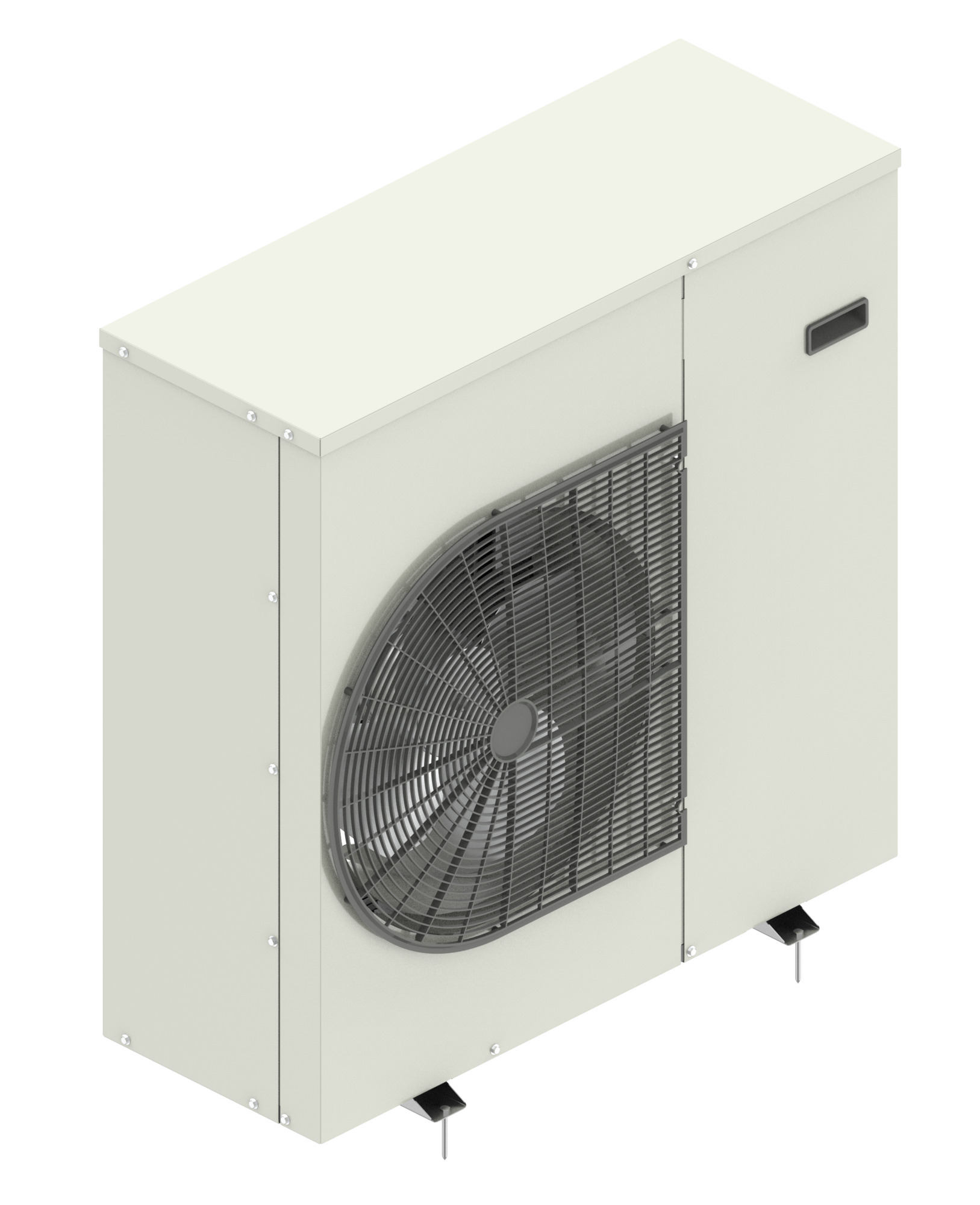

115F0637 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R22, Compressor power supply [V]: 220/3/60
Gross weight
80 Kilogram
Net weight
70 Kilogram
Volume
0.42 Cubic meter
Air flow @ 60Hz [mÂł/h]
3600 mÂł/h
Applications
MBP
Capacity control
Fixed speed
Compressor model
MT36-3VM
Compressor power supply [V]
220/3/60
Condenser type
C3
Contain batteries
No
Description
HPMP036D20Q
Electrical code
Q
Family
Optyma™ Slim Pack
Fan blade size [mm]
450 mm
Fan current @ 60Hz [A]
0.96 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
130 W
Fan power output @ 60Hz [W]
130 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
HPMP036D20Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R22
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ Slim Pack D20
Version
D20
191U13942E
Fan system, Fan blade
118U3985E
Fan system, Fan grill
7754001
Lubricant, 160P
119-7401E
Fan system, Fan motor
193U0591E
Condenser, C3
MT36-3VI
Reciprocating compressor, MT36JG3FVE
014L0173
SGP 12 N, Sight glass, Flare, 12.00 mm, Flare, 12.00 mm
023Z5041
Hermetic filter drier, DML, 08 cu.in., Steel
061F6067
Cartridge pressure switch, ACB, 26.50 bar, 20.50 bar
Convenience Store_CU Brochure Optyma™ Slim Pack - 60Hz & Optyma™ INVERTER – 50Hz / 60Hz Instructions - Optyma™ Slim Pack OP-HPMP/HPZP/HPUS/LPZP/LPZS - LAM Condensers HPZP036 & HPZP040 & HPMP036 & HPMP040 & HPUS019 & HPUS021 D20 HPZP036 & HPZP040 & HPMP036 & HPMP040 & HPUS019 & HPUS021 D20 HPUS021 HPMP/HPZP036 HPMP/HPZP040 D20 Optyma Slim pack LAM family HPZP036 & HPZP040 & HPMP036 & HPMP040 & HPUS019 & HPUS021 D20
