115F0649
Part Number: 115F0649
Product Information
Extended Description

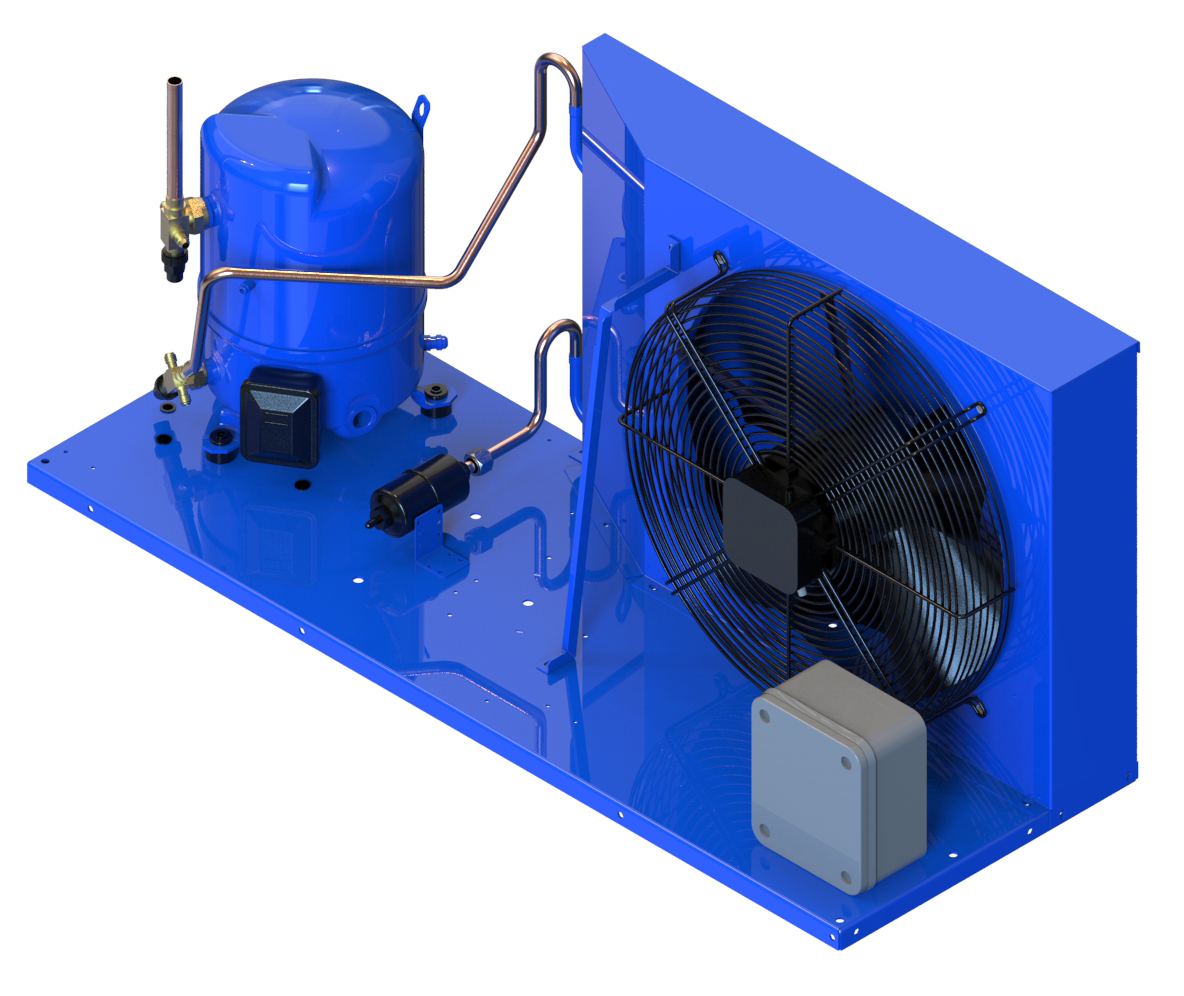

115F0649 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 380/3/60
Gross weight
77 Kilogram
Net weight
65 Kilogram
Air flow @ 60Hz [mÂł/h]
4800 mÂł/h
Applications
MBP,HBP
Compressor power supply [V]
380/3/60
Condenser type
G8
Contain batteries
No
Description
HJZ036D36V
Electrical code
V
Family
Optyma™
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
400 V
Low value of nominal voltage at 60Hz [V]
380 V
Model number
HJZ036D36V
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Type
Optyma™ D36
Version
D36
118U601108
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006110
Tank, Accumulator
191U007710
Tank, Oil separator
191U0643E
Condenser, G8
191U127467
Connector, Kit housing
191U9906
Miscellaneous, Filter
6804501V06
Connector, Service valve
6804502V09
Connector, Service valve
